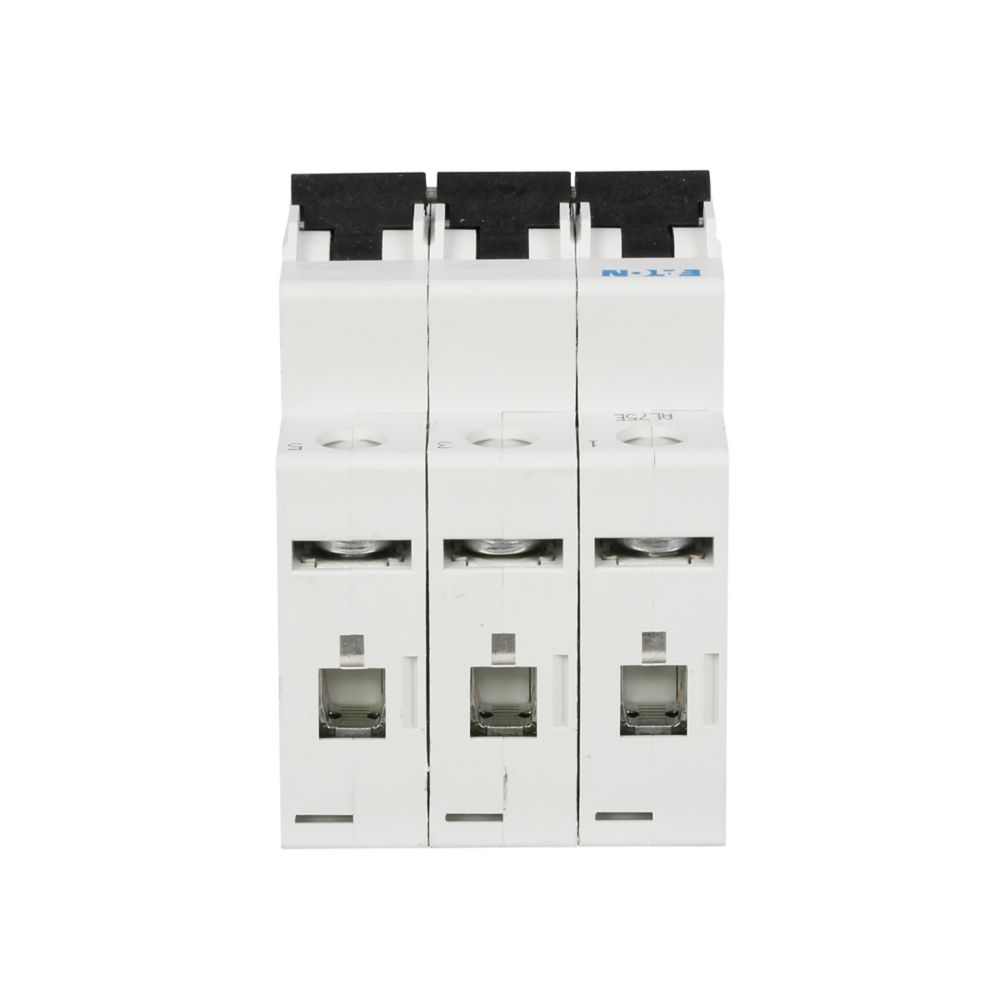

Eaton FAZ-C50/3 Circuit Breaker – 50A – 3-Pole – Voltage Not Specified – 15kAIC – DIN Rail – FAZ Series

The Eaton FAZ-C50/3 is a 50A, 3-pole industrial miniature circuit breaker (supplementary protector) from the Eaton FAZ Series. It is designed for applications where medium levels of inrush current are expected.

The breaker features a C-curve trip characteristic, a 5–10× In magnetic trip range, and a 15kA interrupting rating. It operates at 50–60 Hz and uses standard terminals. The supplied information does not specify the voltage rating or mounting type.

Specifications:

• Manufacturer: Eaton / Moeller
• Product Type: Industrial Miniature Circuit Breaker / Supplementary Protector
• Catalog No.: FAZ-C50/3
• Product Family: FAZ
• Series: FAZ
• Current Rating: 50A
• Number of Poles: 3-Pole
• Voltage Rating: Not Specified
• Interrupting Rating: 15kAIC
• Trip Curve: C Curve
• Magnetic Trip Range: 5–10× In
• Inrush Current Application: Medium Levels of Inrush Current
• Frequency: 50–60 Hz
• Terminal Type: Standard Terminals
• Mounting Type: Not Specified
• Application: Supplementary Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FAZ-C50/3
• Catalog Number: FAZ-C50/3
• Model: FAZ-C50/3
• Brand: Eaton / Moeller
• Manufacturer: Eaton
• Product Type: Industrial Miniature Circuit Breaker / Supplementary Protector
• Product Family: FAZ
• Series: FAZ
• Breaker Configuration: 3-Pole, 50A
• UPC:4015082788780

Compatibility:

Designed for use as a supplementary protector in compatible electrical control and distribution applications where medium inrush currents are expected. The FAZ-C50/3 uses a C-curve characteristic and standard terminals.

Always verify the specific equipment, system voltage, fault current, pole configuration, mounting requirements, terminal arrangement, and applicable supplementary-protection requirements before installation.

Certifications:

• UL 1077
• 15kAIC Interrupting Rating
• 50A Rated
• 3-Pole
• C-Curve Trip Characteristic
