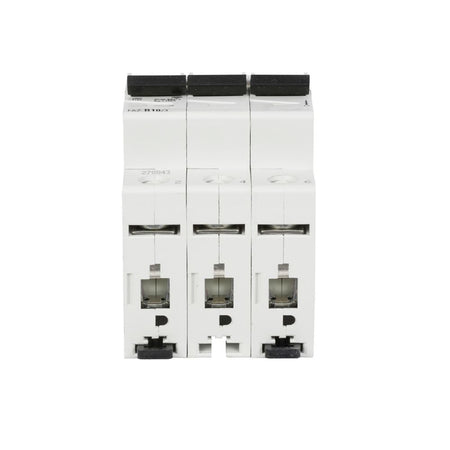

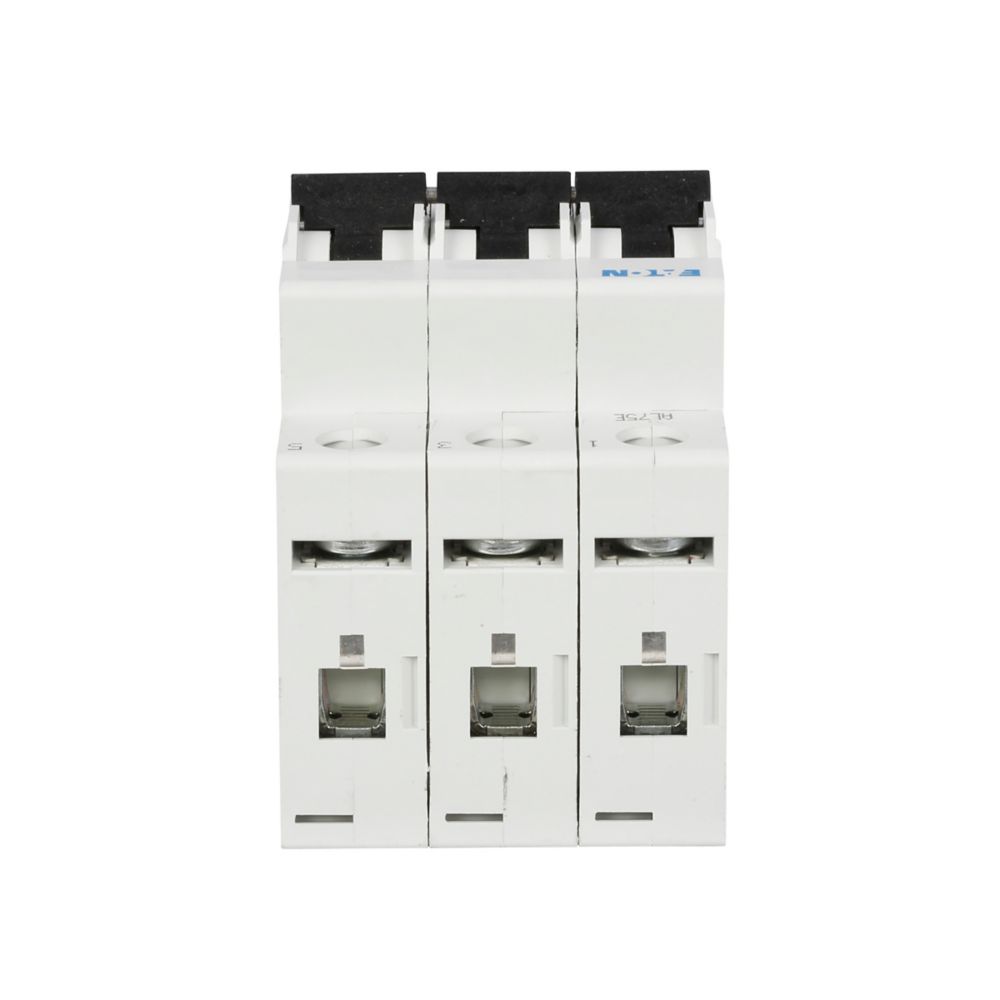

Eaton FAZ-D1/3 1 Amp Supplementary Circuit Protector – 3 Pole – 15 kAIC – D Curve – FAZ Series

The Eaton FAZ-D1/3 is a 1 Amp industrial miniature circuit breaker and supplementary protector from the Eaton Moeller FAZ Series. Designed for applications with high inrush current, it features a D-curve tripping characteristic and a 15 kA interrupting rating. This three-pole device operates at 50/60 Hz and is equipped with standard terminals.

Specifications

• Manufacturer: Eaton
• Brand: Eaton Moeller
• Product Type: Supplementary Circuit Protector
• Series: FAZ
• Catalog Number / MPN: FAZ-D1/3
• Primary Rating: 1 Amp
• Poles / Configuration: 3 Pole
• Interrupting Rating: 15 kAIC
• Trip Curve: D Curve
• Magnetic Trip Range: 10–20 × In
• Frequency: 50/60 Hz
• Terminals: Standard Terminals
• Application: High-Inrush-Current Loads

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton Moeller
• Catalog Number: FAZ-D1/3
• Series: FAZ
• Current Rating: 1 A
• Pole Count: 3 Pole
• Product Type: Industrial Miniature Circuit Breaker – Supplementary Protector
• Trip Curve: D Curve
• Interrupting Rating: 15 kAIC
• UPC:4015082788810

Compatibility

The Eaton FAZ-D1/3 is intended for compatible industrial supplementary protection applications requiring a three-pole device with a D-curve characteristic.

Certifications

• UL 1077
