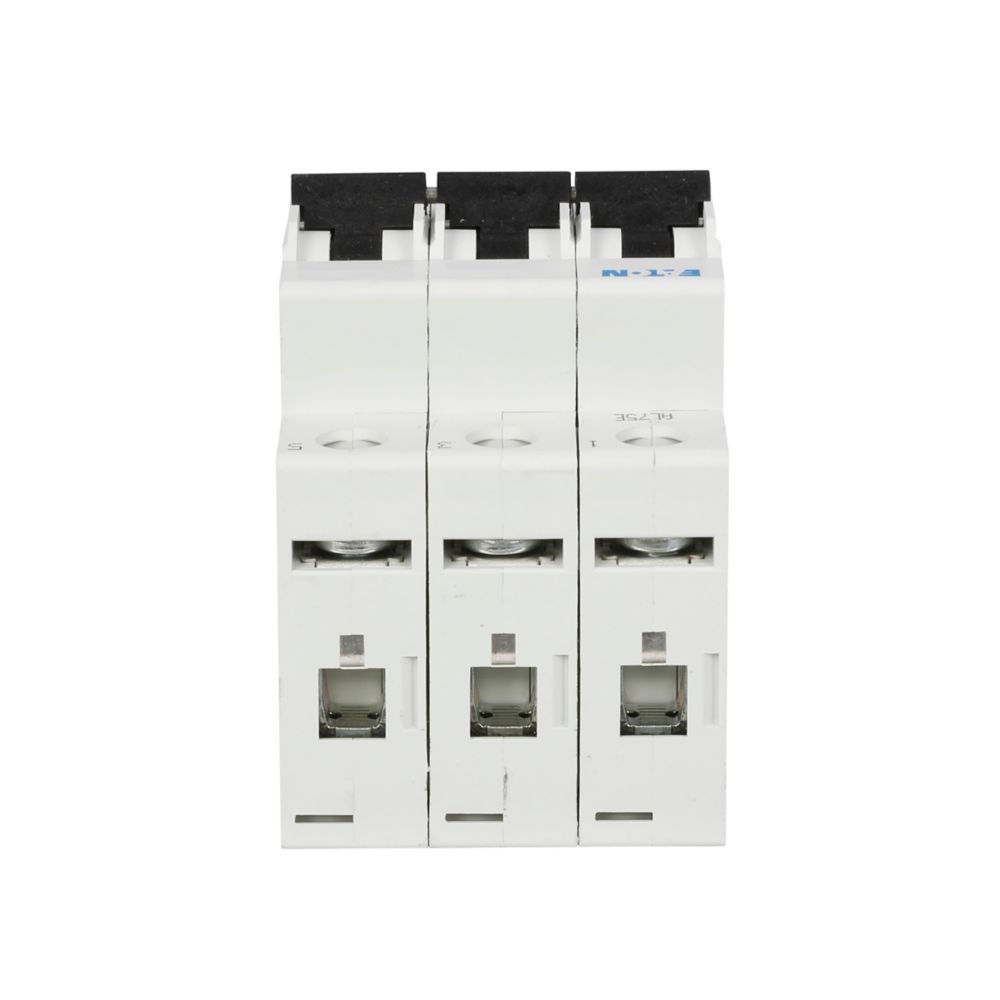

Eaton FAZ-D8/3 8 Amp Supplementary Circuit Breaker – 3 Pole – 15 kAIC – D Curve – FAZ Series

The Eaton FAZ-D8/3 is an 8 Amp, three-pole supplementary protector from the Eaton Moeller FAZ Series. It is an industrial miniature circuit breaker designed for supplementary protection where high levels of inrush current are expected. The breaker is rated at 15 kAIC, operates at 50–60 Hz, and features a D Curve trip characteristic with a 10–20X trip range and standard terminals.

Specifications

• Manufacturer: Eaton
• Brand: Moeller / Eaton
• Product Type: Supplementary Circuit Protector / Miniature Circuit Breaker
• Series: FAZ
• Catalog Number / MPN: FAZ-D8/3
• Primary Rating: 8 Amp
• Poles / Configuration: 3 Pole
• Frequency: 50–60 Hz
• Interrupting Rating: 15 kAIC
• Trip Curve: D Curve
• Trip Range: 10–20X
• Terminals: Standard Terminals
• Application: Industrial Supplementary Protection
• Application Condition: High Levels of Inrush Current Expected
• Standard: UL 1077

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Moeller / Eaton
• Catalog Number: FAZ-D8/3
• Series: FAZ
• Current Rating: 8 A
• Pole Count: 3 Pole
• Product Type: Supplementary Protector / Industrial Miniature Circuit Breaker
• Trip Curve: D Curve
• Trip Range: 10–20X
• Frequency: 50–60 Hz
• Terminals: Standard Terminals
• UPC: 4015082788919

Compatibility

The Eaton FAZ-D8/3 is intended for compatible Eaton Moeller FAZ Series supplementary protection applications, particularly circuits where high inrush current is expected. Verify the specific system requirements, mounting configuration, terminal requirements, and applicable protection standards before installation.

Certifications

• UL 1077 Listed
