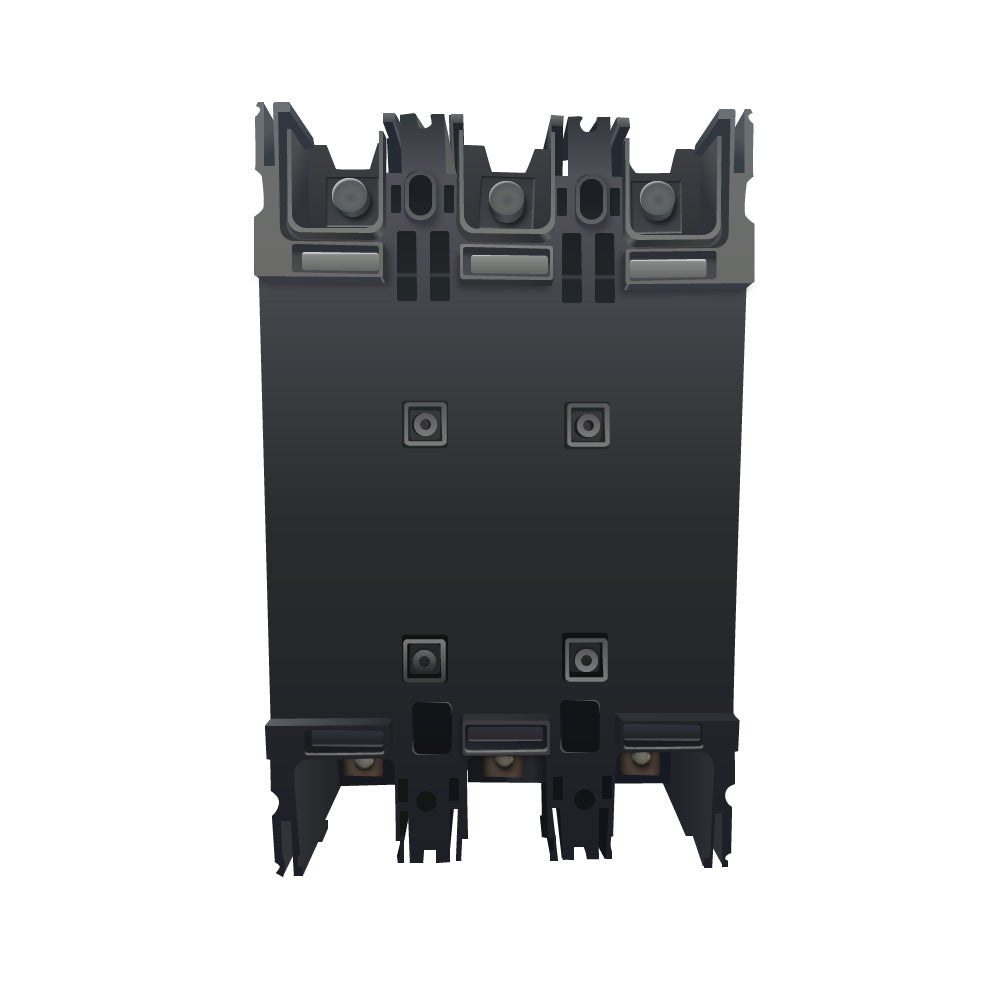

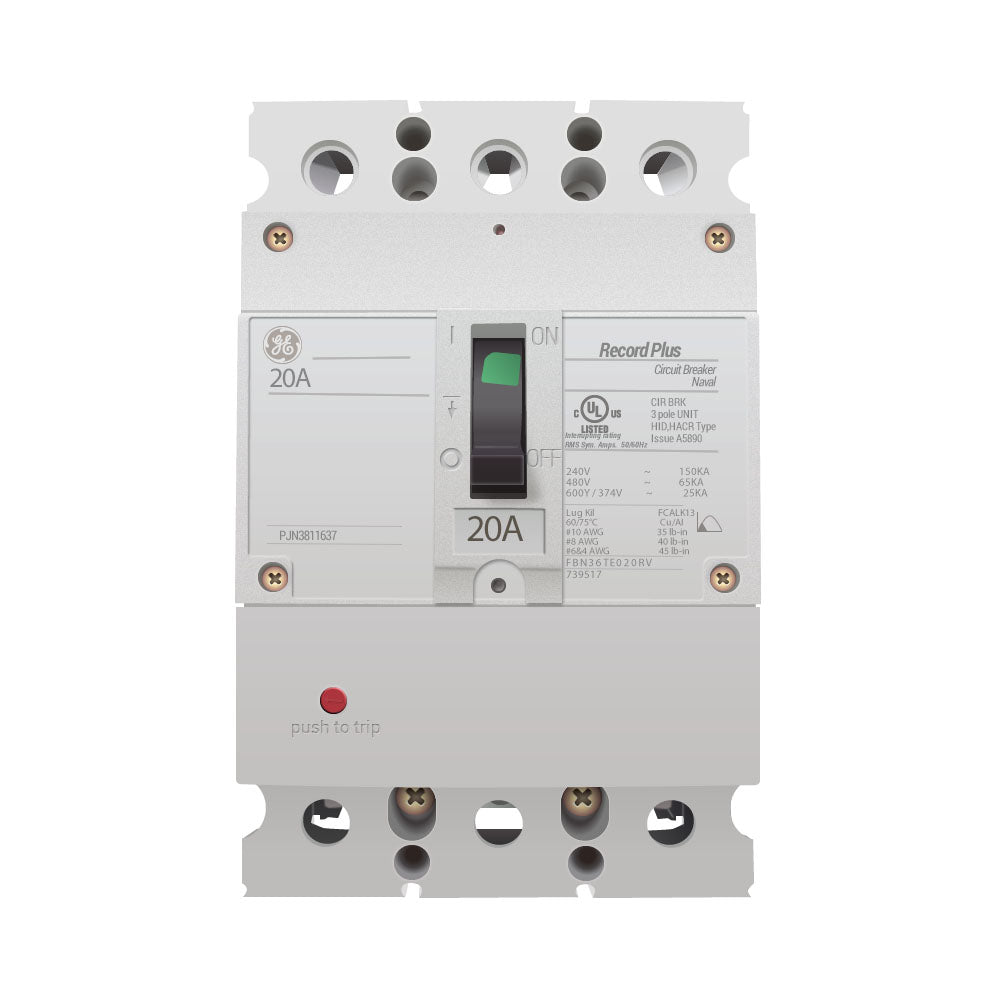

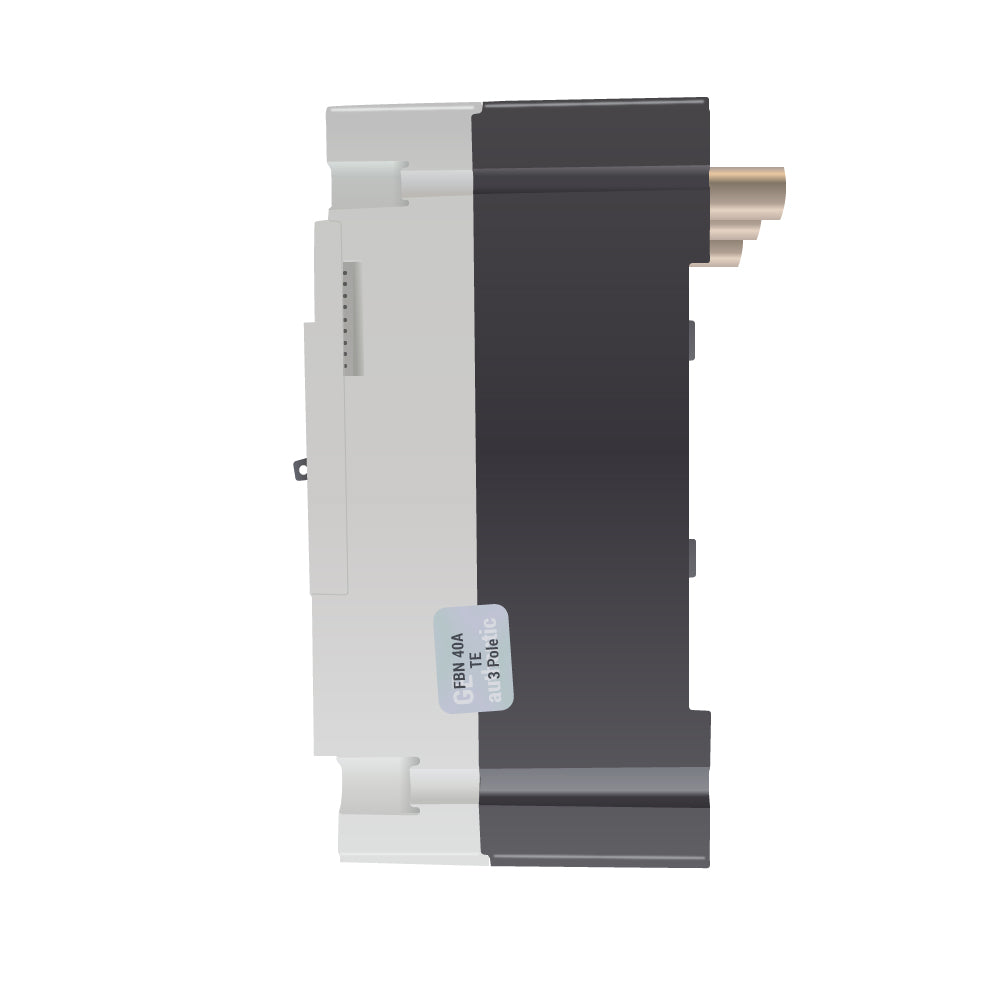

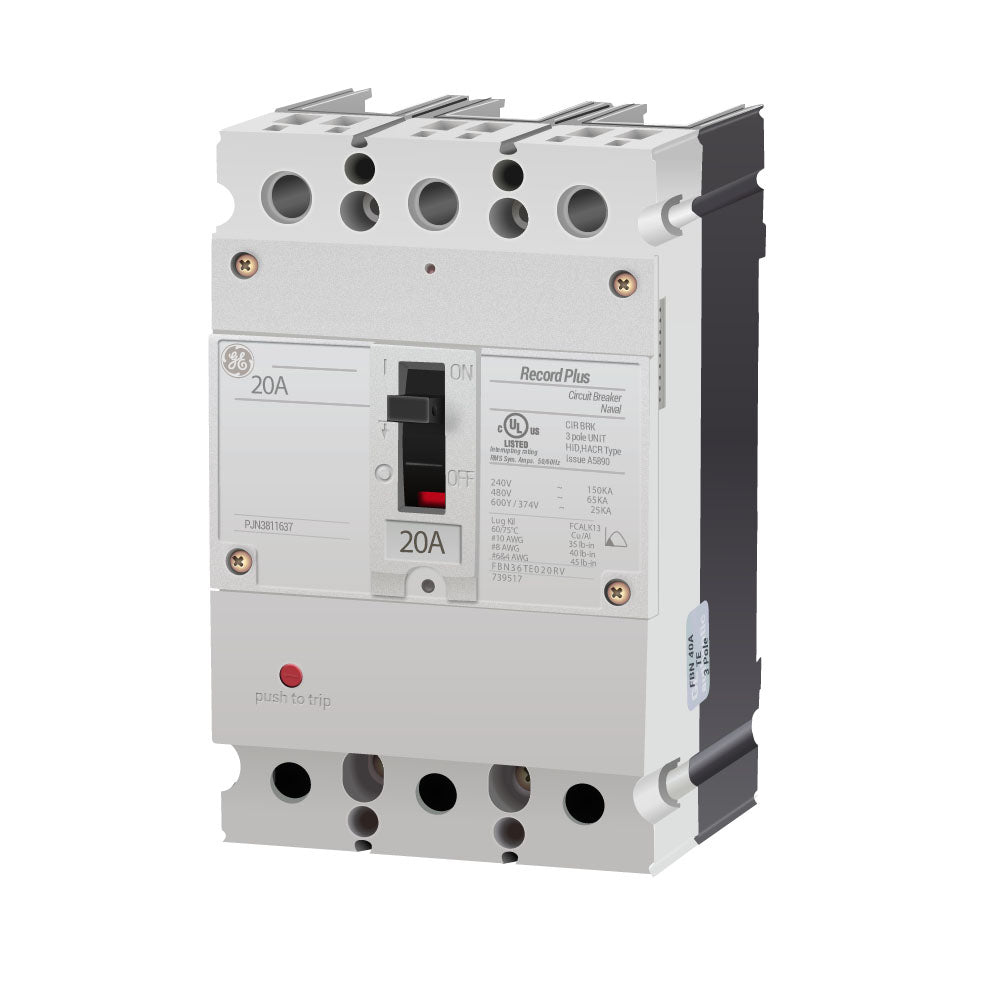

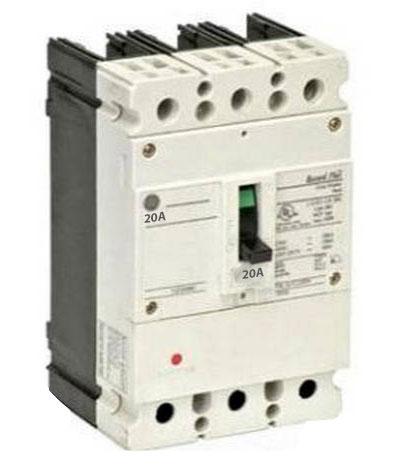

GE FBN36TE020RV Molded Case Circuit Breaker – 20A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Record Plus FBN Series

The GE FBN36TE020RV is a 20A, 3-pole, 3-phase molded case circuit breaker from the GE Record Plus Type FBN Series with an FB100 frame. It features fixed thermal-magnetic protection and is designed for compatible electrical distribution applications.

The FBN36TE020RV is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It uses a bolt-on configuration and includes load-side lug terminals and panel connections.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Record Plus
• Series: FBN
• Type: FBN
• Frame: FB100
• Catalog No.: FBN36TE020RV
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Fixed Thermal-Magnetic
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals and Panel Connections
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FBN36TE020RV
• Catalog Number: FBN36TE020RV
• Model: FBN36TE020RV
• Product Family: GE Record Plus Circuit Breakers
• Series: FBN
• Type: FBN
• Frame: FB100
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 20A
• UPC:783164395136

Compatibility:

Designed for use with compatible GE Record Plus FBN Series electrical distribution equipment that accepts FBN Series bolt-on molded case circuit breakers. The FBN36TE020RV provides 20A, 3-pole, fixed thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker features a 65kA interrupting rating at 480V, high interrupting capacity, bolt-on mounting, and load-side lug terminals with panel connections. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, frame requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
