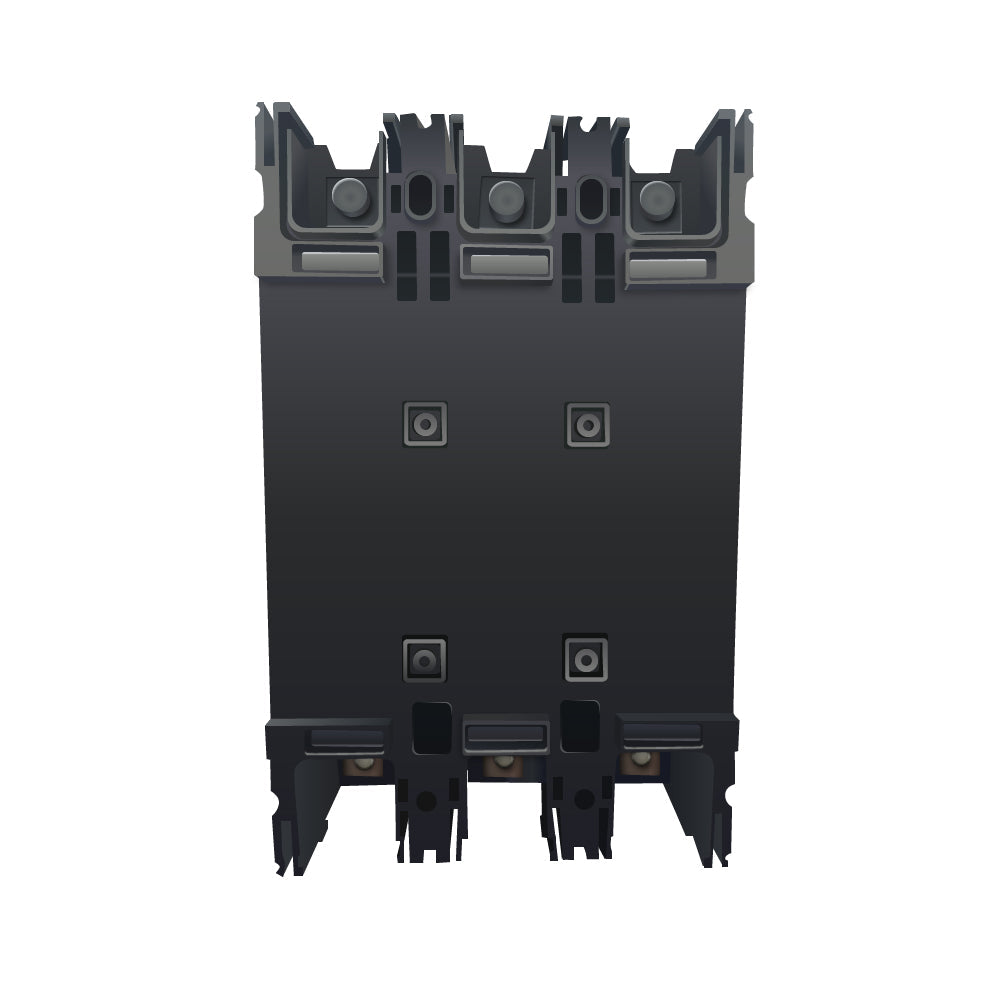

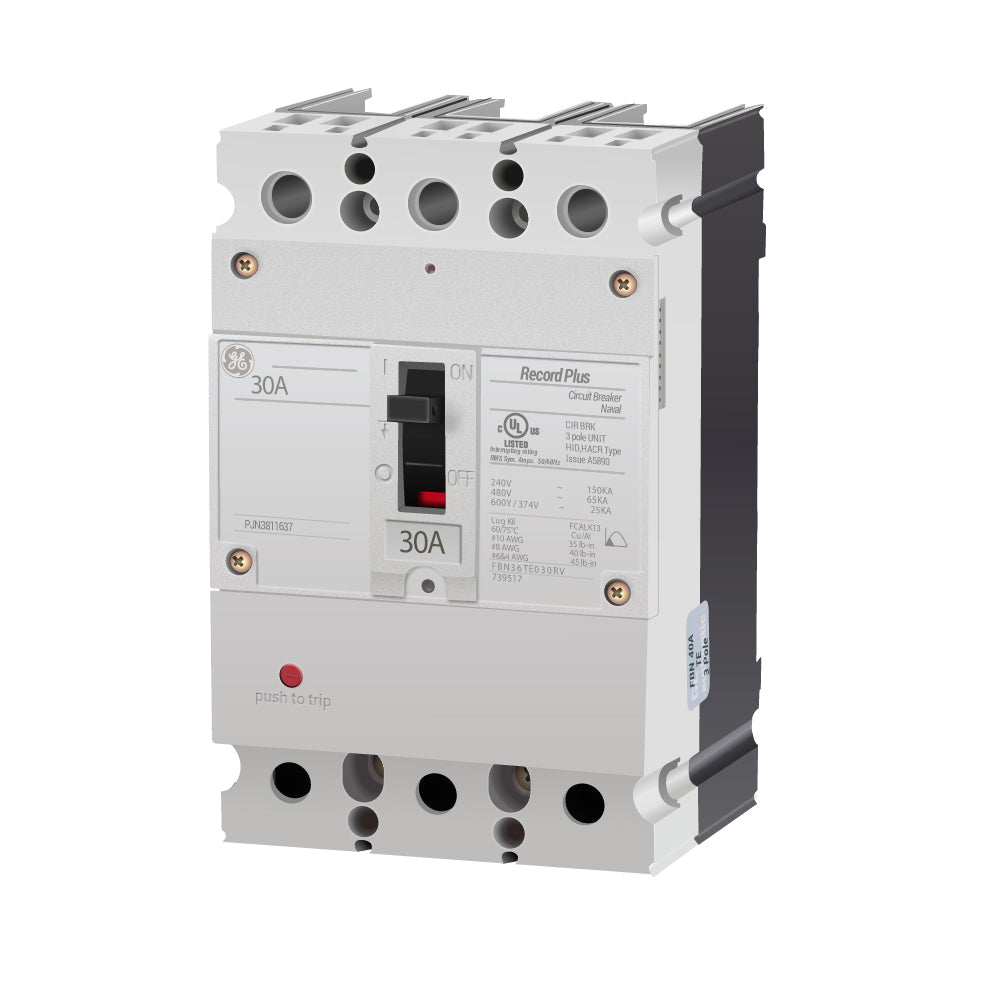

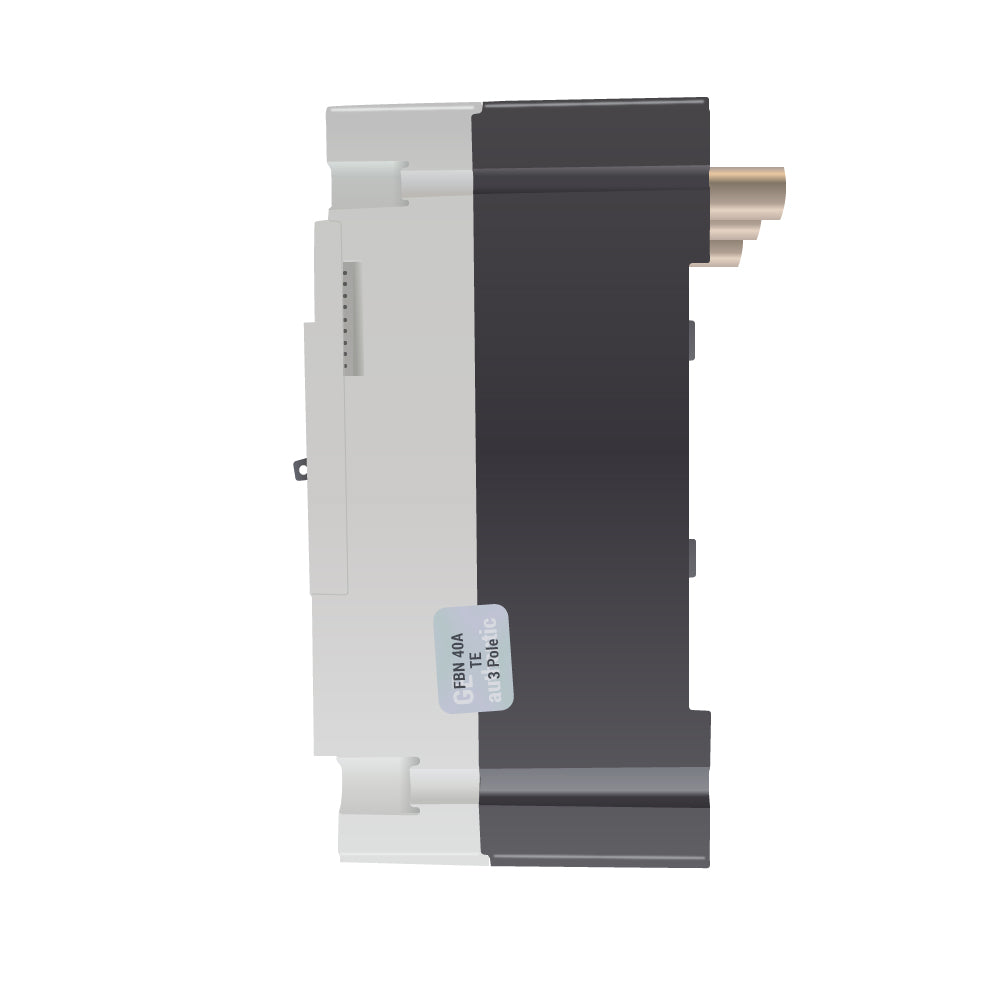

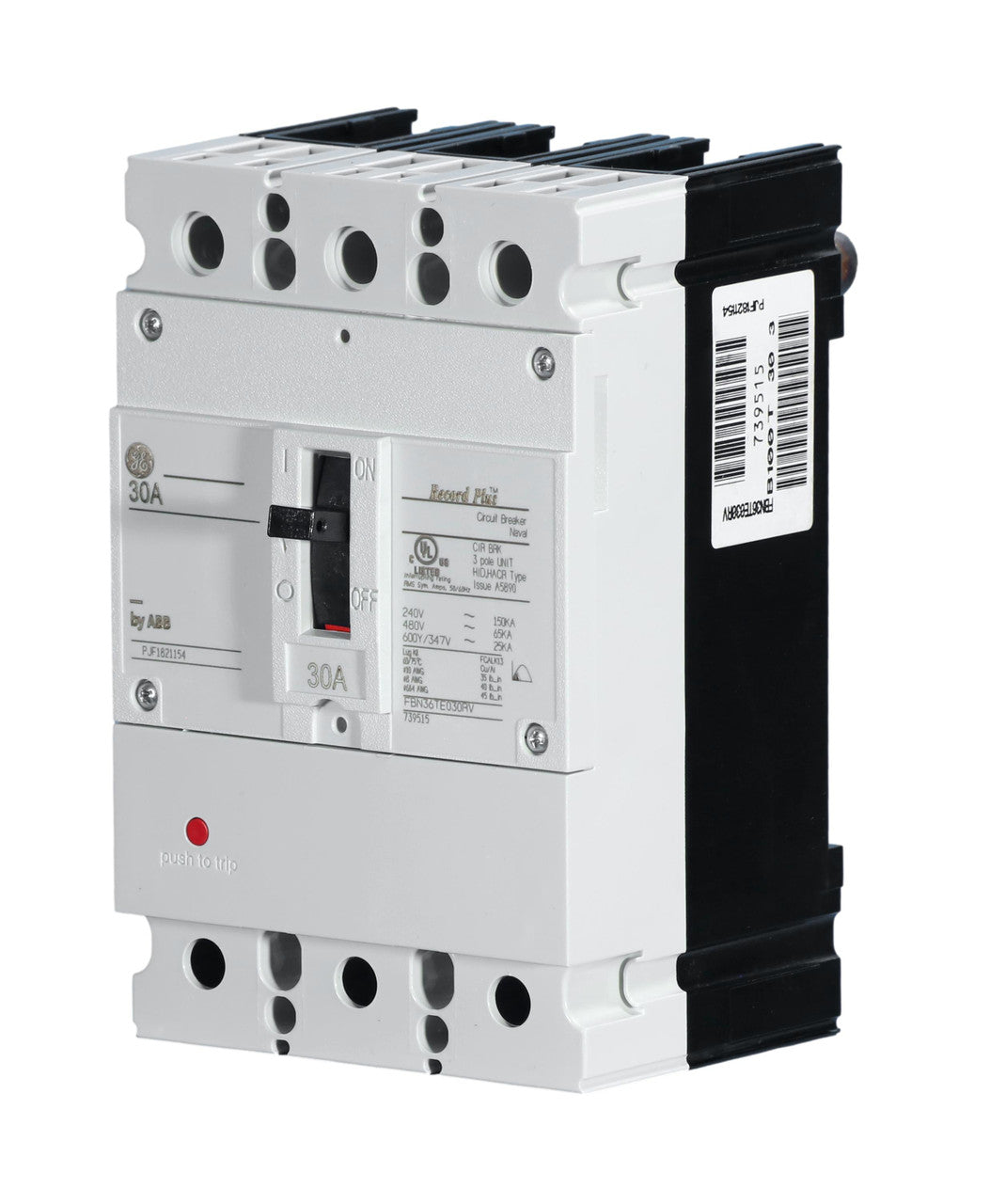

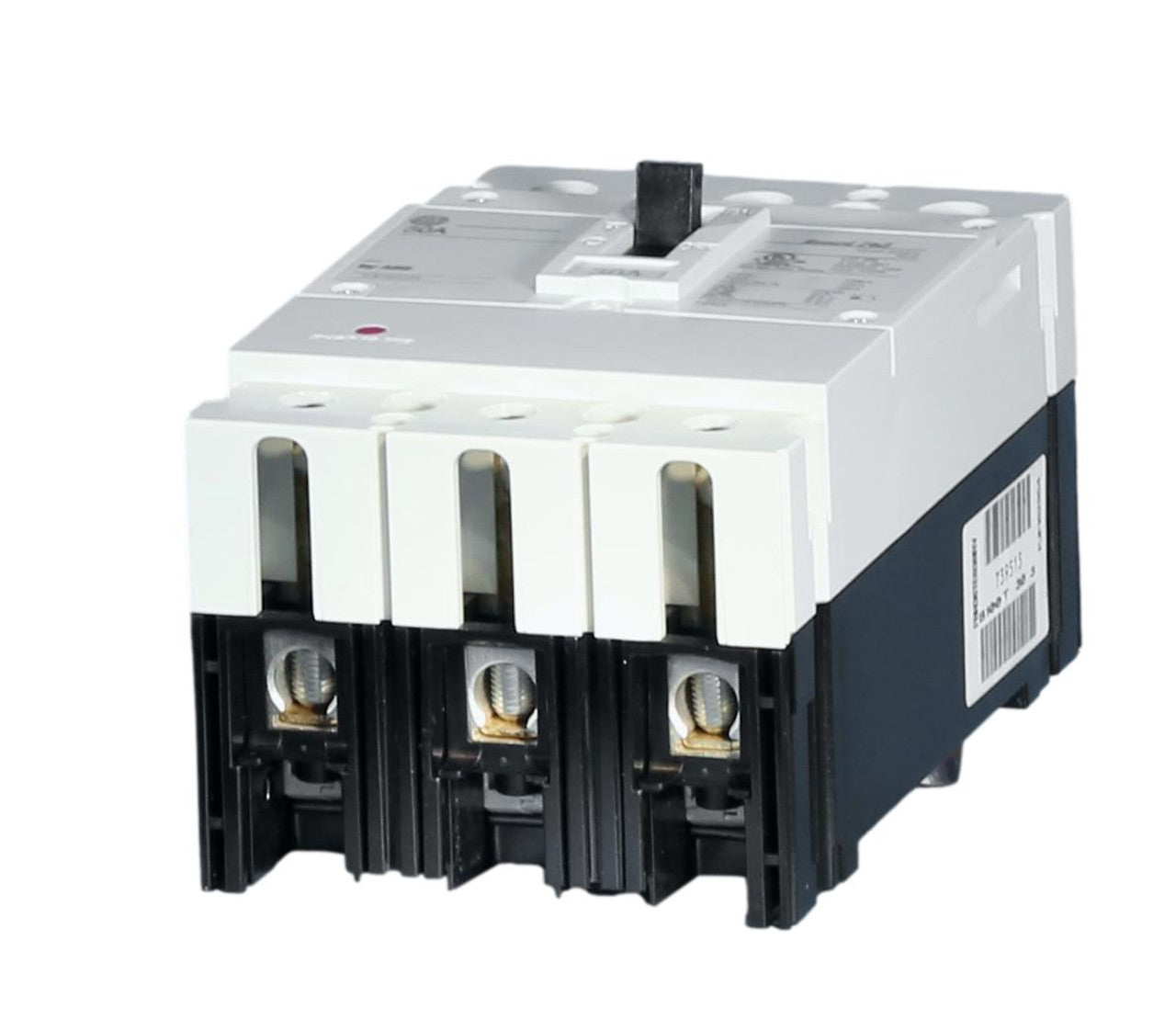

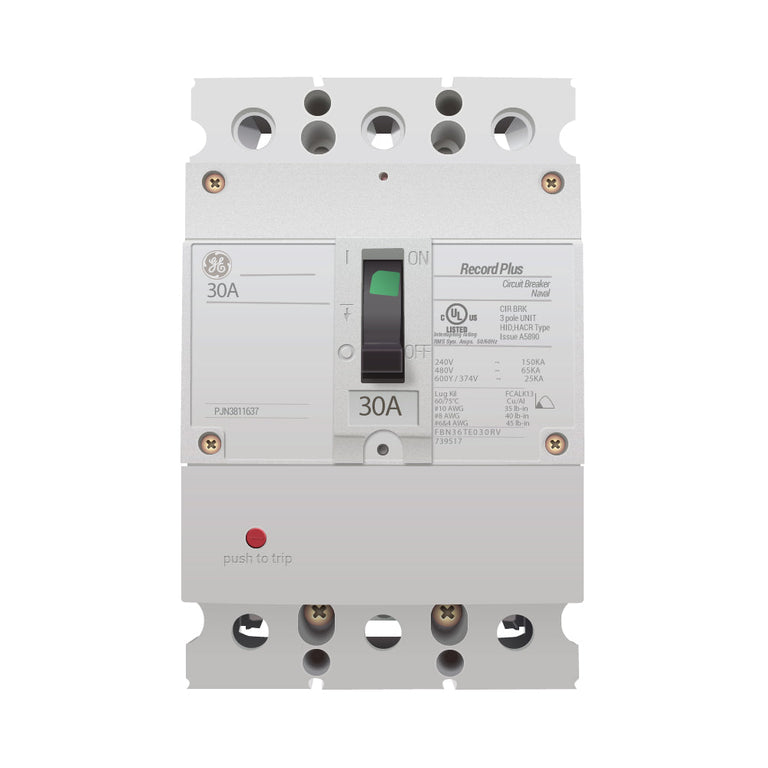

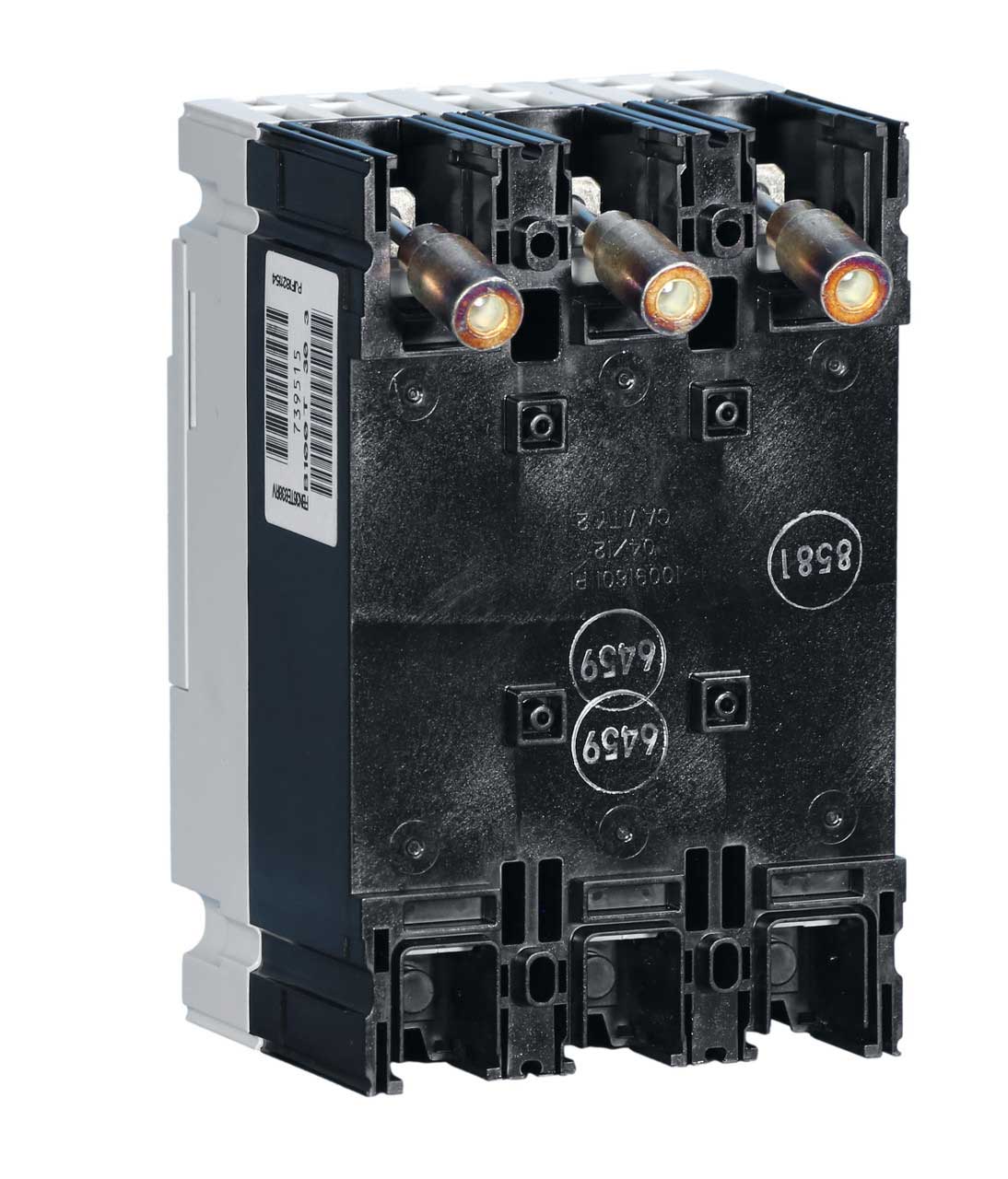

GE FBN36TE030RV Molded Case Circuit Breaker – 30A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Record Plus FBN Series

The GE FBN36TE030RV is a 30A, 3-pole, 3-phase molded case circuit breaker from the GE Record Plus FBN Series with an FB100 frame. It is designed for compatible electrical distribution applications and provides high interrupting capacity.

The FBN36TE030RV is rated for 600V and provides a 65kA interrupting rating at 480V. It features a bolt-on mounting configuration, Long-Time and Instantaneous (LI) trip functions, and is supplied complete with load-side lug terminals and panel connections.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Record Plus
• Series: FBN
• Type: FBN
• Frame: FB100
• Catalog No.: FBN36TE030RV
• Current Rating: 30A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Connection: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Panel Connection: Included
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FBN36TE030RV
• Catalog Number: FBN36TE030RV
• Model: FBN36TE030RV
• Product Family: GE Record Plus Circuit Breakers
• Series: FBN
• Type: FBN
• Frame: FB100
• Brand: GE
• Manufacturer: General Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 30A
• Rated Current: 30A
• Rated Voltage: 600V
• Trip Configuration: Long-Time and Instantaneous (LI)
• UPC:783164395150

Compatibility:

Designed for use with compatible GE Record Plus FBN Series / FB100 frame electrical distribution equipment that accepts FBN Series molded case circuit breakers. The FBN36TE030RV provides 30A, 3-pole protection for compatible 600V electrical distribution applications.

The breaker features high interrupting capacity, bolt-on mounting, Long-Time and Instantaneous (LI) trip functions, load-side lug terminals, and panel connections. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, frame compatibility, terminal arrangement, and installation requirements before installation.

Certifications:

• Record Plus FBN Series
• FB100 Frame
• 30A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 65kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Long-Time and Instantaneous (LI) Trip Functions
• Bolt-On Mounting
• Load-Side Lug Terminals
• Panel Connections Included
• Complete Breaker
