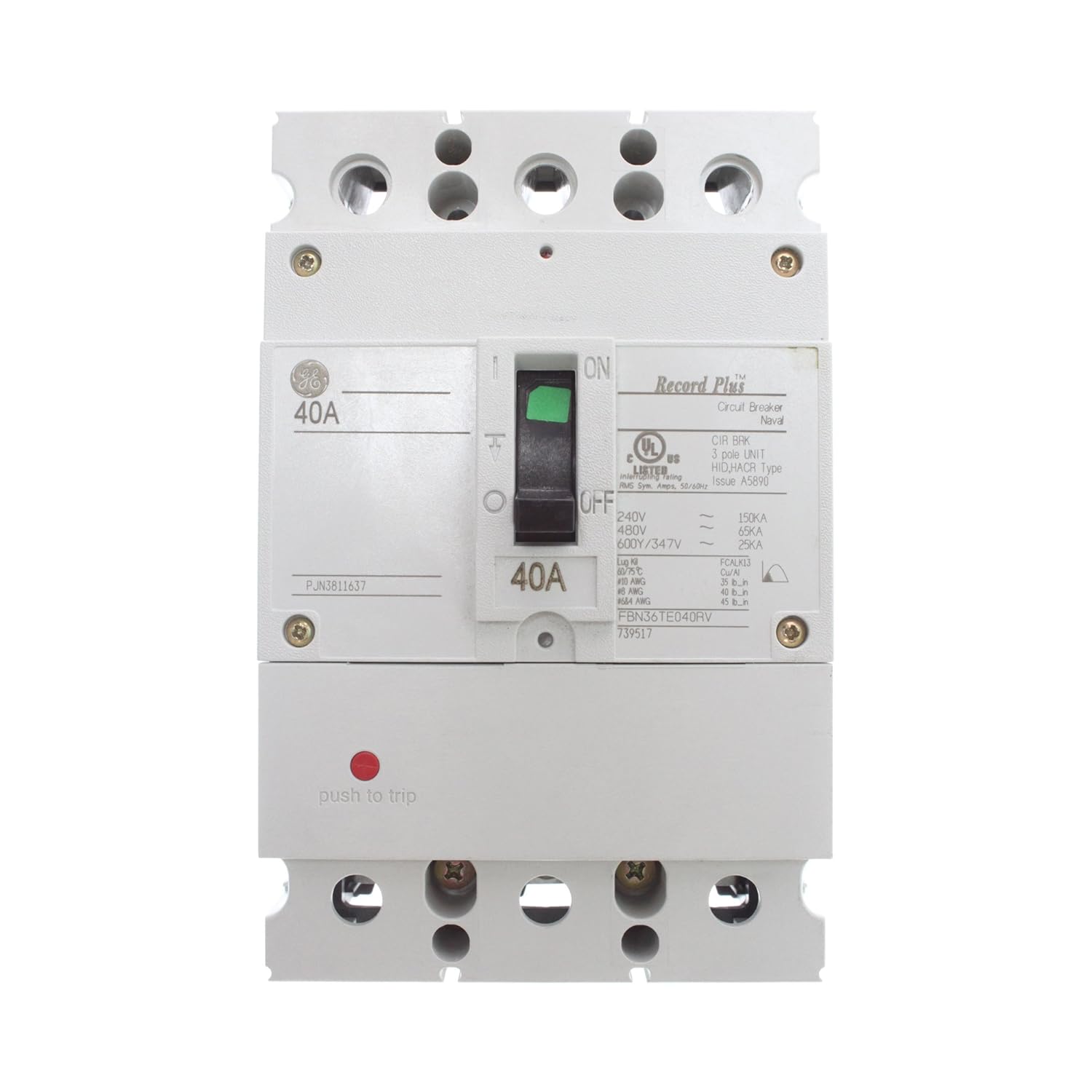

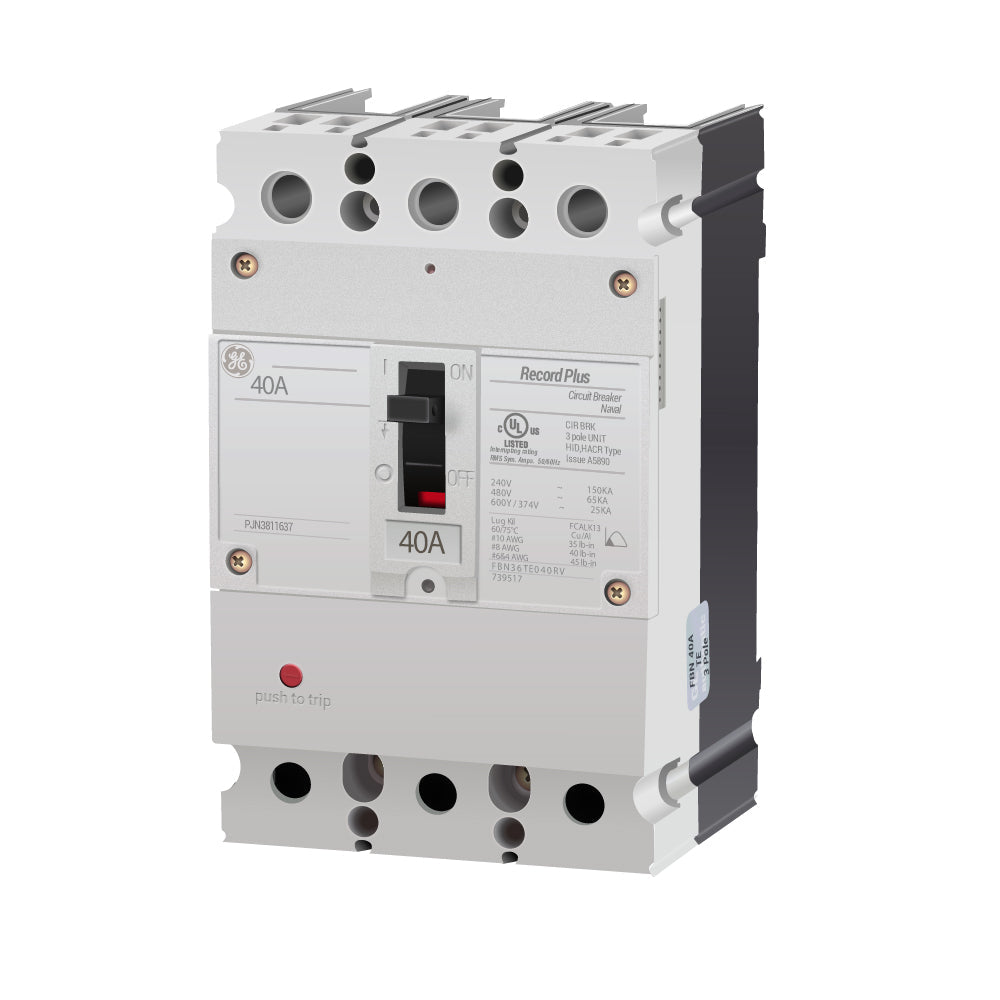

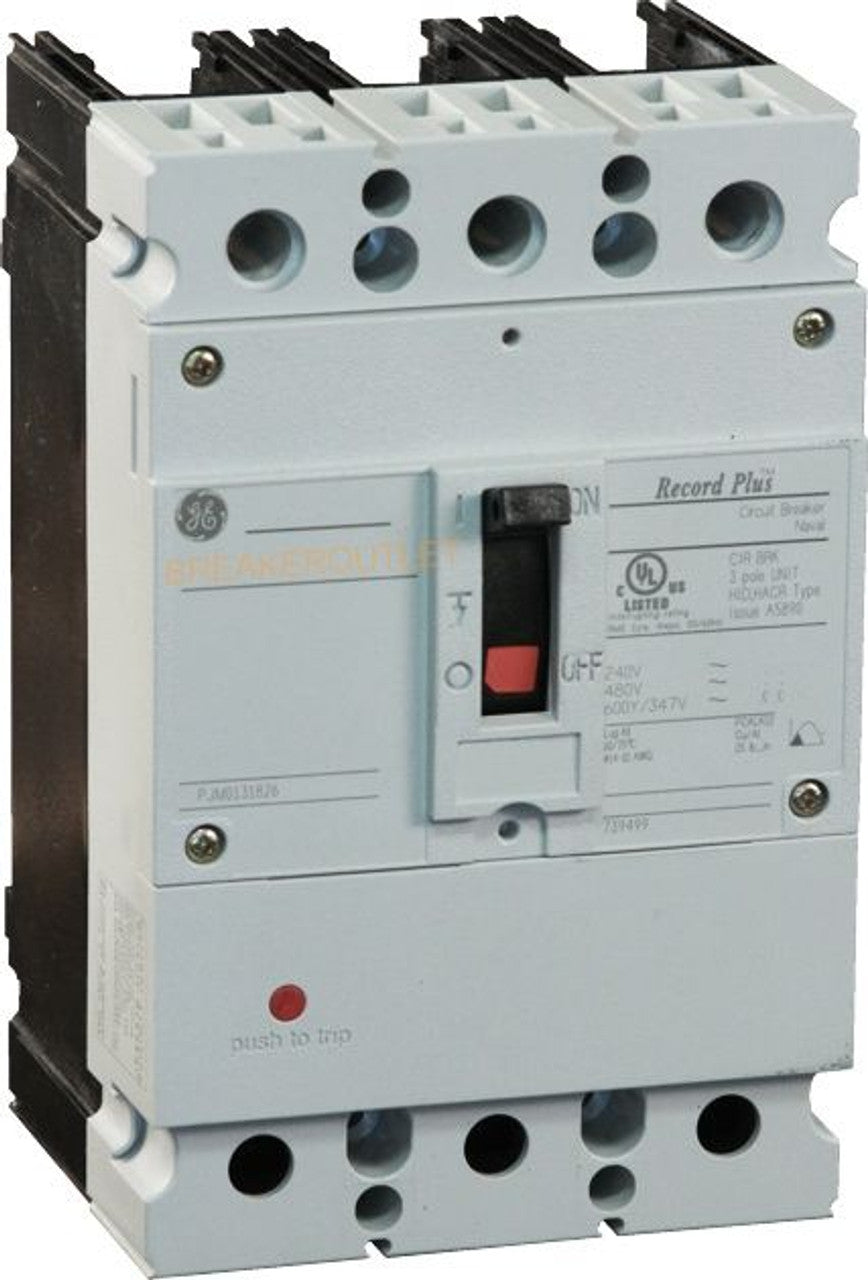

GE FBN36TE040RV Molded Case Circuit Breaker – 40A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Record Plus FBN Series

The GE FBN36TE040RV is a 40A, 3-pole, 3-phase molded case circuit breaker from the General Electric Record Plus FBN Series and FB100 frame. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The FBN36TE040RV is rated for 600V and provides a 65kA interrupting rating at 480V with high interrupting capacity. It uses a bolt-on connection and is supplied complete with load-side lug terminals and panel connections.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Record Plus
• Series: FBN
• Type: FBN
• Frame: FB100
• Catalog No.: FBN36TE040RV
• Current Rating: 40A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Not specified
• Mounting / Connection: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Panel Connections: Included
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: GE / General Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FBN36TE040RV
• Catalog Number: FBN36TE040RV
• Model: FBN36TE040RV
• Product Family: GE Record Plus Molded Case Circuit Breakers
• Series: FBN
• Type: FBN
• Frame: FB100
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 40A
• UPC:783164395174

Compatibility:

Designed for use with compatible GE Record Plus FB100 frame electrical distribution equipment that accepts FBN Series molded case circuit breakers. The FBN36TE040RV provides 40A, 3-pole thermal-magnetic protection for compatible 600V, 3-phase applications.

The breaker features Long-Time and Instantaneous (LI) trip functions, bolt-on mounting, load-side lug terminals, and panel connections.
