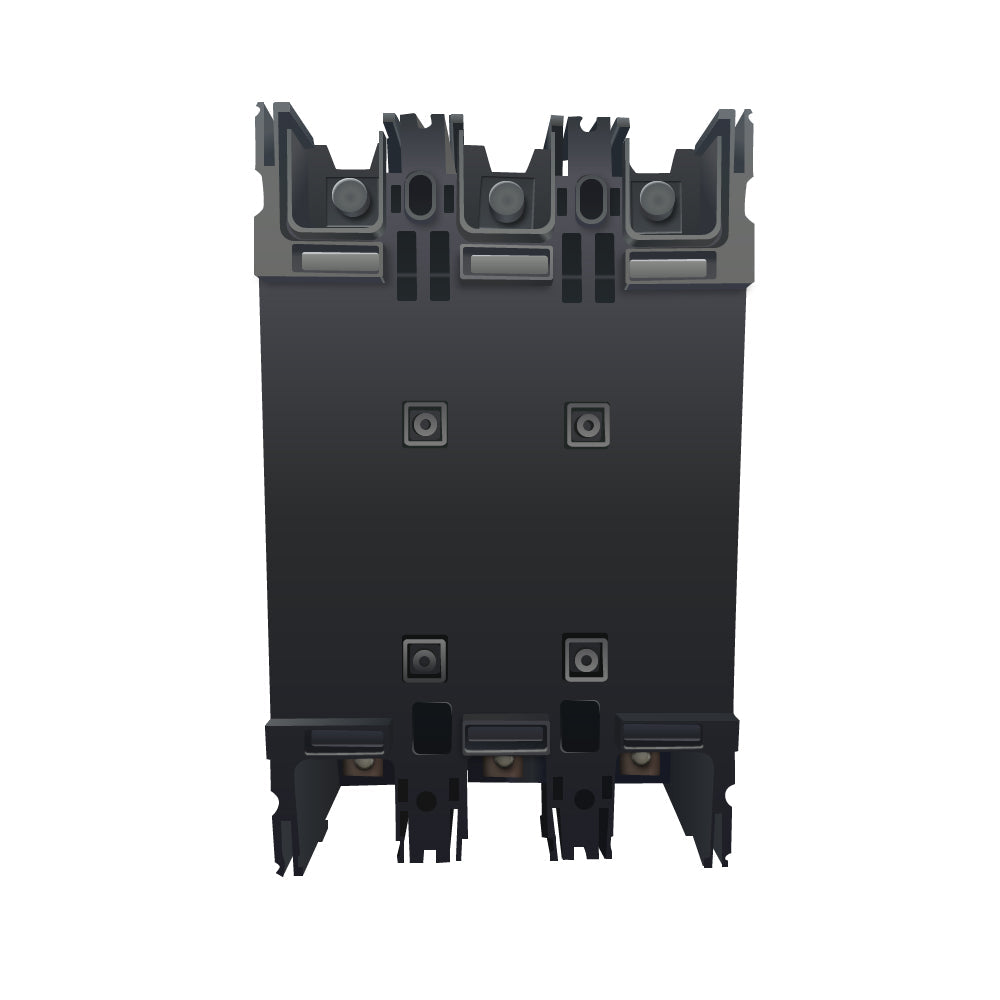

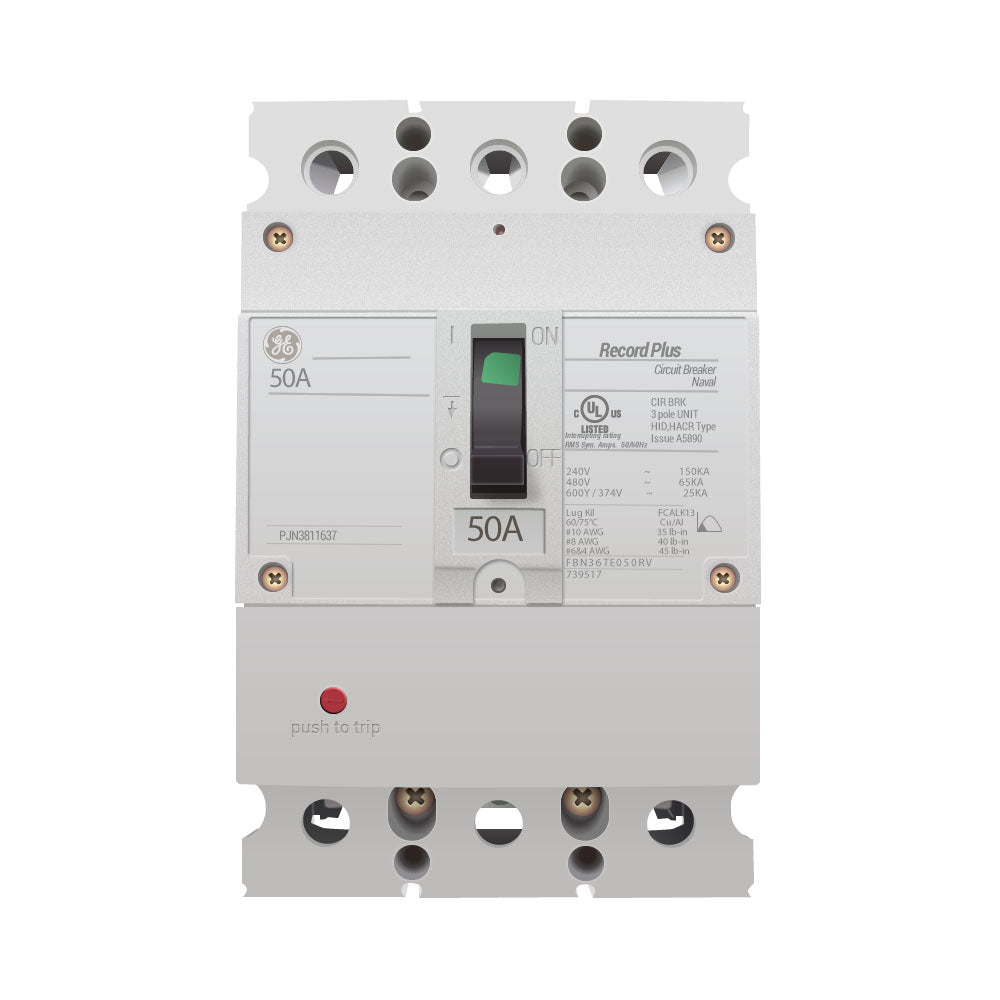

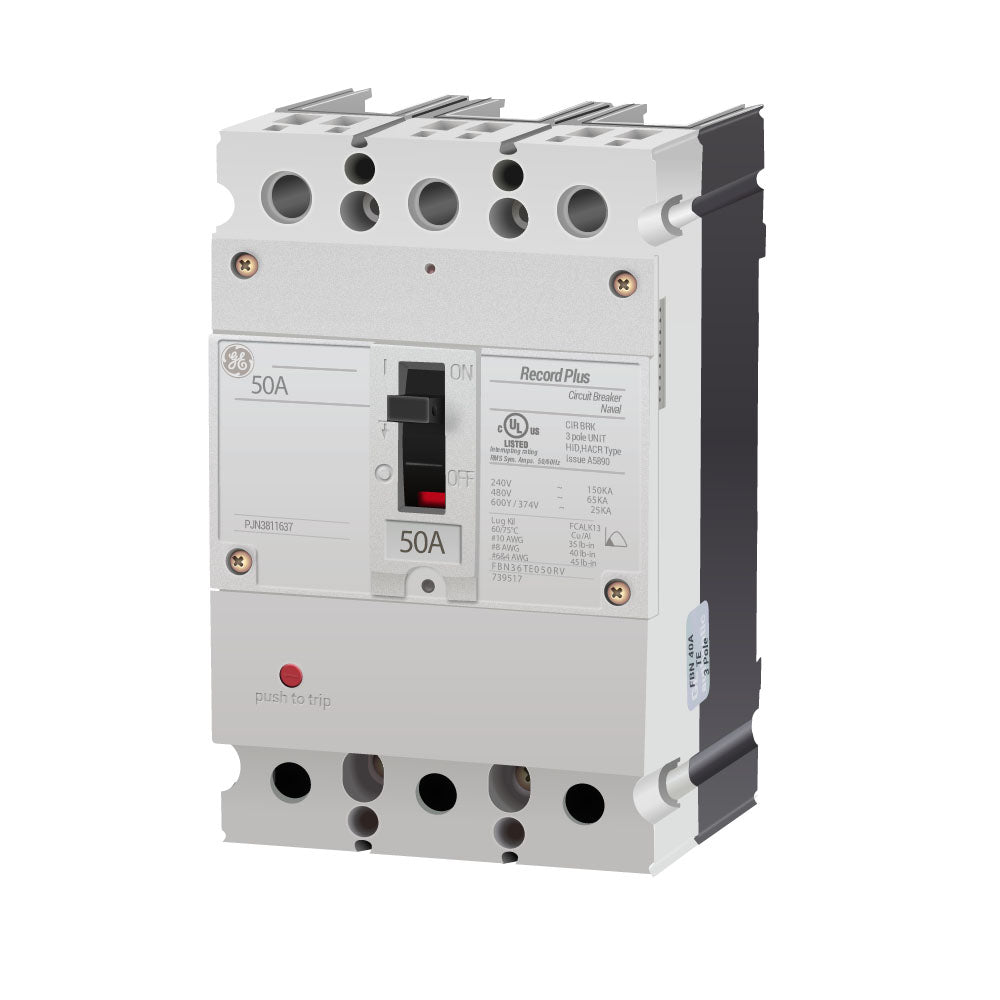

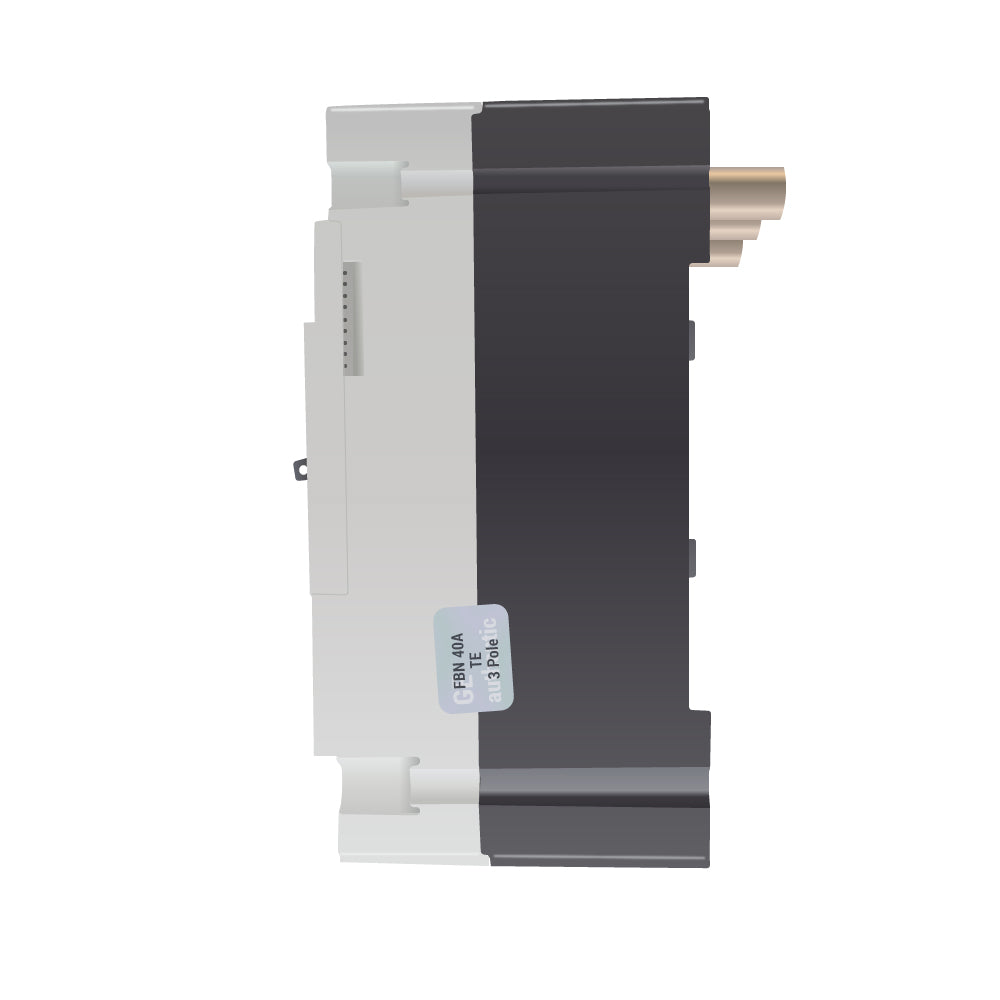

GE FBN36TE050RV Molded Case Circuit Breaker – 50A – 3-Pole / 3-Phase – 600V – 65kA @ 480V – Bolt-On – Record Plus FBN Series

The GE FBN36TE050RV is a 50A, 3-pole, 3-phase molded case circuit breaker from the General Electric Record Plus FBN Series with an FB100 frame. It is designed for compatible electrical distribution applications and features a high interrupting capacity of 65kA at 480V.

The FBN36TE050RV is rated for 600V and uses a bolt-on connection. It features Long-Time and Instantaneous (LI) trip functions and is supplied with load-side lug terminals and panel connections.

Specifications:

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Product Family: Record Plus
• Series: FBN
• Type: FBN
• Frame: FB100
• Catalog No.: FBN36TE050RV
• Current Rating: 50A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 65kA @ 480V
• Interrupting Capacity: High
• Protection Type: Not specified
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Mounting: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Panel Connections: Included
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FBN36TE050RV
• Catalog Number: FBN36TE050RV
• Model: FBN36TE050RV
• Product Family: GE Record Plus
• Series: FBN
• Type: FBN
• Frame: FB100
• Brand: General Electric
• Manufacturer: GE
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 50A
• UPC:783164395198

Compatibility:

Designed for use with compatible GE Record Plus FBN Series / FB100 frame electrical distribution equipment that accepts this type of bolt-on molded case circuit breaker. The FBN36TE050RV provides 50A, 3-pole protection for compatible 600V applications and has a 65kA interrupting rating at 480V.

The breaker includes load-side lug terminals and panel connections. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
