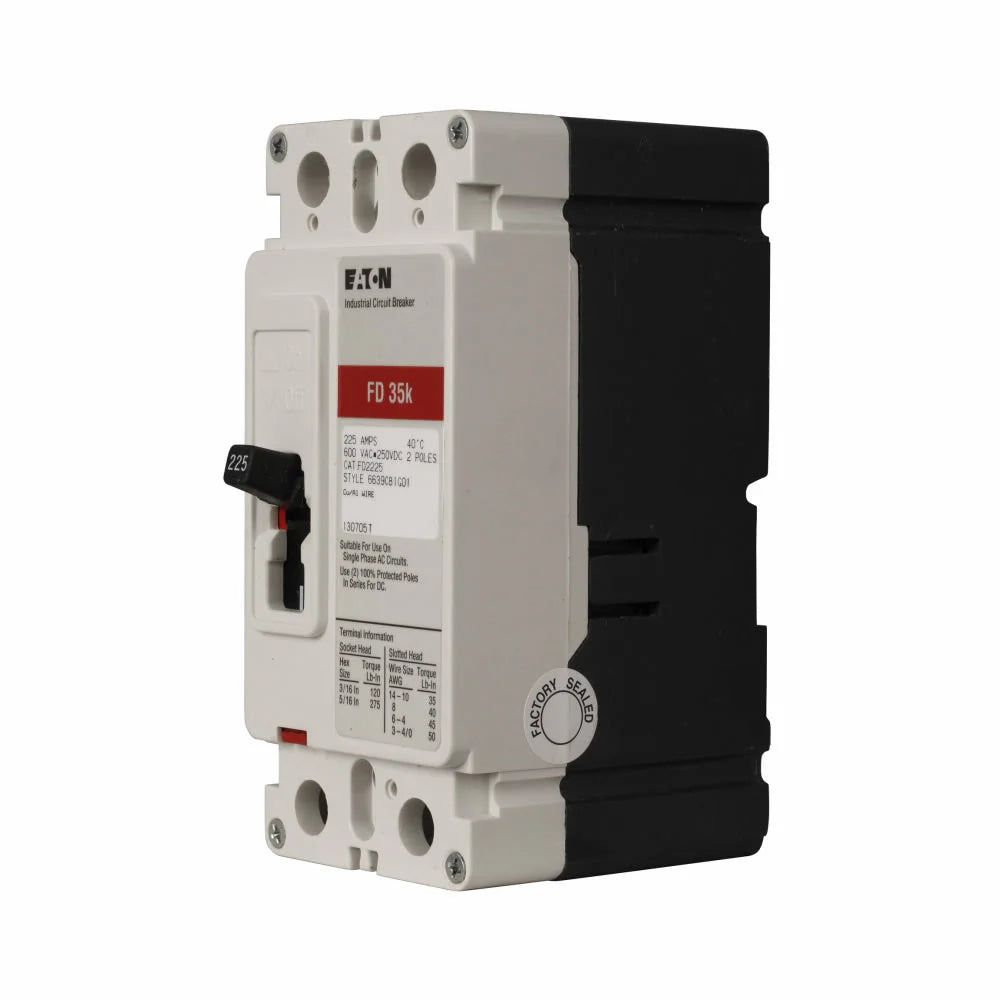

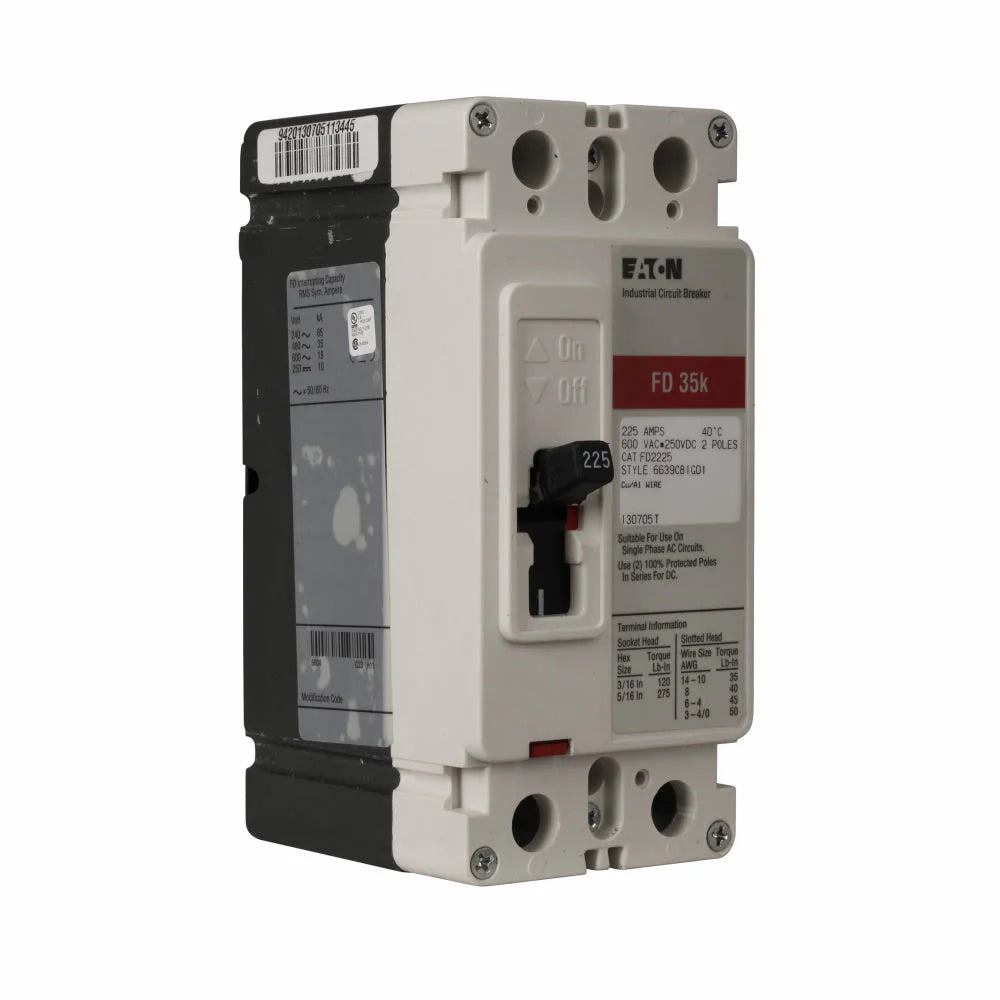

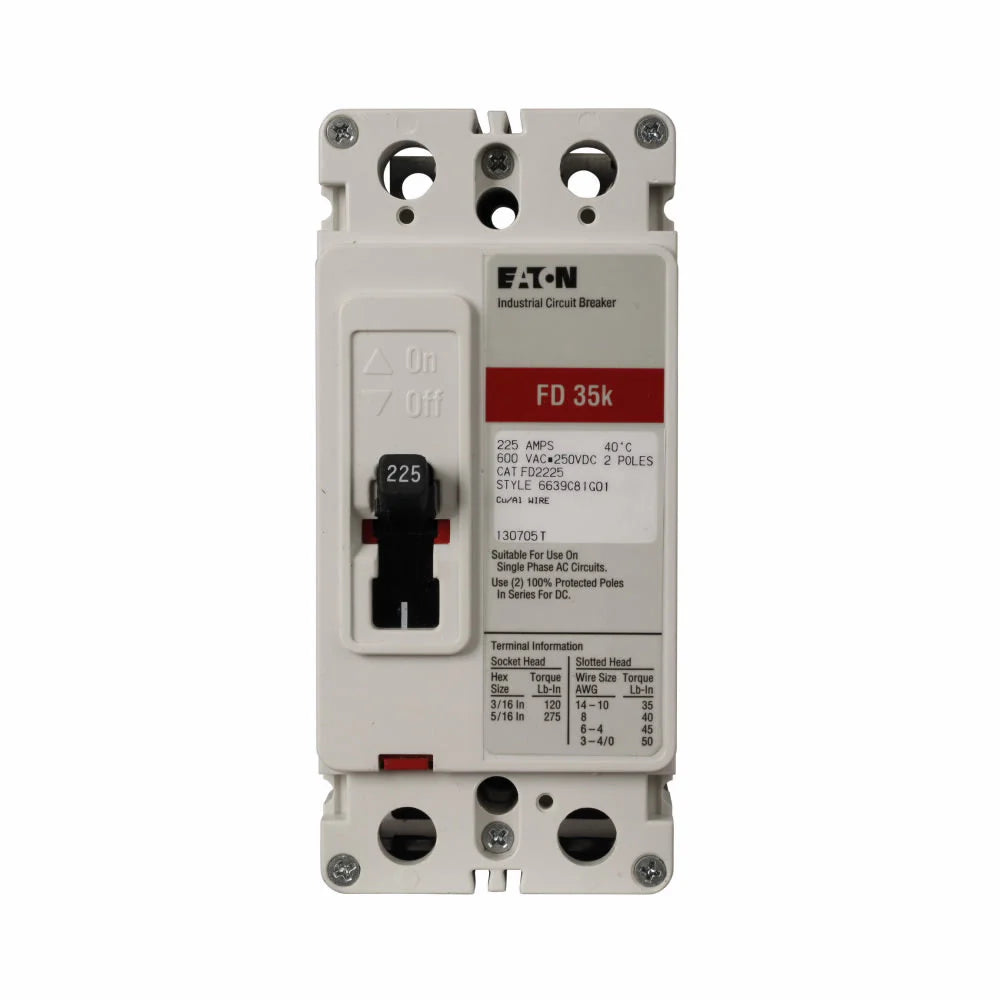

FD2090 - Cutler Hammer Bolt-On 600V 90A 2 pole circuit breaker 35kA@480V
Couldn't load pickup availability
Ask an expert
Description
FD2090
The Cutler Hammer FD2090 is a Molded Case Circuit Breaker. This type FD circuit breaker is a member of The Series C family. The FD2090 is a 2 pole, 600 Volt, 90 amp rated circuit breaker, with an AIC rating of 35kA@480V. The FD2090 is manufactured by Cutler Hammer. The FD2090 uses a Bolt-On connection. Includes Thermal Magnetic protection.
Specifications
- Part Number: FD2090
- Manufacturer : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Series C
- Type : FD
- Voltage : 600
- Amperage : 90
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Load Side Lug
- Frame Size : 225A/F
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 1/0 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : AB
Product Data
- UPC : 786679312292
- GTIN : 00786679312292
- Country of Origin : Dominican Republic
- Dimensions : 2.75 in x 6 in
- Weight : 4.5
- Panel Type : Allen Bradley MCC, Eaton MCC Eaton, Rockwell Automation Enclosed Control, Switchboard, Westinghouse
- Standards : CSA Certified, IEC Rated, UL Listed
- Certification : CSA Certified, IEC Rated, UL Listed
- Type Circuit Breakers
- Vendor Eaton Cutler-Hammer
- Brand Eaton
- Electrical Rating Bolt-On - 90 Amp - 2 Pole - 600 Volt
