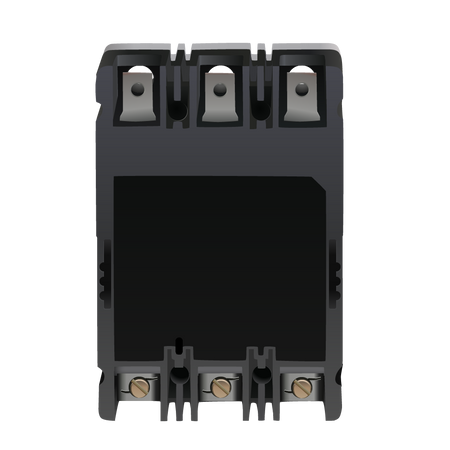

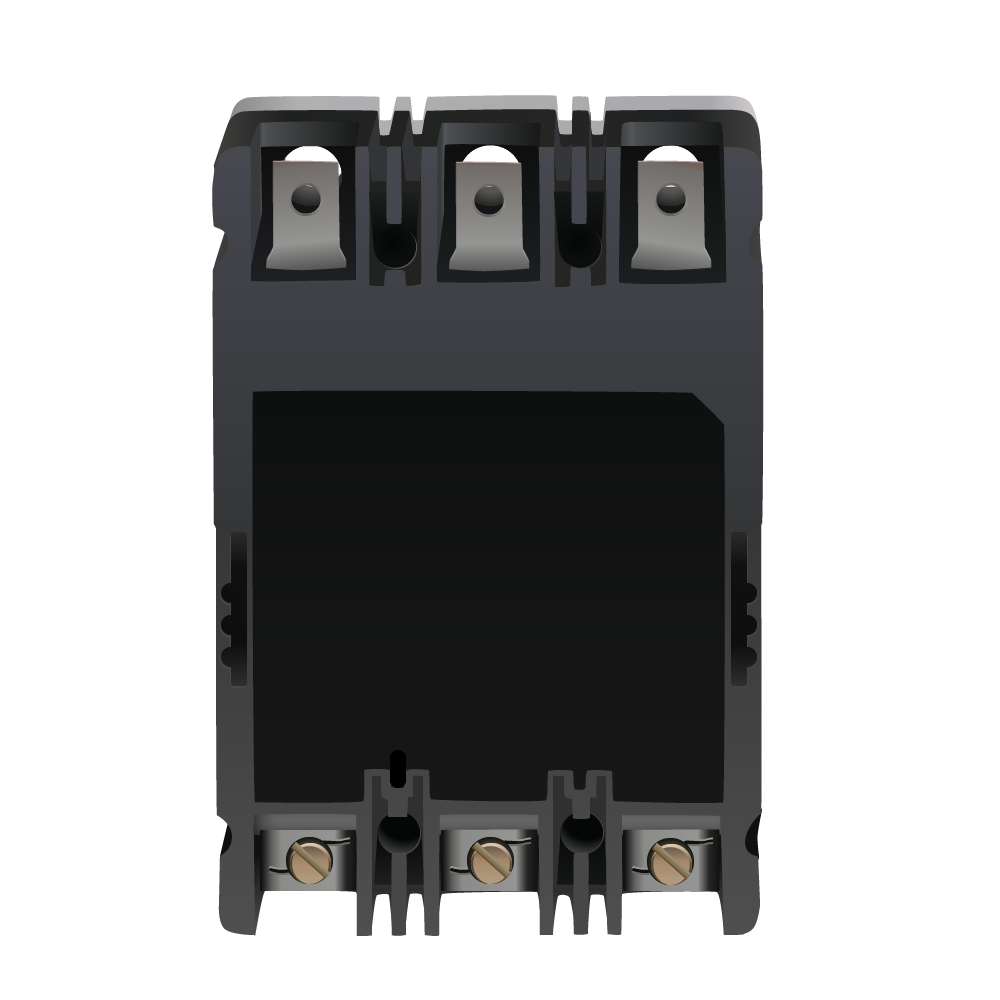

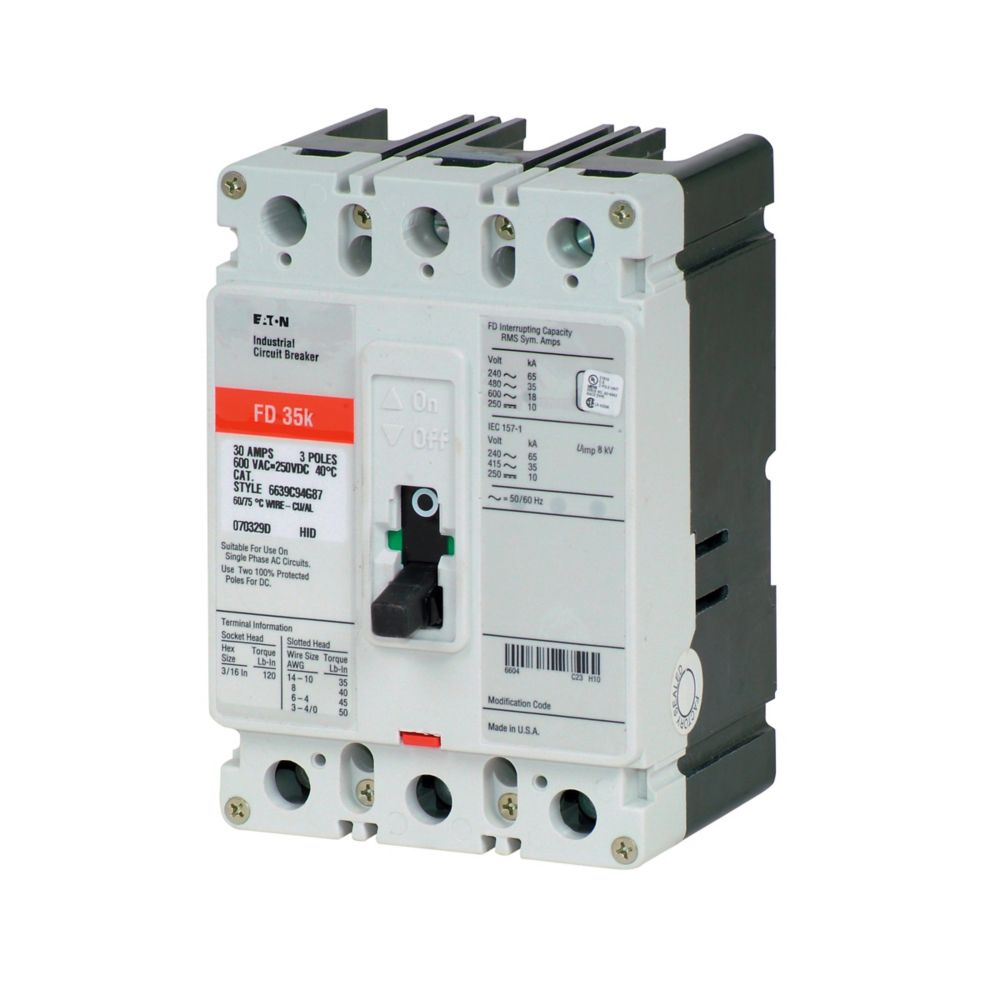

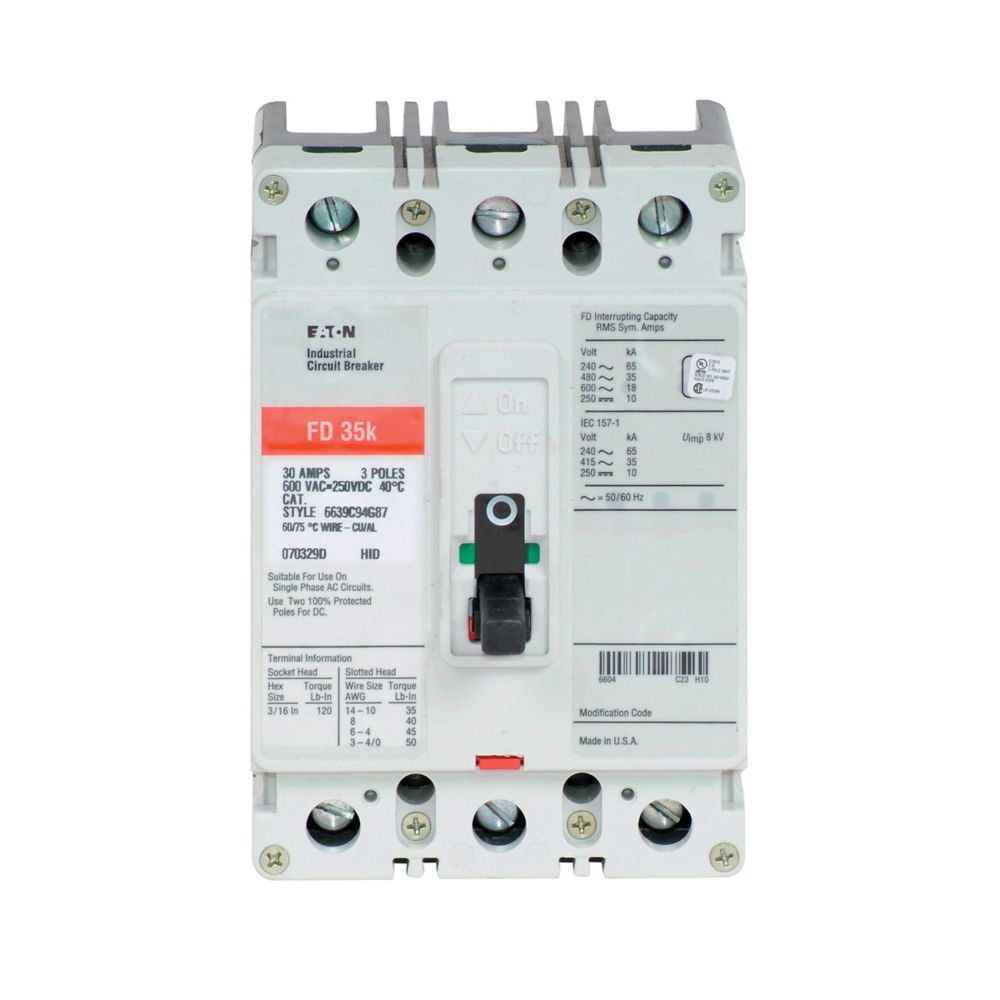

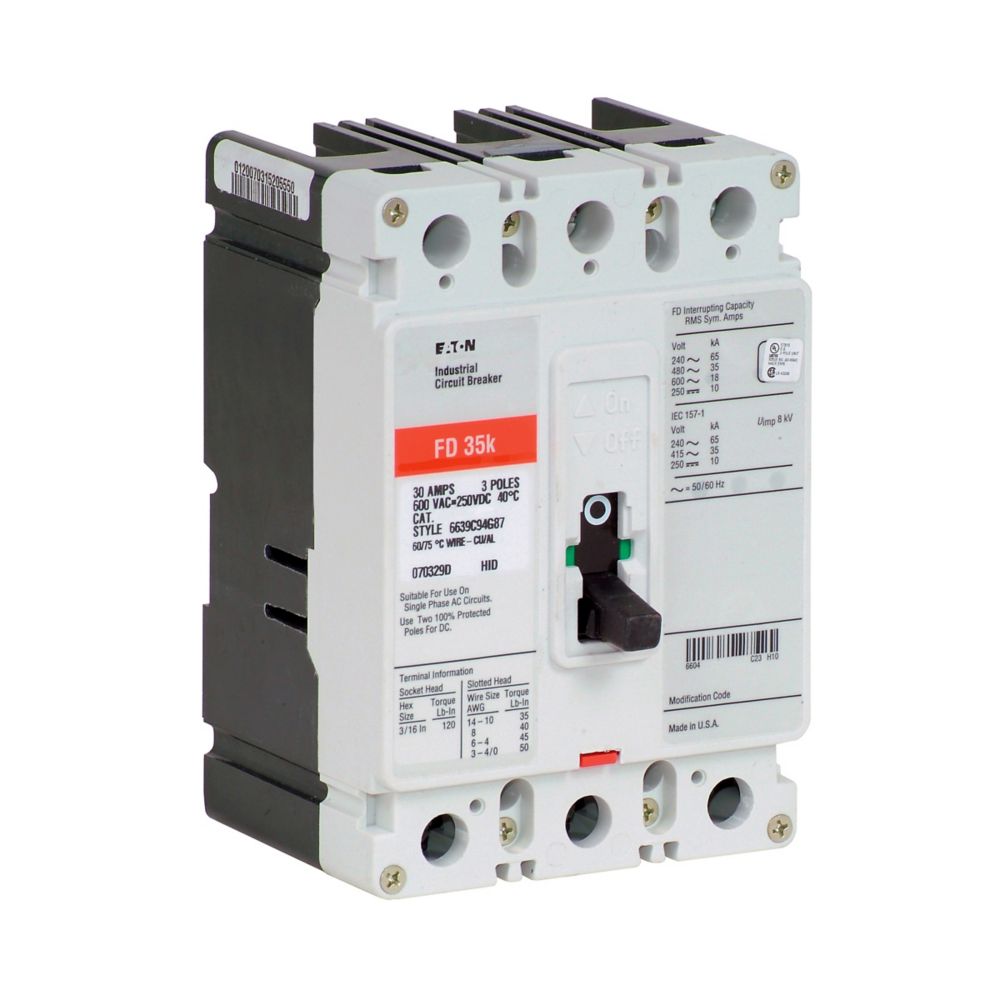

Eaton FD3015L Molded Case Circuit Breaker – 15A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – Series C FD

The Eaton FD3015L is a 15A, 3-pole, 3-phase molded case circuit breaker from the Eaton Series C FD Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The FD3015L is rated for 600V and provides a 35kA interrupting rating at 480V. It features a standard interrupting capacity, 40°C temperature rating, and a feed-thru configuration with line-side and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: FD
• Type: FD
• Catalog No.: FD3015L
• Current Rating: 15A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3015L
• Catalog Number: FD3015L
• Model: FD3015L
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: FD
• Type: FD
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 15A
• UPC:786679305614

Compatibility:

Designed for use with compatible Eaton Series C FD electrical distribution equipment that accepts FD Series molded case circuit breakers. The FD3015L provides 15A, 3-pole thermal-magnetic overcurrent protection for compatible 600V applications.

The breaker features a 35kA interrupting rating at 480V, non-interchangeable LI trip functions, feed-thru configuration, and line-side and load-side lug terminals.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• Series C FD Series
• 15A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip
• Feed-Thru Configuration
• Line-Side and Load-Side Lug Terminals
• 40°C Rated
