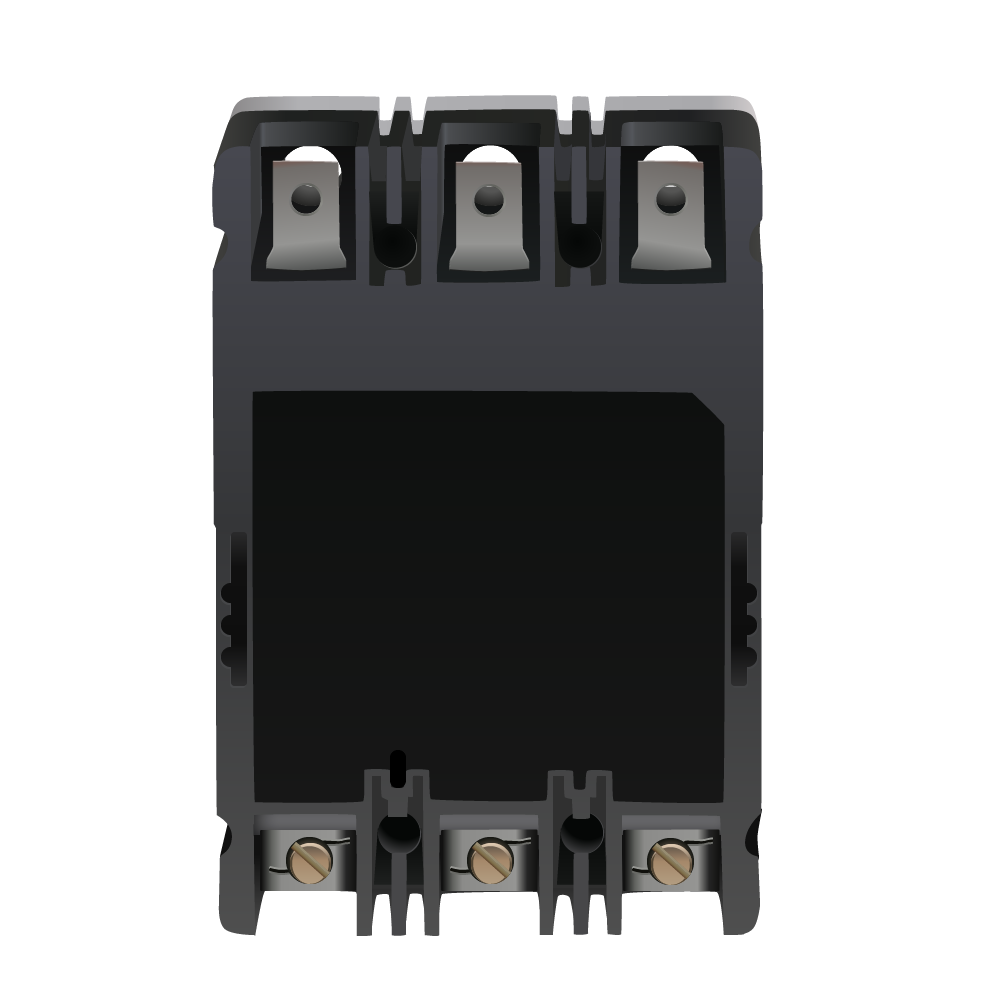

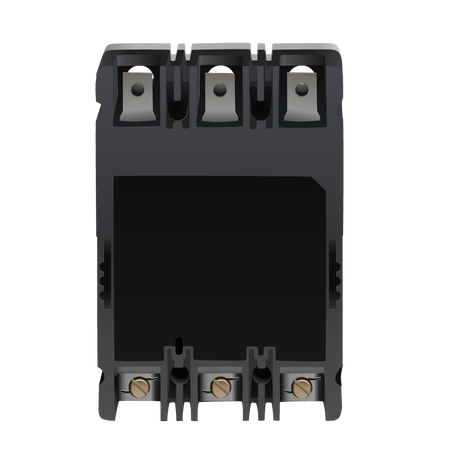

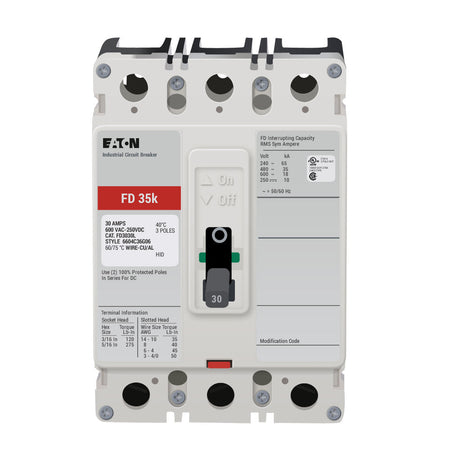

Eaton FD3030L Molded Case Circuit Breaker – 30A – 3-Pole – 600V – 35kA @ 480V – Feed-Thru – Series C FD

The Eaton FD3030L is a 30A, 3-pole molded case circuit breaker from the Eaton Cutler-Hammer Series C FD family. It is rated for 600V and provides a 35kA interrupting rating at 480V. The breaker features thermal-magnetic protection, a non-interchangeable trip unit with LI (Long-Time and Instantaneous) trip functions, and line- and load-side lug terminals. It uses a feed-thru configuration and is calibrated at 40°C.

Specifications:

• Manufacturer : Eaton / Cutler-Hammer / Westinghouse
• Product Type : Molded Case Circuit Breaker
• Series : Series C
• Type : FD
• Catalog No. : FD3030L
• Current Rating : 30A
• Number of Poles : 3-Pole
• Phase : 3-Phase
• Voltage Rating : 600V
• Interrupting Rating : 35kA @ 480V
• Interrupting Capacity : Standard Interrupting Capacity
• Trip Technology : Thermal-Magnetic
• Trip Unit : Non-Interchangeable
• Trip Functions : LI – Long-Time and Instantaneous
• Connection Type : Feed-Thru
• Terminal Type : Line & Load Side Lug Terminals
• Calibration Temperature : 40°C
• Application : Electrical Distribution and Circuit Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : FD3030L
• Catalog Number : FD3030L
• Product Family : Series C FD
• Series : Series C
• Type : FD
• Brand : Eaton / Cutler-Hammer
• Manufacturer : Eaton
• Product Type : Molded Case Circuit Breaker
• Model : FD3030L
• Breaker Configuration : 3-Pole, 30A
• upc:
  786679305669

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C FD molded case circuit breaker applications. The FD3030L is a 30A, 3-pole, 600V feed-thru MCCB with thermal-magnetic protection, a non-interchangeable LI trip unit, and line- and load-side lug terminals.

Always verify the specific electrical distribution equipment, approved breaker type, system voltage, pole configuration, interrupting rating, feed-thru arrangement, trip-unit requirements, and terminal configuration before installation.

Certifications:

• Series C FD
• 30A Rating
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• LI – Long-Time and Instantaneous Trip
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line & Load Side Lug Terminals
• 40°C Calibration
