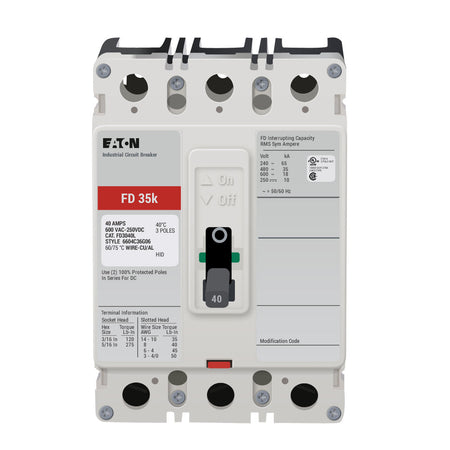

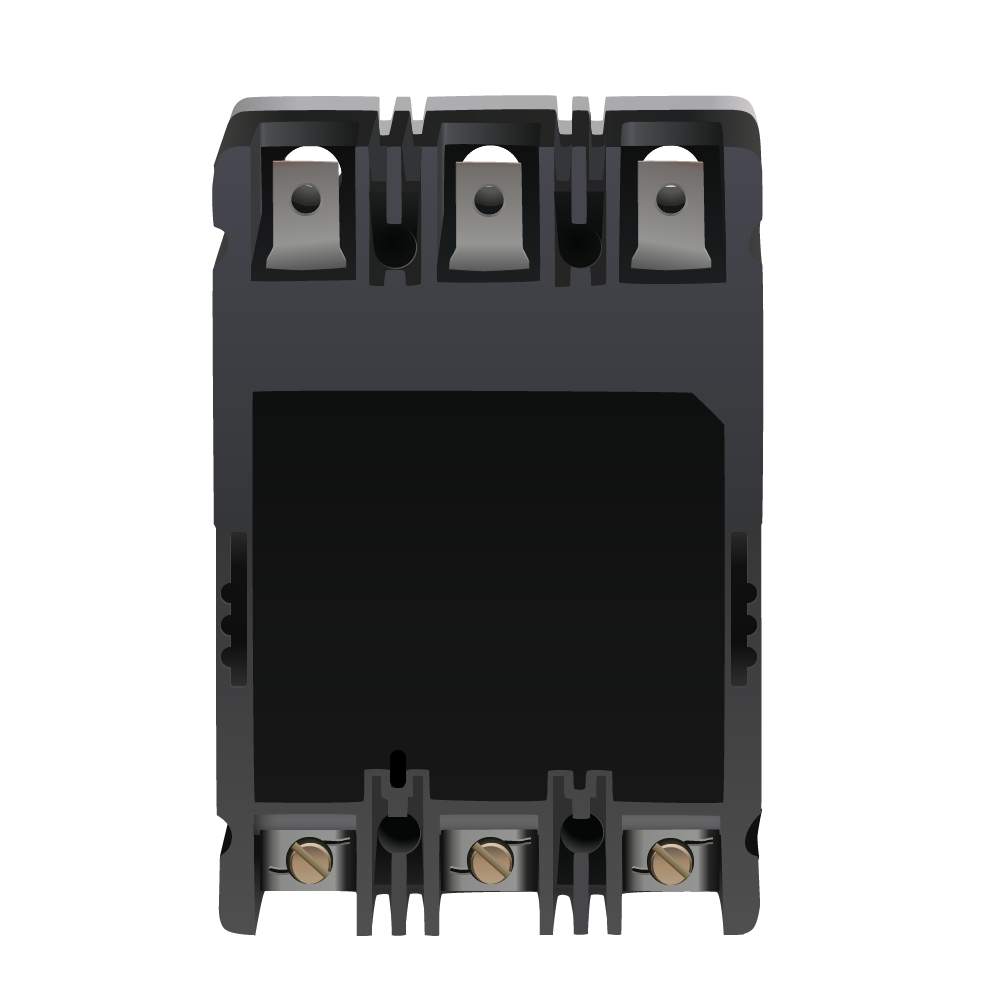

Eaton FD3040L Molded Case Circuit Breaker – 40A – 3-Pole – 600V AC – 65kAIC @ 240V – Bolt-On – Series C F-Frame

The Eaton FD3040L is a 40A, 3-pole molded case circuit breaker from the Eaton Series C F-Frame family. It features thermal-magnetic protection and is designed for commercial and industrial electrical distribution applications, providing overload and short-circuit protection.

The FD3040L is rated for 600V AC and provides interrupting ratings of 65kAIC at 240V AC, 25kAIC at 480V AC, and 18kAIC at 600V AC. It features factory-installed load-side lugs and a bolt-on mounting configuration.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Frame: F-Frame
• Catalog No.: FD3040L
• Current Rating: 40A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Protection Type: Thermal-Magnetic
• Trip Type: Thermal-Magnetic
• Interrupting Rating: 65kAIC @ 240V AC; 25kAIC @ 480V AC; 18kAIC @ 600V AC
• Frequency: 50/60 Hz
• Mounting Type: Bolt-On
• Terminal Type: Factory-Installed Load-Side Lugs
• Application: Commercial and Industrial Electrical Distribution and Overcurrent Protection
• Condition: New
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3040L
• Catalog Number: FD3040L
• Model: FD3040L
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Frame: F-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 40A
• UPC:786679305683

Compatibility:

Designed for use with compatible Eaton Series C F-Frame electrical distribution equipment that accepts FD Series molded case circuit breakers. The FD3040L provides 40A, 3-pole thermal-magnetic protection for compatible 600V AC applications.

The breaker uses bolt-on mounting and includes factory-installed load-side lugs. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal requirements, and installation instructions before installation.

Certifications:

• UL Listed
