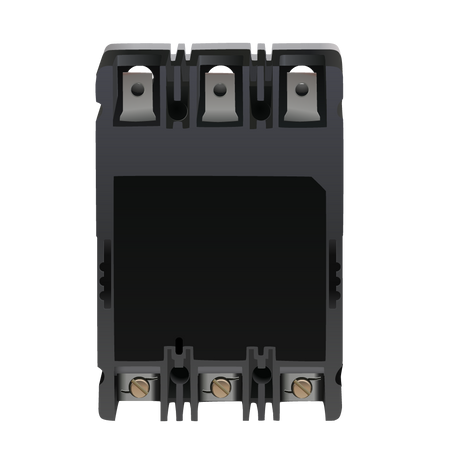

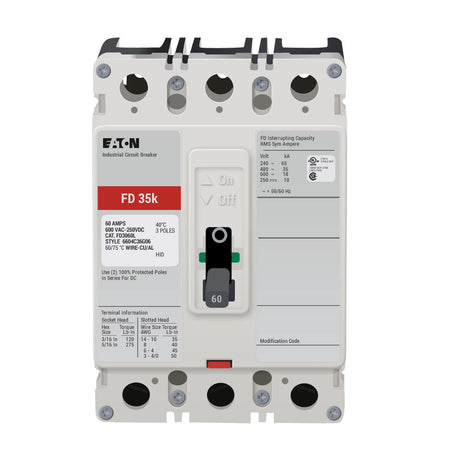

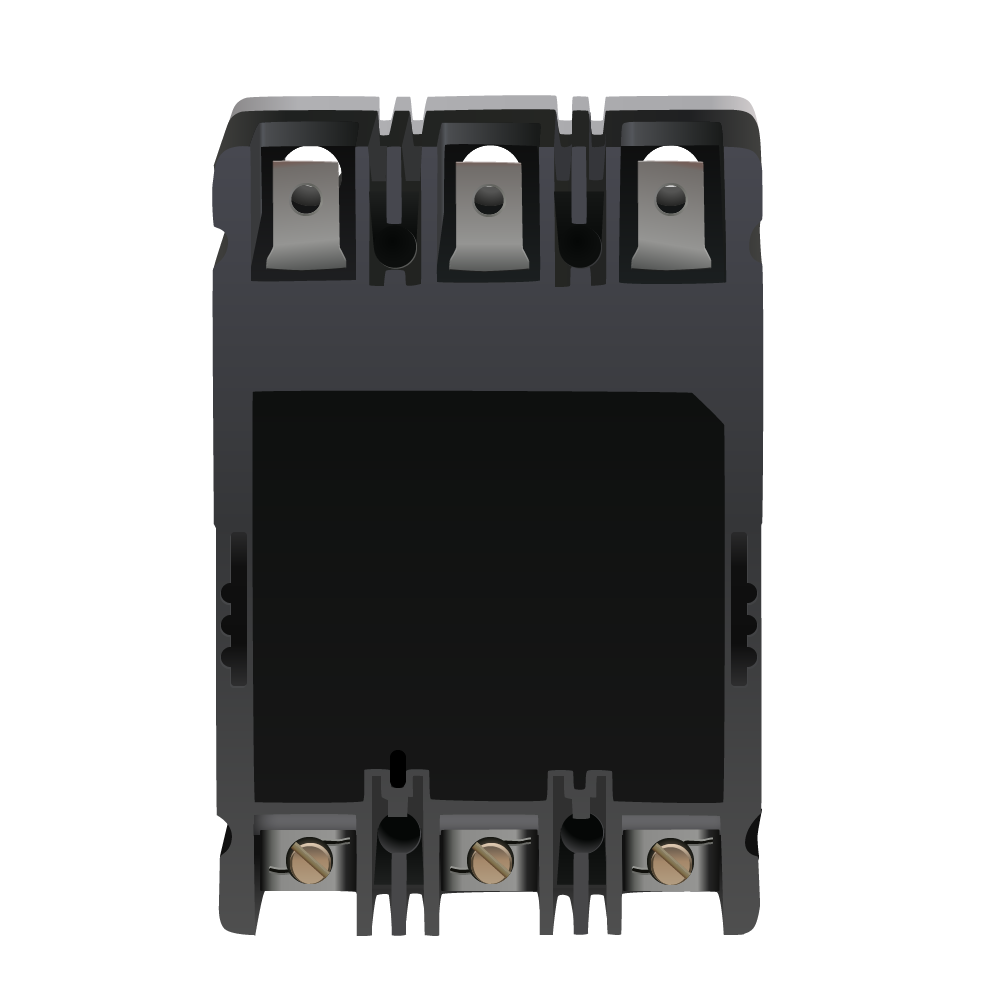

Eaton FD3060L Molded Case Circuit Breaker – 60A – 3-Pole – 600V – 35kA @ 480V – Feed-Thru – Series C FD

The Eaton FD3060L is a 60A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series C FD family. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 600V with a 35kA interrupting rating at 480V and standard interrupting capacity. It uses a feed-thru configuration, includes line- and load-side lug terminals, and features a non-interchangeable trip.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: FD
• Type: FD
• Catalog No.: FD3060L
• Current Rating: 60A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Calibration Temperature: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer
• Authenticity: Authentic Eaton Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3060L
• Catalog Number: FD3060L
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: FD
• Type: FD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: FD3060L
• Breaker Configuration: 3-Pole, 60A
• upc:786679306291

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C FD electrical distribution equipment that accepts FD-frame molded case circuit breakers. The FD3060L provides 60A, 3-pole thermal-magnetic protection for compatible 600V applications and has a 35kA interrupting rating at 480V.

The breaker features a feed-thru configuration, non-interchangeable LI trip functions, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, conductor requirements, and installation requirements before installation.

Certifications:

• Series C FD
• 60A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• 40°C Calibration
• Genuine Eaton / Cutler-Hammer Product
