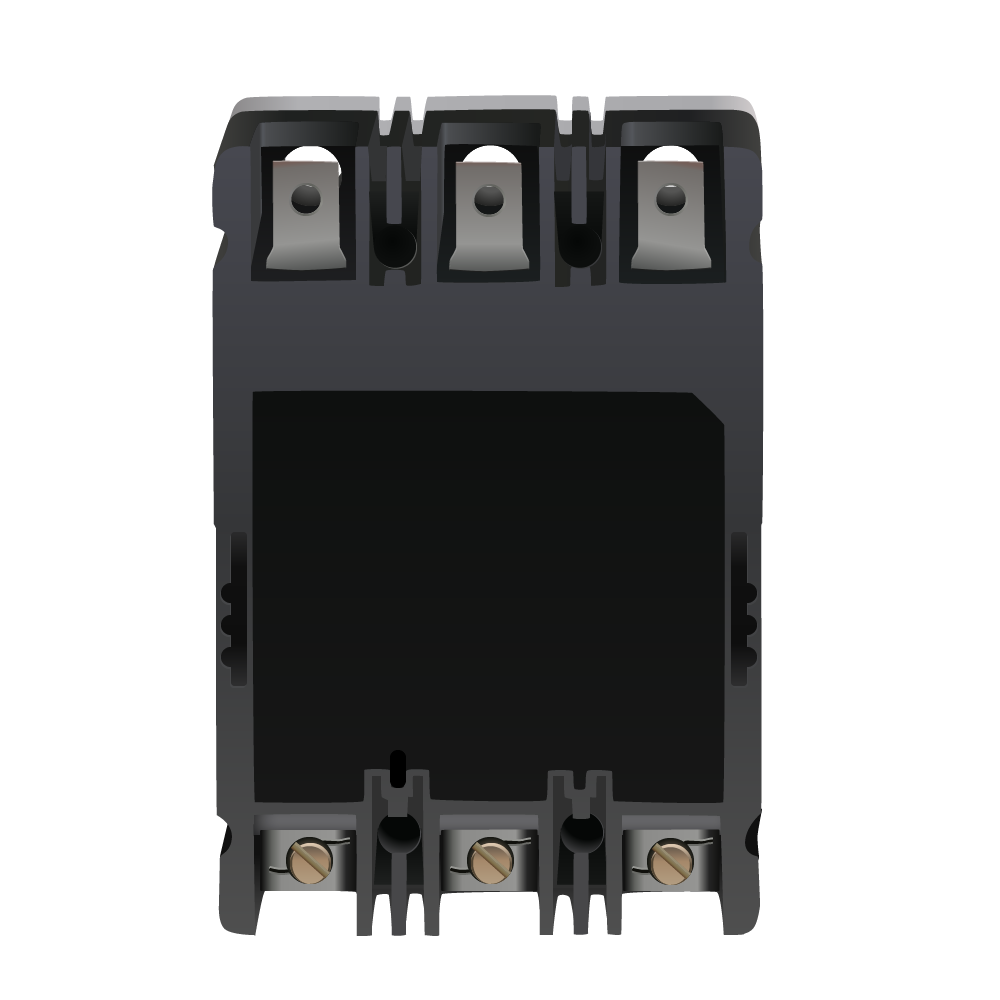

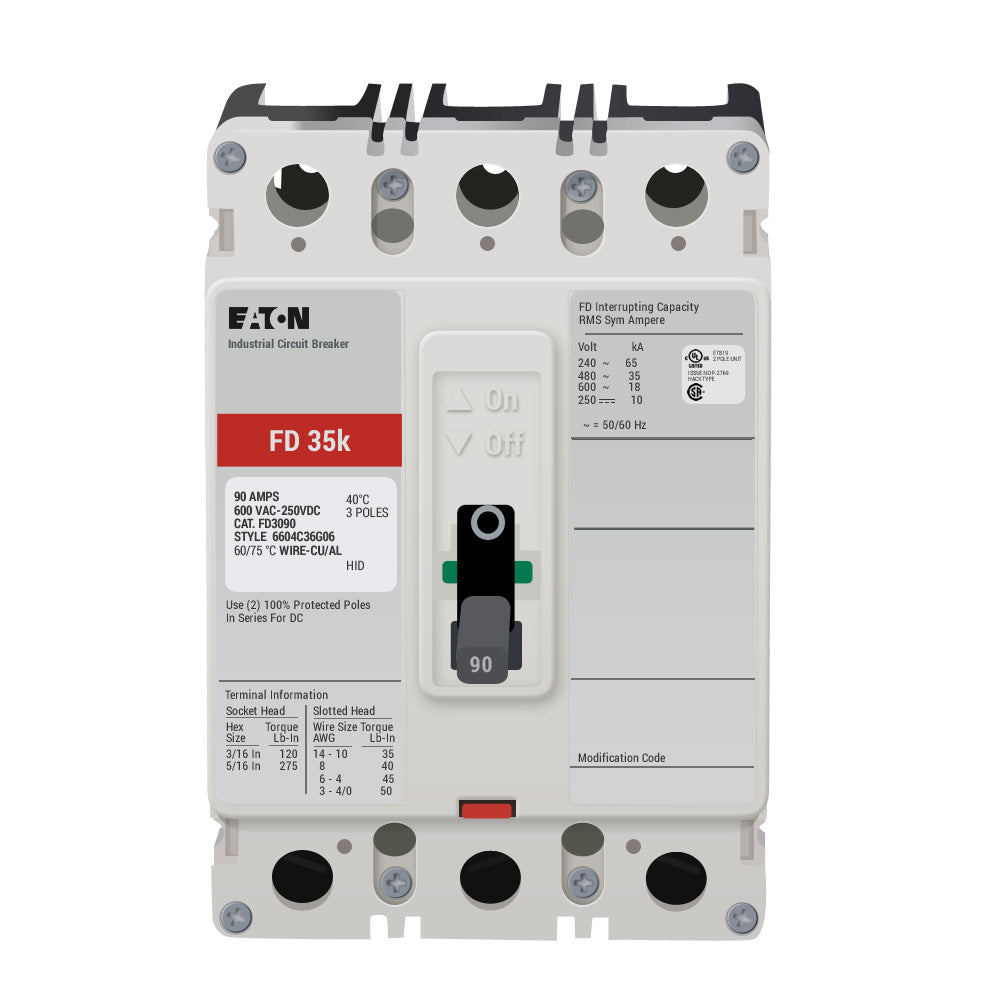

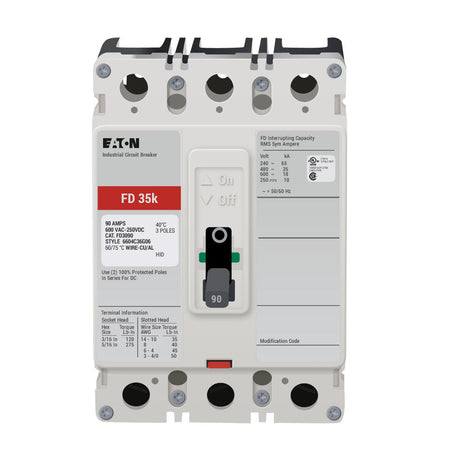

Eaton FD3090 Molded Case Circuit Breaker – 90A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – Series C FD

The Eaton FD3090 is a 90A, 3-pole, 3-phase molded case circuit breaker from the Eaton Series C Type FD family. It features thermal-magnetic protection, a 600V rating, and a 35kA interrupting rating at 480V.

The FD3090 has a standard interrupting capacity, 40°C rating, and a feed-thru configuration. It includes a non-interchangeable trip with Long-Time and Instantaneous (LI) trip functions, along with line- and load-side lug terminals.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Name: Series C Complete Molded Case Circuit Breaker
• Series: Series C
• Type: FD
• Catalog No.: FD3090
• Current Rating: 90A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer
• Authenticity: Not Specified

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3090
• Catalog Number: FD3090
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: FD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: FD3090
• Breaker Configuration: 3-Pole, 90A
• upc:
  786679305751

Compatibility:

Designed for use with compatible Eaton Series C Type FD electrical distribution equipment that accepts FD Series molded case circuit breakers. The FD3090 is a 3-pole, 90A, 600V breaker with thermal-magnetic protection, a 35kA interrupting rating at 480V, and LI Long-Time and Instantaneous trip functions.

The breaker uses a feed-thru configuration with line- and load-side lug terminals and a non-interchangeable trip design.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• Specific Certifications: Not Specified
