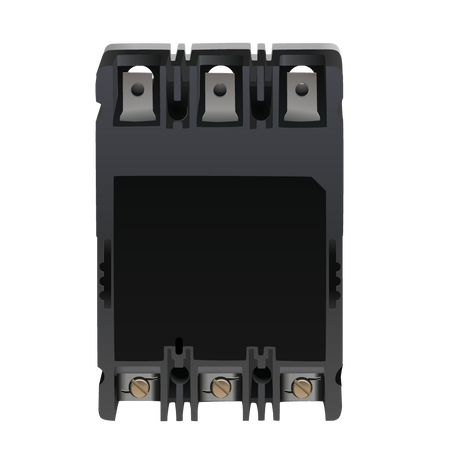

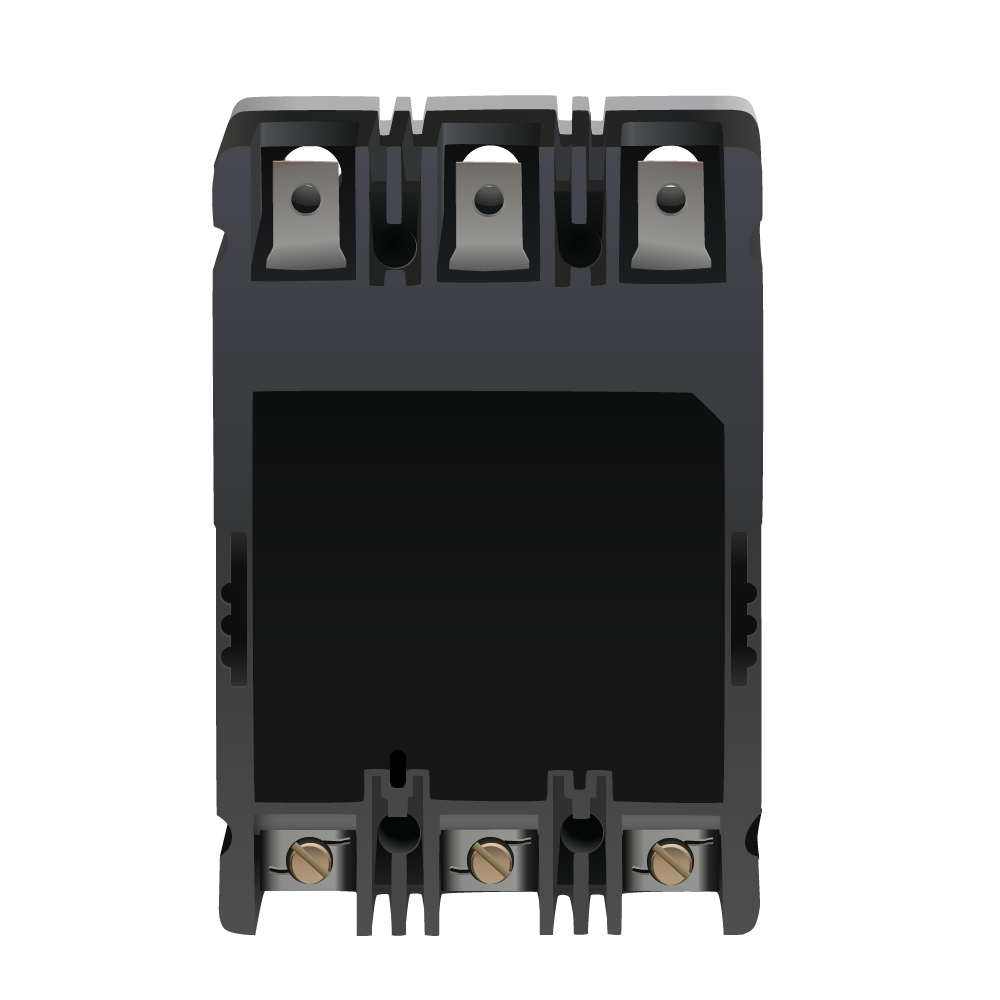

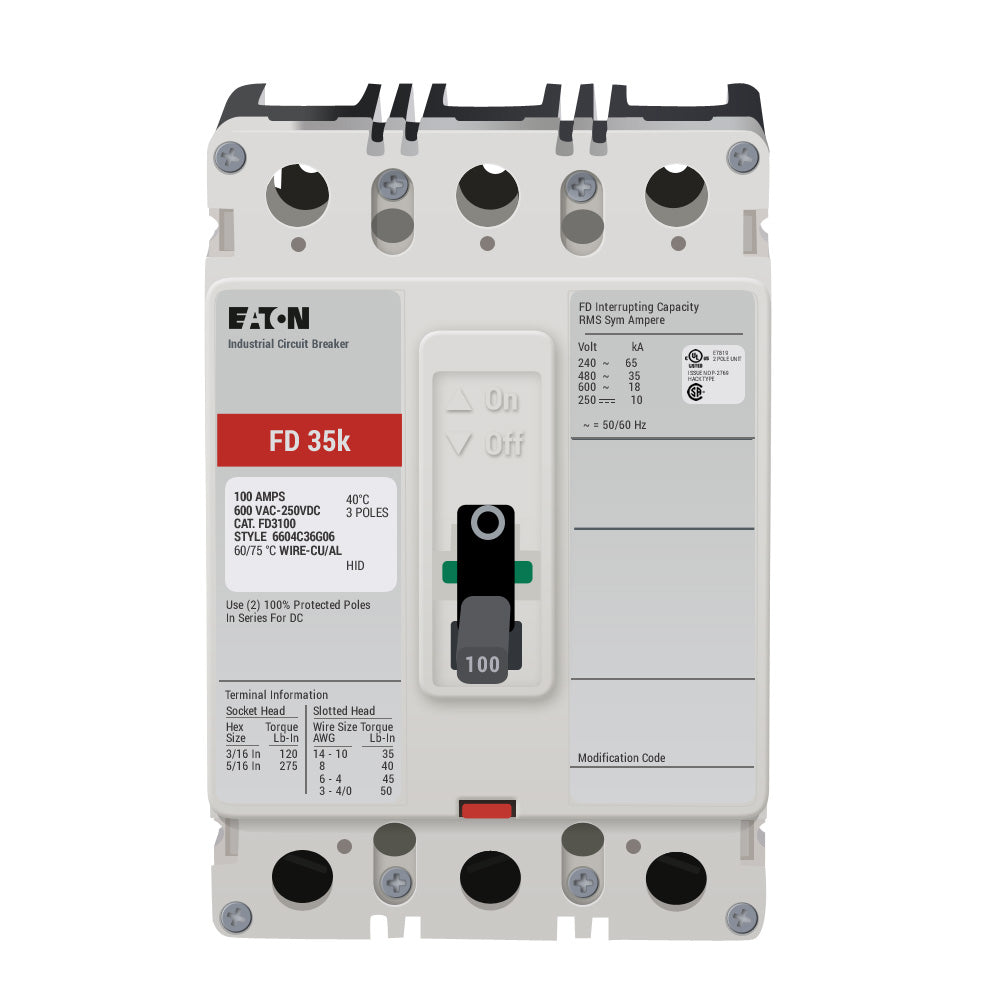

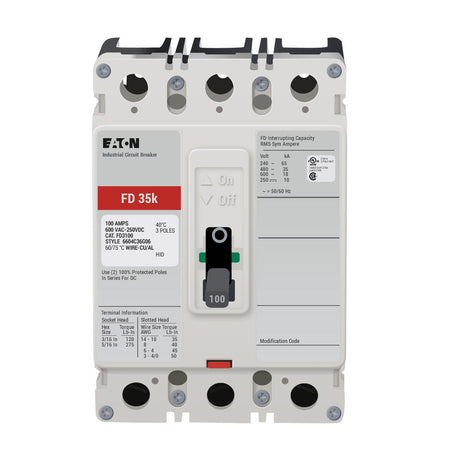

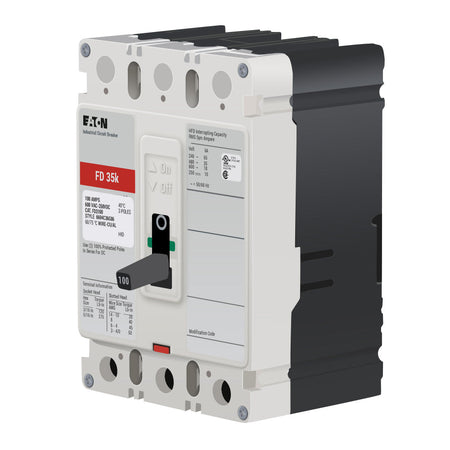

Eaton FD3100 Molded Case Circuit Breaker – 100A – 3-Pole – 600V AC – 65kAIC – Bolt-On – Series C F-Frame

The Eaton FD3100 is a 100A, 3-pole molded case circuit breaker from the Series C F-Frame family, designed for commercial and industrial power distribution applications. It features a thermal-magnetic trip unit with fixed thermal and fixed magnetic protection for overload and short-circuit protection.

The breaker is rated for 600V AC and provides interrupting ratings of 65kAIC at 240V AC and 35kAIC at 480V AC. Its bolt-on F-Frame configuration is suitable for compatible panelboards, switchboards, motor control centers, and OEM equipment.

Specifications:

• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Frame Size: F-Frame
• Catalog Number: FD3100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V AC
• Interrupting Rating: 65kAIC @ 240V AC; 35kAIC @ 480V AC
• Trip Technology: Thermal-Magnetic
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Frequency: 50/60 Hz
• Mounting Type: Bolt-On
• Application: Commercial and industrial power distribution
• Suitable Equipment: Panelboards, switchboards, motor control centers, and OEM equipment

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3100
• Catalog Number: FD3100
• Model: FD3100
• Product Family: Series C F-Frame Circuit Breakers
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: 100A Molded Case Circuit Breaker
• UPC: 786679305768
• GTIN: 00786679305768

Compatibility:

Designed for use with compatible Eaton Series C F-Frame electrical distribution equipment accepting FD-frame molded case circuit breakers. The FD3100 is suitable for 100A, 3-pole, 600V AC applications in compatible panelboards, switchboards, motor control centers, and OEM equipment.

Always verify the specific equipment model, breaker frame compatibility, mounting configuration, system voltage, interrupting rating, and installation requirements before installation.

Certifications:

• UL Listed
• Series C F-Frame
• Thermal-Magnetic Protection
• Fixed Thermal / Fixed Magnetic
