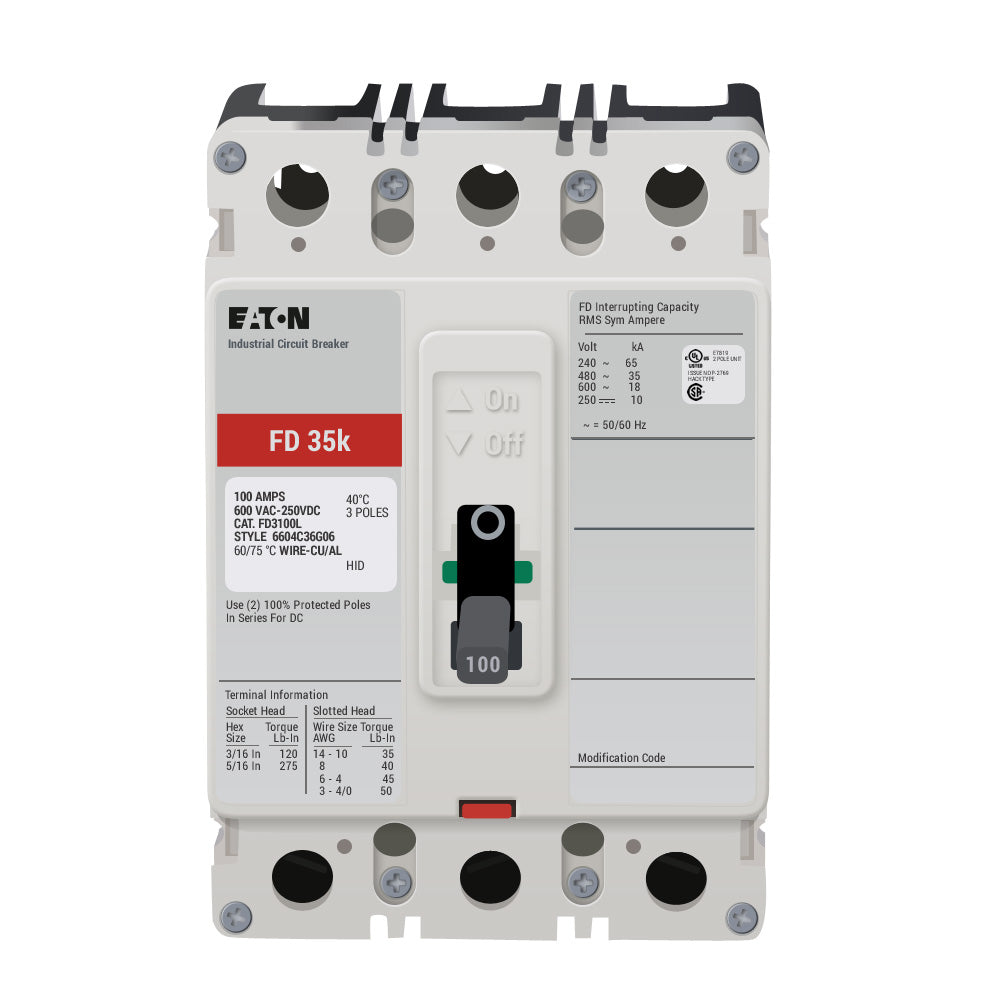

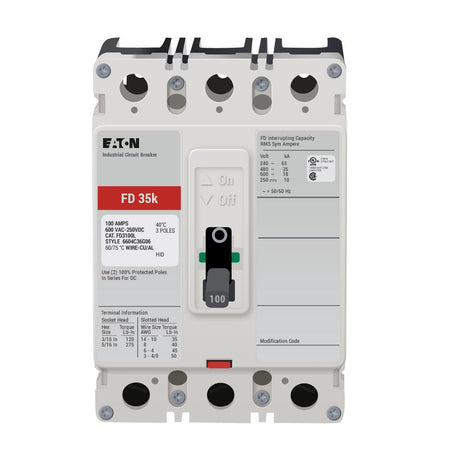

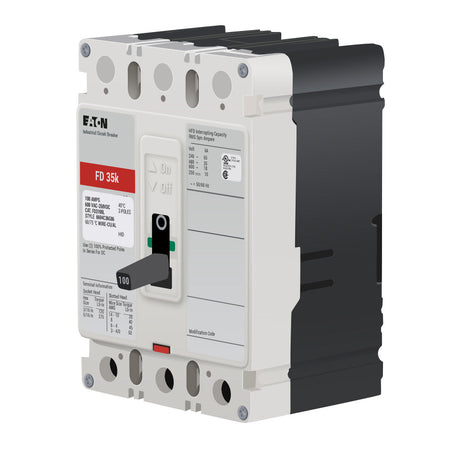

Eaton FD3100L Molded Case Circuit Breaker – 100A – 3-Pole – 600V – 35kA @ 480V – Feed-Thru – Series C FD

The Eaton FD3100L is a 100A, 3-pole feed-thru molded case circuit breaker from the Eaton / Cutler-Hammer Series C FD family. It features thermal-magnetic protection, a non-interchangeable trip, and LI (Long-Time and Instantaneous) trip functions.

The breaker is rated for 600V with a 35kA interrupting rating at 480V and is calibrated for 40°C operation. It includes line-side and load-side lug terminals for electrical connections.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Catalog No.: FD3100L
• Product Family: Series C
• Series: FD
• Current Rating: 100A
• Number of Poles: 3-Pole
• Voltage Rating: 600V
• Phase: 3-Phase
• Protection Type: Thermal-Magnetic
• Mounting / Connection: Feed-Thru
• Trip Type: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Calibration Temperature: 40°C

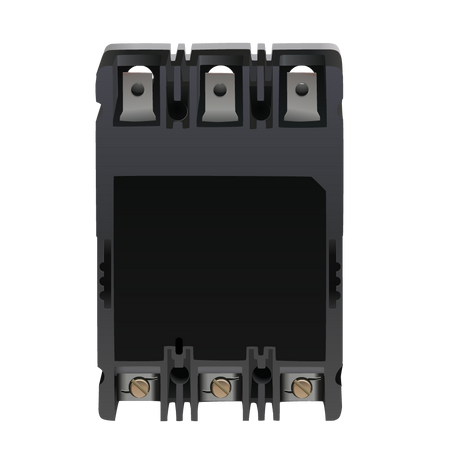

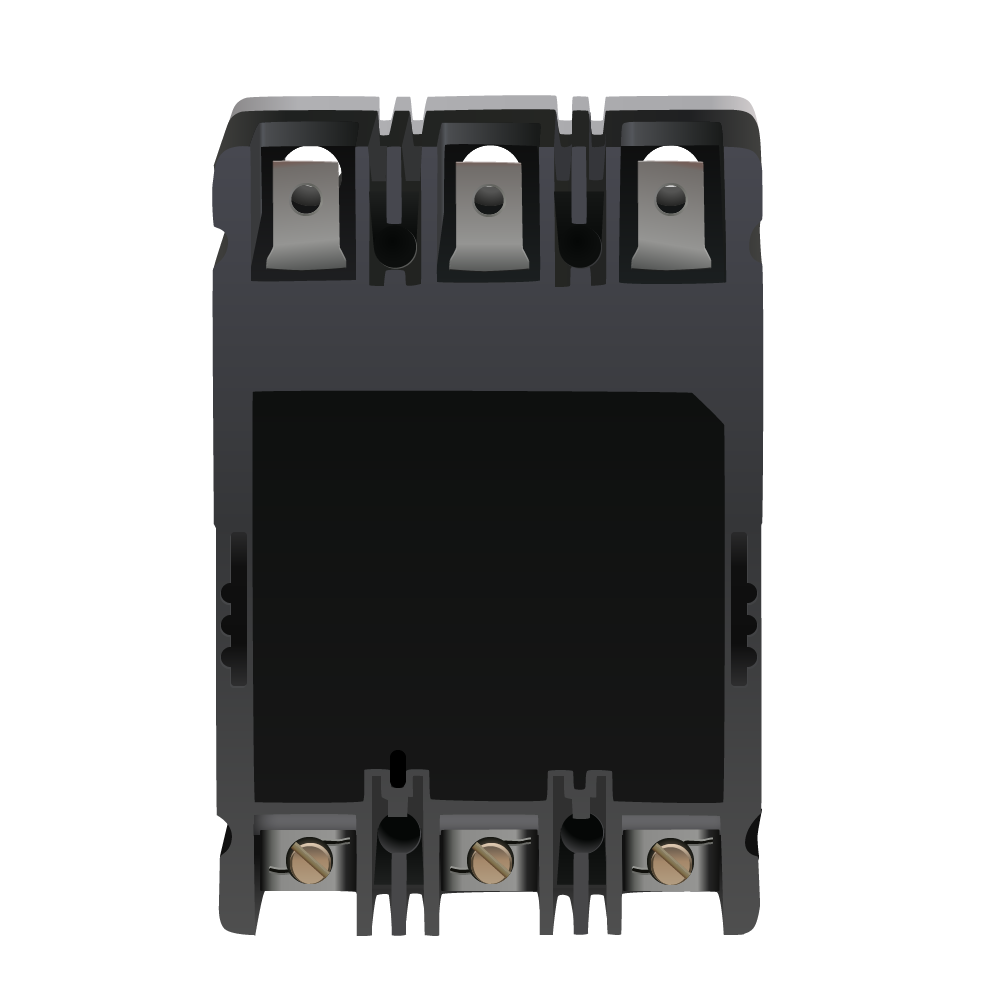

• Terminal Type: Line-Side and Load-Side Lug Terminals
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3100L
• Catalog Number: FD3100L
• Model: FD3100L
• Product Family: Eaton / Cutler-Hammer Series C
• Series: FD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Configuration: 3-Pole, 100A
• upc:786679305775

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C FD electrical distribution equipment that accepts the specified feed-thru molded case circuit breaker configuration. The FD3100L provides 100A, 3-pole thermal-magnetic protection for compatible 600V, 3-phase applications.

The breaker includes line-side and load-side lug terminals and a non-interchangeable LI trip configuration. Always verify the specific panelboard, switchboard, or electrical equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, terminal arrangement, and installation requirements before installation.

Certifications:

• 100A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA Interrupting Rating @ 480V
• Thermal-Magnetic Protection
• Feed-Thru Connection
• Non-Interchangeable Trip
• LI – Long-Time and Instantaneous
• Line-Side and Load-Side Lug Terminals
• 40°C Calibrated
• Series C FD
