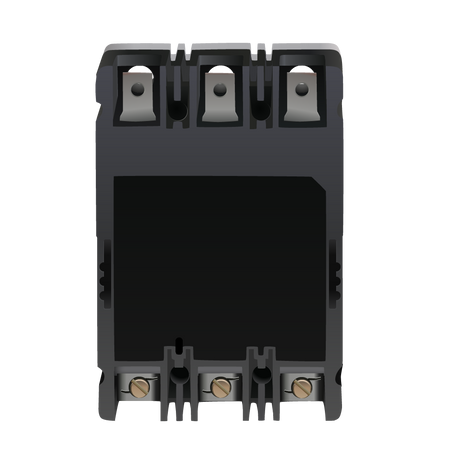

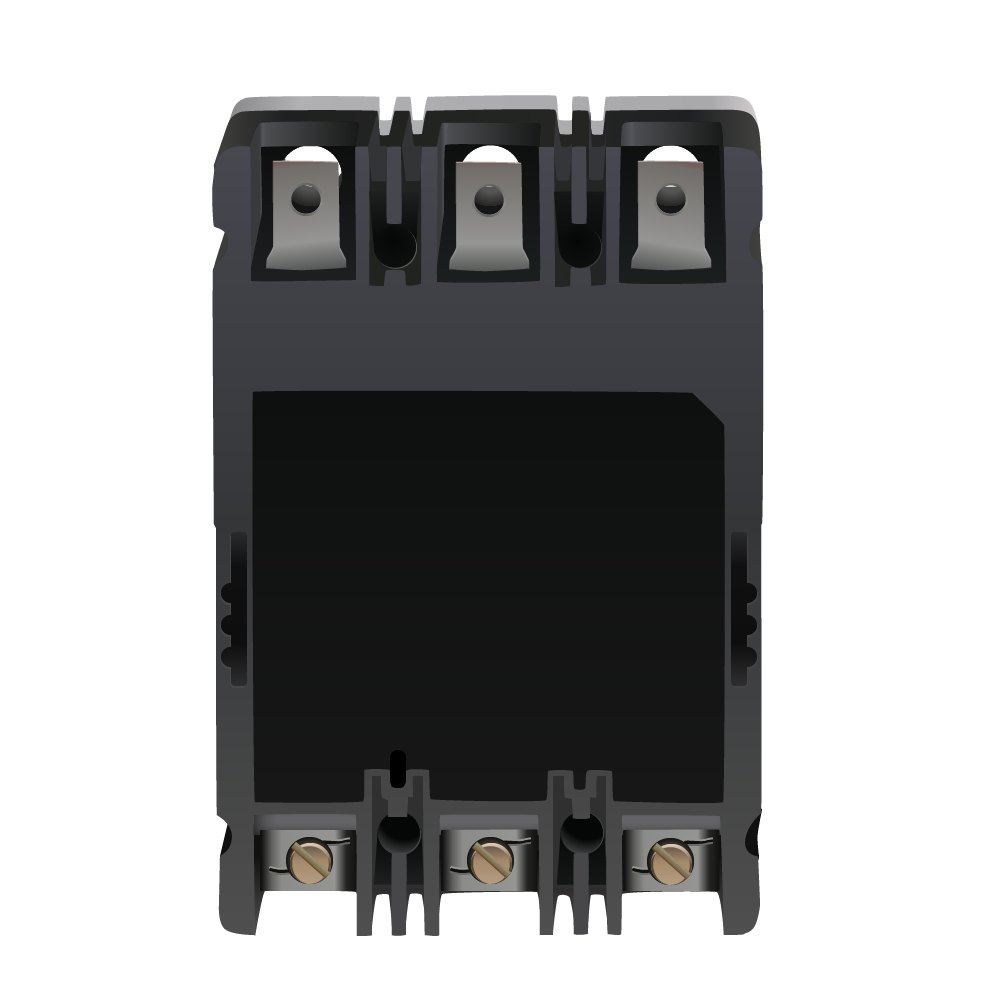

Eaton FD3150 Molded Case Circuit Breaker – 150A – 3-Pole – 600V AC – 65kA @ 240V – Series C FD

The Eaton FD3150 is a 150A, 3-pole molded case circuit breaker from the Eaton Series C F-Frame FD Series. It is a complete breaker with fixed thermal and fixed magnetic trip protection, designed for compatible electrical distribution applications.

The FD3150 is rated for 600V AC and 250V DC and provides interrupting ratings of 65kA @ 240V AC and 35kA @ 480V AC.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Name: Series C Complete Molded Case Circuit Breaker
• Series: Series C
• Type: FD
• Frame: F-Frame
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 600V AC
• DC Voltage Rating: 250V DC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Interrupting Rating: 65kA @ 240V AC; 35kA @ 480V AC
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton
• Authenticity: Authentic Eaton Product

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3150
• Catalog Number: FD3150
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: FD
• Frame: F-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: FD3150
• Breaker Configuration: 3-Pole, 150A
• upc:786679305799

Compatibility:

Designed for use with compatible Eaton Series C FD-frame electrical distribution equipment that accepts the FD Series molded case circuit breaker. The FD3150 is a 3-pole, 150A breaker with fixed thermal and magnetic protection and is rated for 600V AC and 250V DC applications.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, and installation requirements before installation.

Certifications:

• Series C FD Series
• F-Frame
• 150A Rated
• 3-Pole / 3-Phase
• 600V AC Rated
• 250V DC Rated
• 65kA @ 240V AC Interrupting Rating
• 35kA @ 480V AC Interrupting Rating
• Fixed Thermal Protection
• Fixed Magnetic Protection
• Genuine Eaton Product
