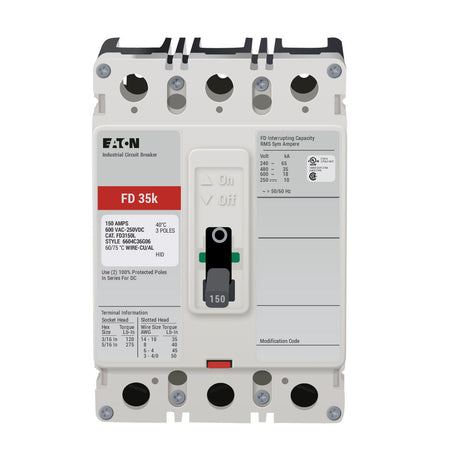

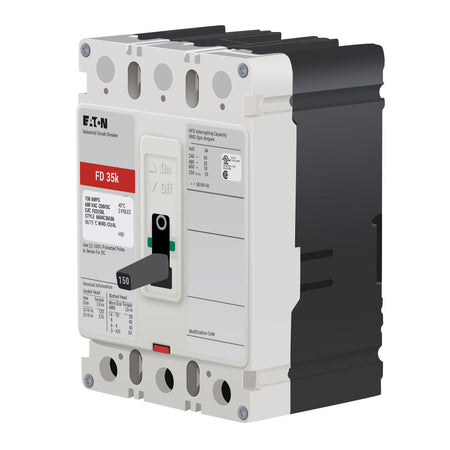

Eaton FD3150L Molded Case Circuit Breaker – 150A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – Series C FD

The Eaton FD3150L is a 150A, 3-pole, 3-phase feed-thru molded case circuit breaker from the Eaton Series C FD Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The FD3150L is rated for 600V and provides a 35kA interrupting rating at 480V with a standard interrupting capacity. It includes line- and load-side lug terminals and is calibrated for 40°C applications.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: FD
• Catalog No.: FD3150L
• Current Rating: 150A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Calibration Temperature: 40°C
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting / Configuration: Feed-Thru
• Terminal Configuration: Line- and Load-Side Lug Terminals
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3150L
• Catalog Number: FD3150L
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: FD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: FD3150L
• Breaker Configuration: 3-Pole, 150A
• upc:
  786679305805

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C FD electrical distribution equipment that accepts FD Series molded case circuit breakers. The FD3150L provides 150A, 3-pole thermal-magnetic protection for compatible 600V applications with a 35kA interrupting rating at 480V.

The breaker features a feed-thru configuration, non-interchangeable LI trip functions, and line- and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip-unit requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• Series C FD Series
• 150A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• 40°C Calibration
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
