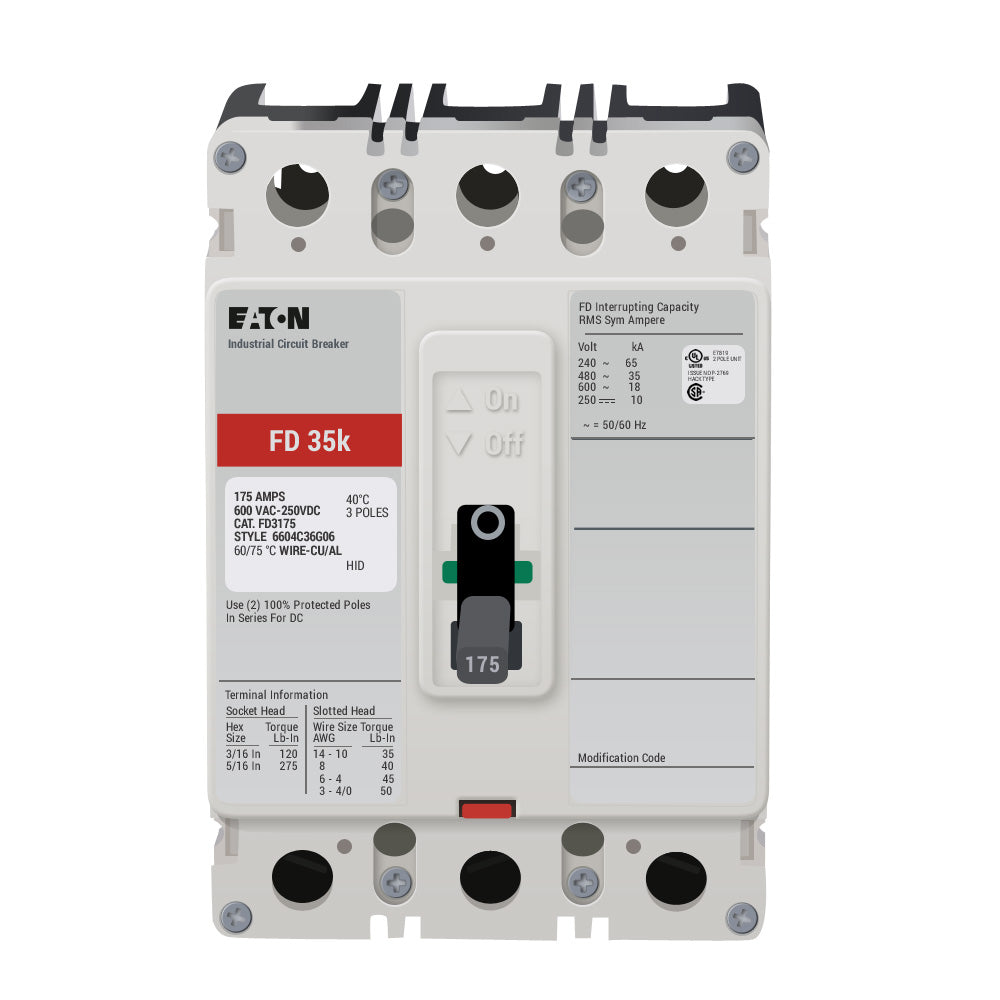

Eaton FD3175 Molded Case Circuit Breaker – 175A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – Series C FD

The Eaton FD3175 is a 175A, 3-pole, 3-phase molded case circuit breaker from the Eaton Series C Type FD Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The FD3175 is rated for 600V and provides a 35kA interrupting rating at 480V. It features a feed-thru configuration with line-side and load-side lug terminals and is rated for operation at 40°C.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: FD
• Type: FD
• Catalog No.: FD3175
• Current Rating: 175A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Connection / Configuration: Feed-Thru

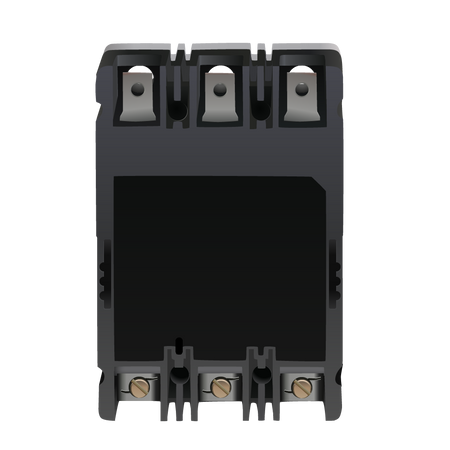

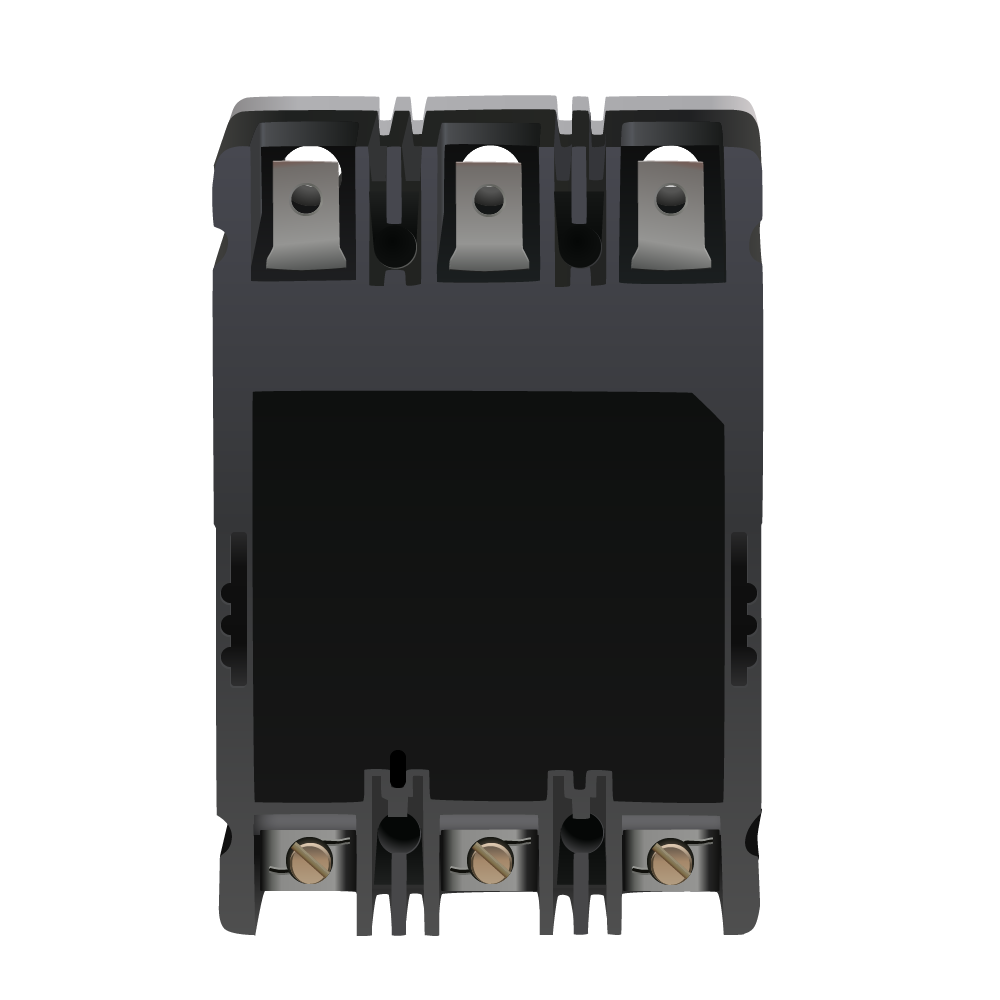

• Terminal Type: Line-Side and Load-Side Lug Terminals
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3175
• Catalog Number: FD3175
• Model: FD3175
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: FD
• Type: FD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 175A
• UPC:786679015384

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C FD electrical distribution equipment that accepts FD Series molded case circuit breakers. The FD3175 provides 175A, 3-pole thermal-magnetic overcurrent protection for compatible 600V applications, with a 35kA interrupting rating at 480V.

The breaker includes line-side and load-side lug terminals, a non-interchangeable trip, and Long-Time and Instantaneous (LI) trip functions. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• Specific Certifications: Not specified
