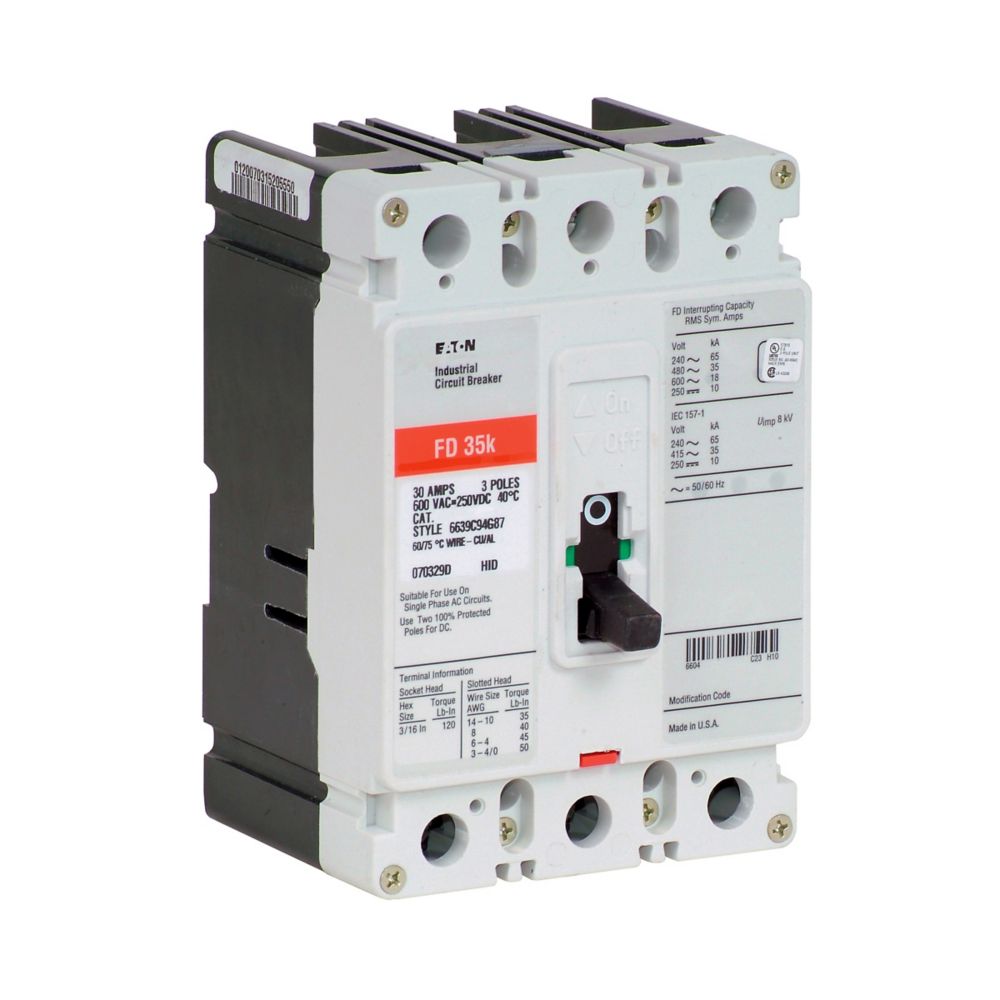

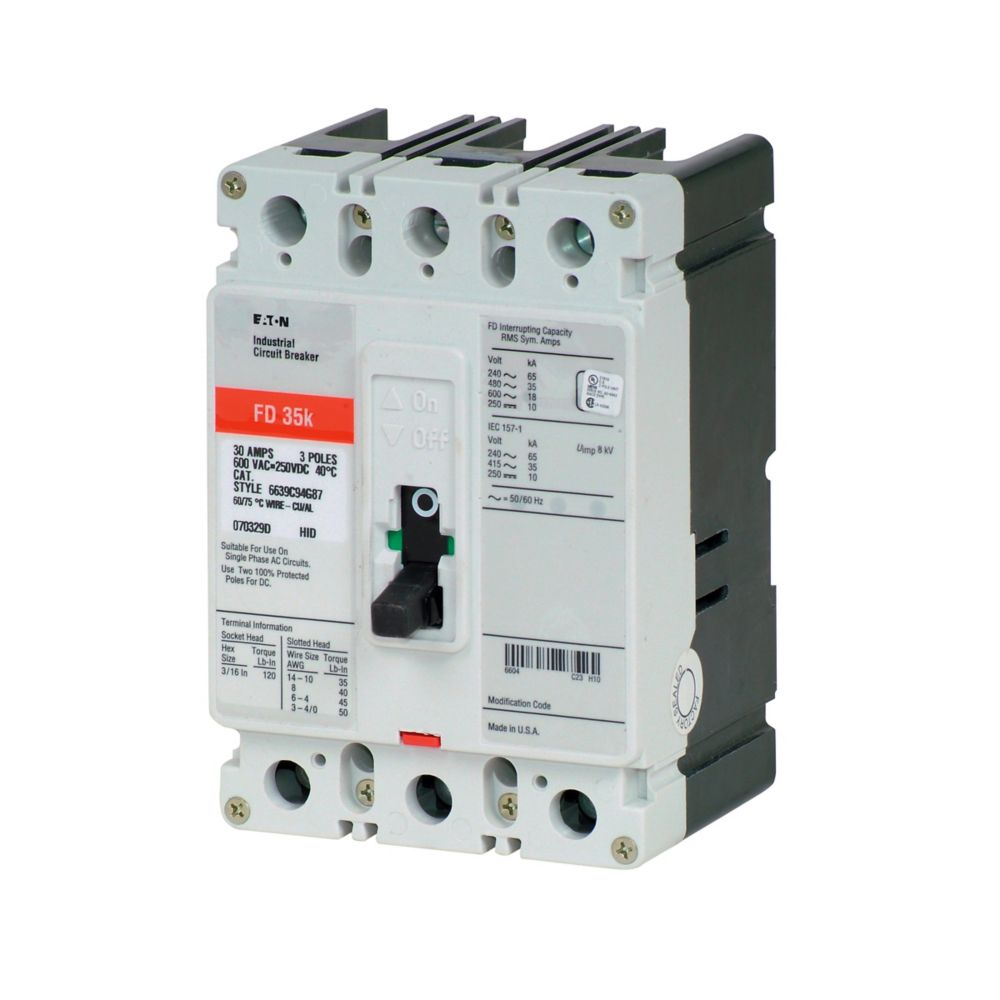

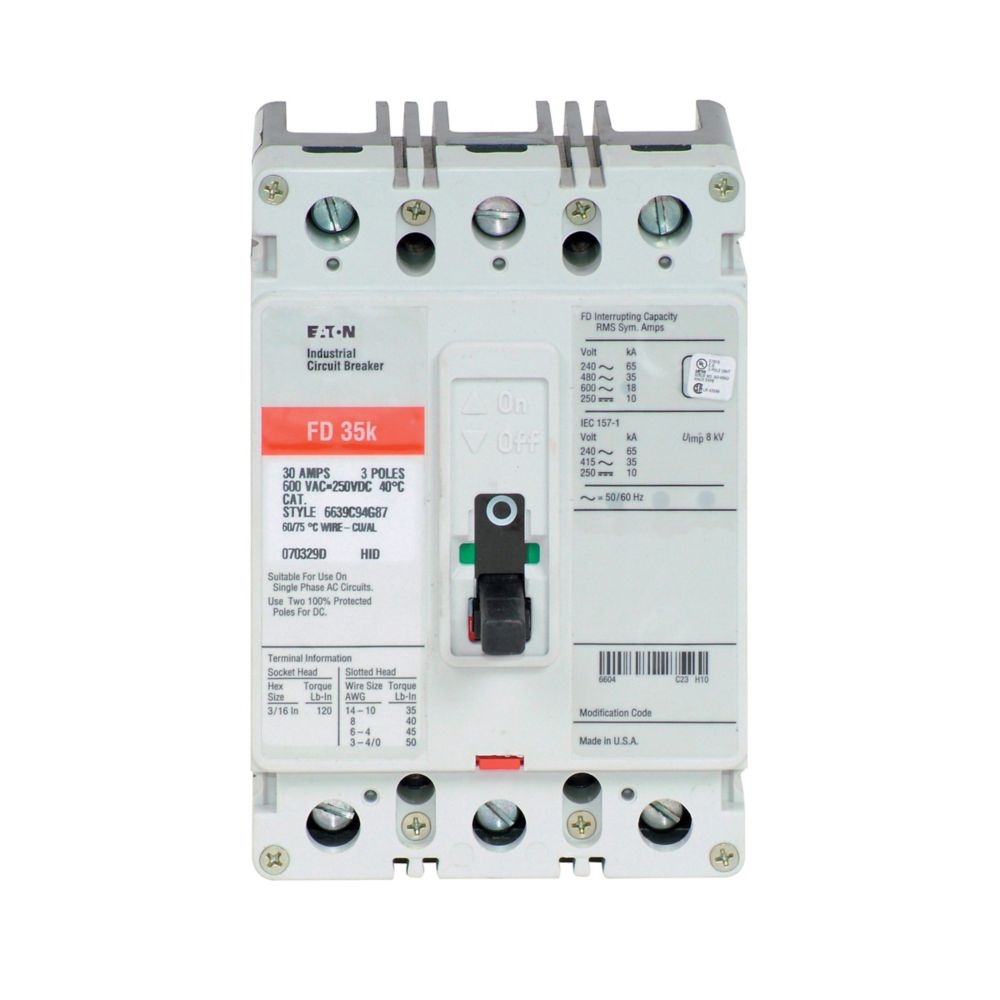

Eaton FD3175L Molded Case Circuit Breaker – 175A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Feed-Thru – Series C FD

The Eaton FD3175L is a 175A, 3-pole, 3-phase molded case circuit breaker from the Eaton / Cutler-Hammer Series C Type FD. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The FD3175L is rated for 600V and provides a 35kA interrupting rating at 480V. It features a feed-thru configuration with line-side and load-side lug terminals and is rated for operation at 40°C.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Product Family: Series C
• Series: Series C
• Type: FD
• Catalog No.: FD3175L
• Current Rating: 175A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Connection / Configuration: Feed-Thru
• Terminal Type: Line-Side and Load-Side Lug Terminals
• Ambient Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3175L
• Catalog Number: FD3175L
• Model: FD3175L
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: FD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 175A
• UPC:786679015414

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C Type FD electrical distribution equipment that accepts FD Series molded case circuit breakers. The FD3175L provides 175A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a non-interchangeable LI trip, feed-thru configuration, and line-side and load-side lug terminals. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
