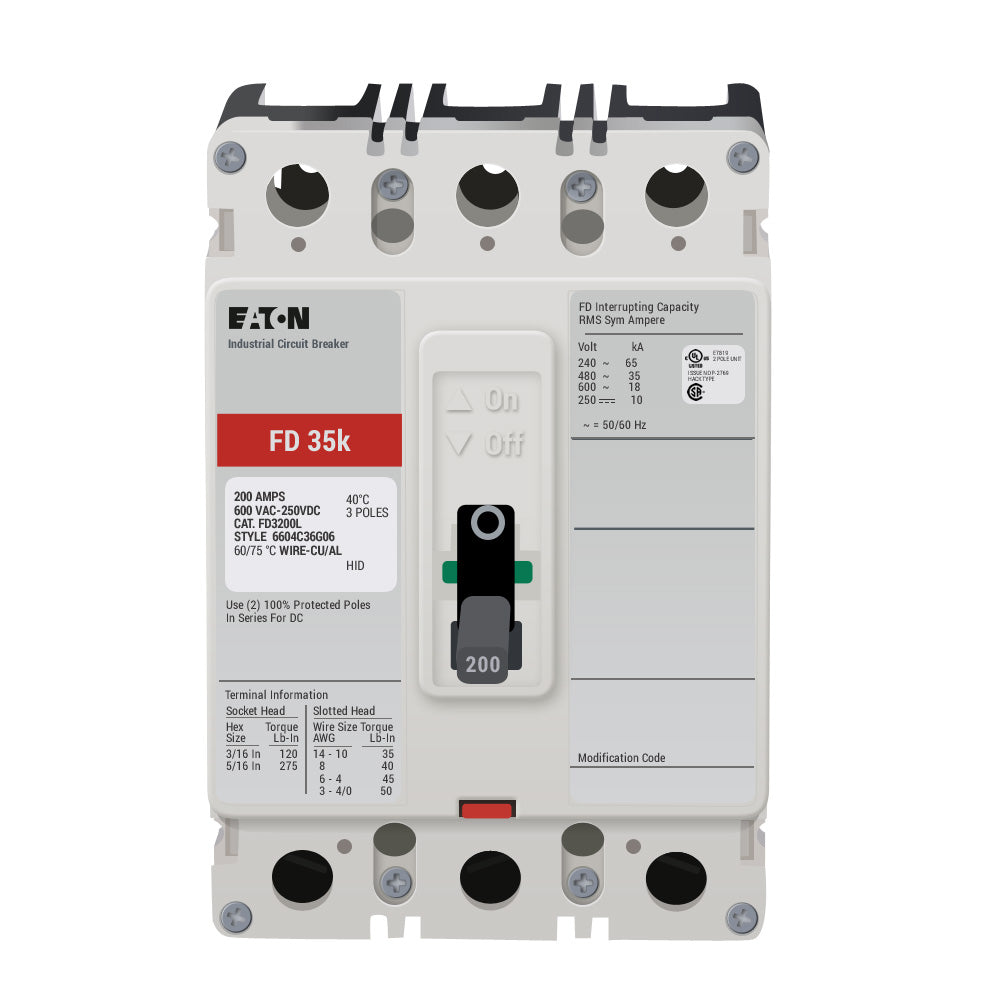

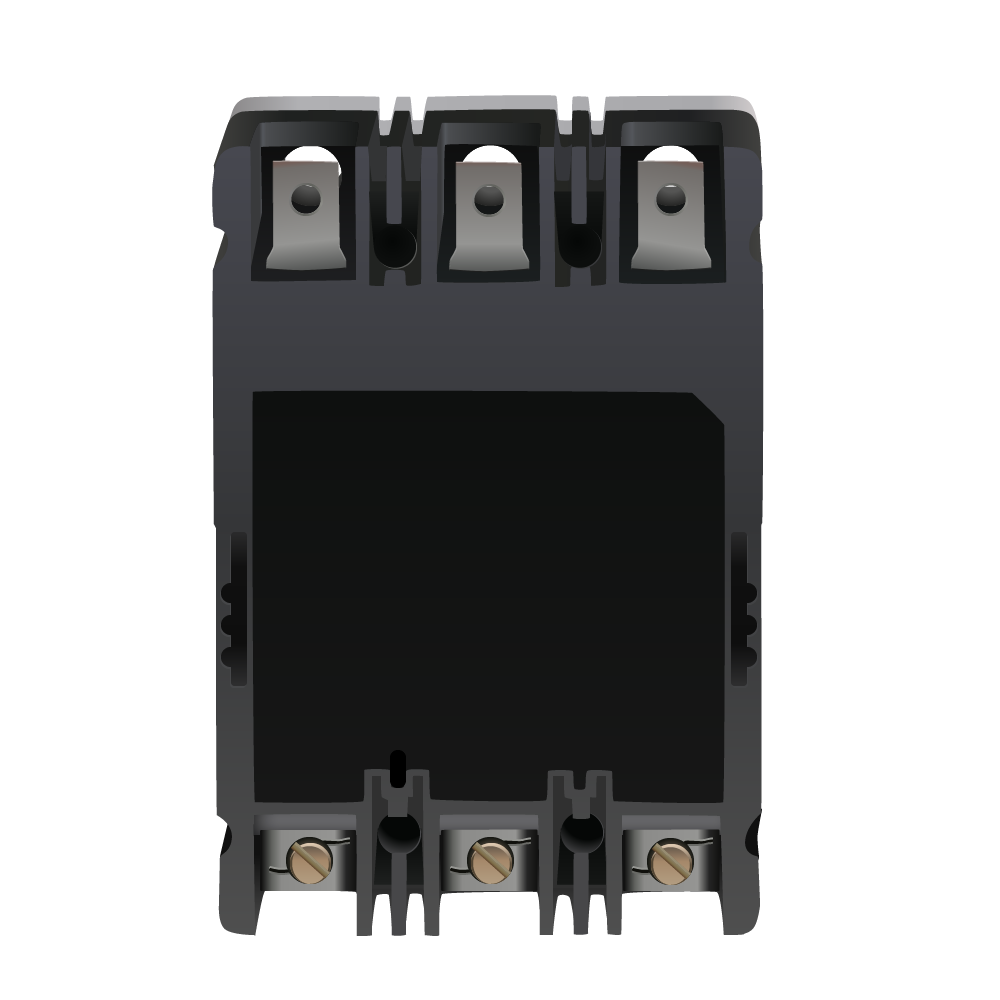

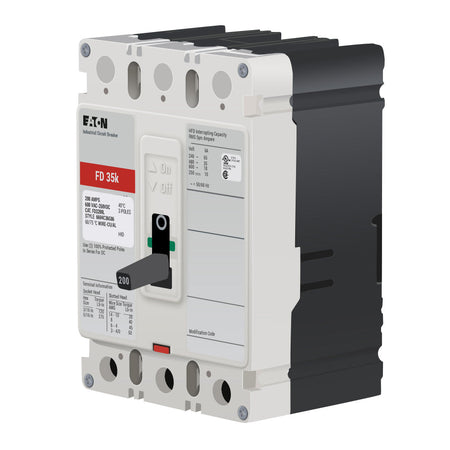

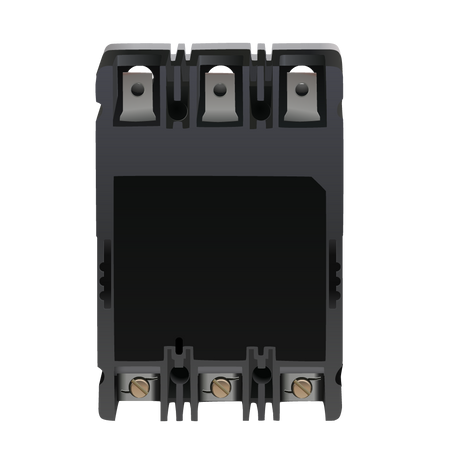

Eaton FD3200L Molded Case Circuit Breaker – 200A – 3-Pole – 600V – 35kA @ 480V – Feed-Thru – Series C FD

The Eaton FD3200L is a 200A, 3-pole molded case circuit breaker from the Cutler-Hammer Series C FD family. It is rated for 600V and provides a 35kA interrupting rating at 480V. The breaker features thermal-magnetic protection, LI long-time and instantaneous trip functions, and a feed-thru configuration with line- and load-side lug terminals. It includes a non-interchangeable trip and is designed for compatible electrical distribution applications.

Specifications:

• Manufacturer: Eaton / Cutler-Hammer / Westinghouse
• Product Type: Molded Case Circuit Breaker
• Catalog No.: FD3200L
• Product Family: Series C
• Series: FD
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA at 480V
• Interrupting Capacity: Standard
• Trip Type: Thermal-Magnetic
• Trip Functions: LI – Long-Time and Instantaneous
• Trip Configuration: Non-Interchangeable
• Mounting/Configuration: Feed-Thru
• Terminal Type: Line- and Load-Side Lug Terminals
• Ambient Rating: 40°C
• Brand: Eaton / Cutler-Hammer

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD3200L
• Catalog Number: FD3200L
• Model: FD3200L
• Product Family: Eaton / Cutler-Hammer Series C
• Series: FD
• Brand: Eaton / Cutler-Hammer
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Configuration: 3-Pole, 200A
• upc:
  786679015407

Compatibility:

Designed for use with compatible Eaton / Cutler-Hammer Series C FD electrical distribution equipment that accepts FD-type molded case circuit breakers. The FD3200L provides 200A thermal-magnetic protection with LI long-time and instantaneous trip functions and a feed-thru configuration with line- and load-side lug terminals.

Always verify the specific panelboard, switchboard, or electrical equipment model, approved breaker type, system voltage, pole configuration, interrupting rating, terminal arrangement, and installation requirements before installation.

Certifications:

• 200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA Interrupting Rating at 480V
• Thermal-Magnetic Protection
• LI Long-Time and Instantaneous Trip
• Non-Interchangeable Trip
• Feed-Thru Configuration
• Line- and Load-Side Lug Terminals
• 40°C Ambient Rating
• Series C FD
• Genuine Eaton / Cutler-Hammer Product
