Eaton FD3225 Molded Case Circuit Breaker – 225A – 3-Pole – 600VAC – 65kA @ 240VAC – Series C FD

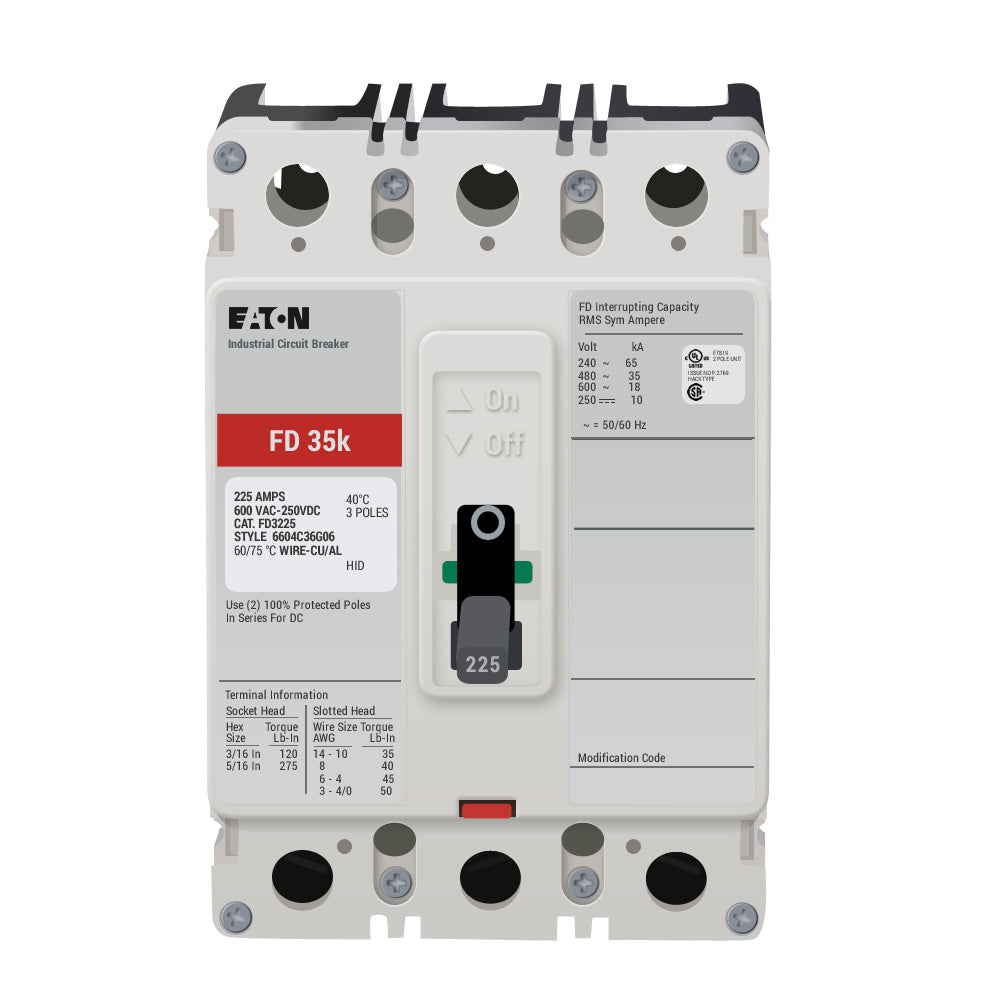

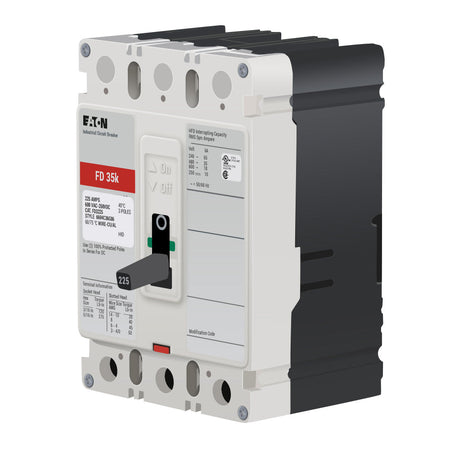

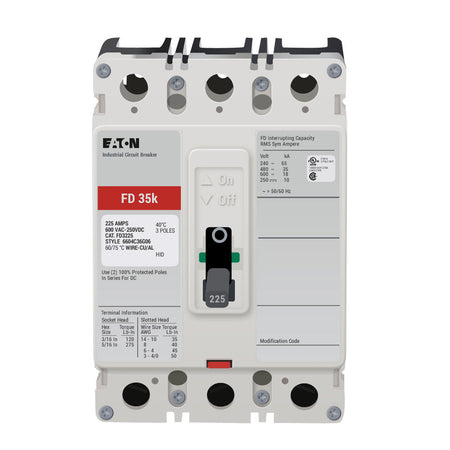

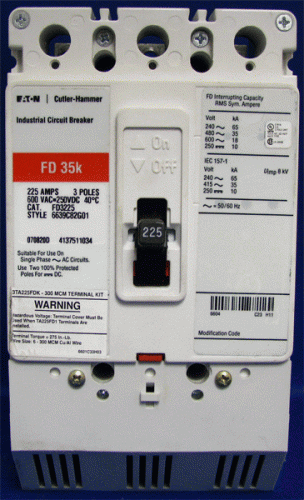

The Eaton FD3225 is a 225A, 3-pole molded case circuit breaker from the Eaton Series C F-frame FD family. It is rated for 600VAC and 250VDC and provides interrupting ratings of 65kA at 240VAC and 35kA at 480VAC. The breaker features fixed thermal and fixed magnetic trip protection and is supplied as a complete breaker.

Specifications:

• Manufacturer : Eaton
• Product Type : Molded Case Circuit Breaker
• Series : Series C
• Frame : F-Frame
• Type : FD
• Catalog No. : FD3225
• Current Rating : 225A
• Number of Poles : 3-Pole
• Phase : 3-Phase
• AC Voltage Rating : 600VAC
• DC Voltage Rating : 250VDC
• Interrupting Rating : 65kA @ 240VAC; 35kA @ 480VAC
• Trip Type : Fixed Thermal / Fixed Magnetic
• Breaker Configuration : Complete Breaker

Part Numbers & Identification:

• Manufacturer Part Number (MPN) : FD3225
• Catalog Number : FD3225
• Product Family : Series C FD
• Series : Series C
• Frame : F-Frame
• Type : FD
• Brand : Eaton
• Manufacturer : Eaton
• Product Type : Molded Case Circuit Breaker
• Model : FD3225
• Breaker Configuration : 3-Pole, 225A
• upc:786679015360

Compatibility:

Designed for use with compatible Eaton Series C F-frame FD molded case circuit breaker applications. The FD3225 is a 3-pole, 225A breaker with fixed thermal and fixed magnetic trip protection and ratings up to 600VAC / 250VDC.

Always verify the specific electrical distribution equipment, approved breaker type, system voltage, pole configuration, interrupting rating, mounting arrangement, and terminal requirements before installation.

Certifications:

• Series C FD
• F-Frame
• 225A Rating
• 3-Pole / 3-Phase
• 600VAC / 250VDC Rated
• 65kA @ 240VAC Interrupting Rating
• 35kA @ 480VAC Interrupting Rating
• Fixed Thermal / Fixed Magnetic Trip
• Complete Breaker
