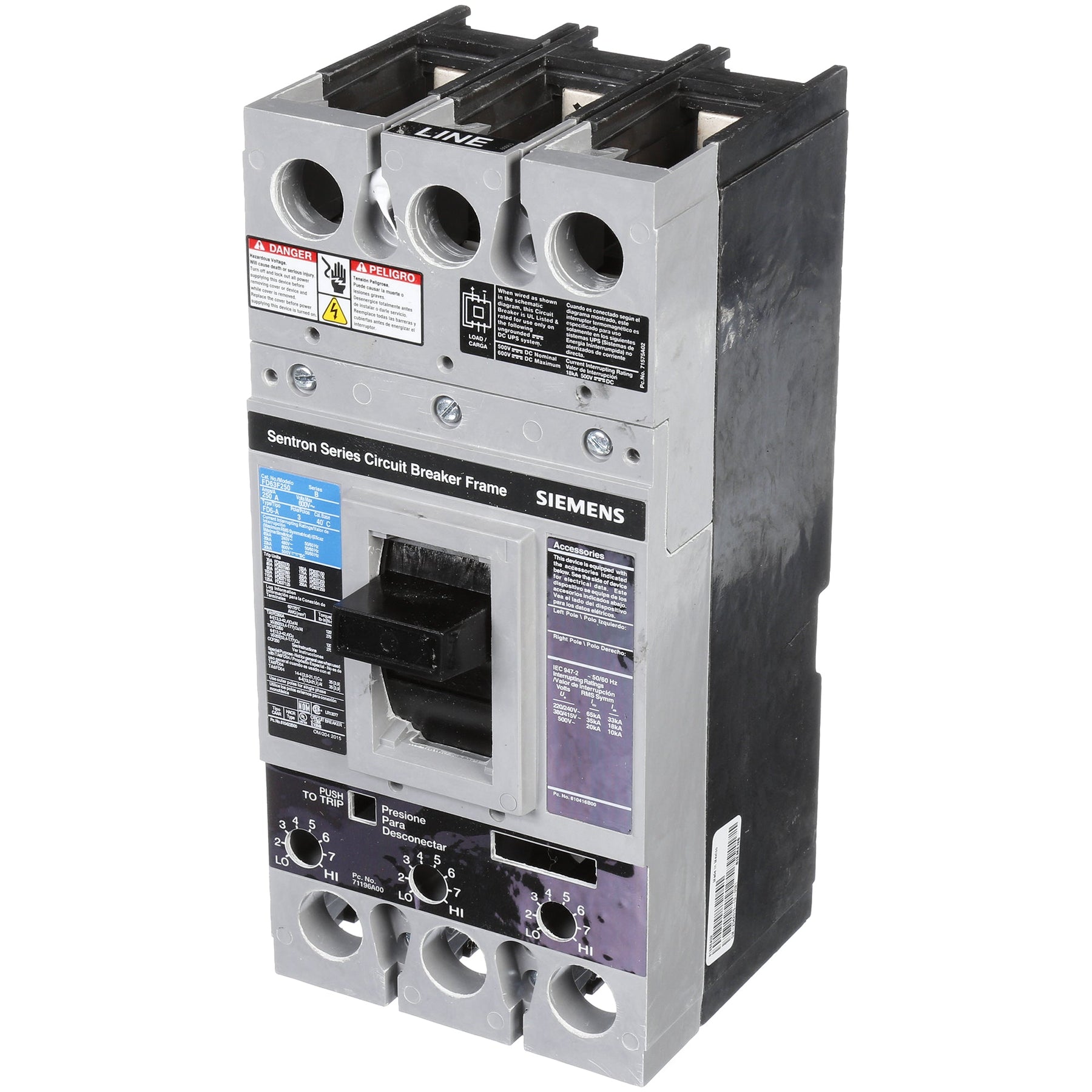

Siemens FD63F250 Molded Case Circuit Breaker Frame – 250A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – Sentron FD Series

The Siemens FD63F250 is a 250A, 3-pole, 3-phase molded case circuit breaker frame from the Siemens Sentron FD Series. This product is supplied as a frame only, with the trip unit and lugs sold separately.

The FD63F250 is rated for 600V and provides a 35kA interrupting rating at 480V. It features a thermal-magnetic circuit breaker frame and uses a bolt-on mounting configuration for compatible Siemens electrical distribution equipment.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker Frame
• Product Family: Sentron
• Series: FD
• Type: FD
• Catalog No.: FD63F250
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Configuration: Frame Only
• Trip Unit: Sold Separately
• Lugs: Sold Separately
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FD63F250
• Catalog Number: FD63F250
• Model: FD63F250
• Product Family: Siemens Sentron Circuit Breakers
• Series: FD
• Type: FD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker Frame
• Breaker Configuration: 3-Pole, 250A
• Frame Configuration: Frame Only
• UPC:783643211537

Compatibility:

Designed for use with compatible Siemens Sentron FD Series electrical distribution equipment that accepts the specified bolt-on breaker frame and separately supplied trip components.

The FD63F250 is supplied as a frame only. The required trip unit and lugs must be purchased separately and must be compatible with the specific breaker frame and application.

Always verify the specific panelboard or electrical equipment model, approved frame and trip-unit combination, system voltage, available fault current, pole configuration, terminal requirements, mounting arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided.
