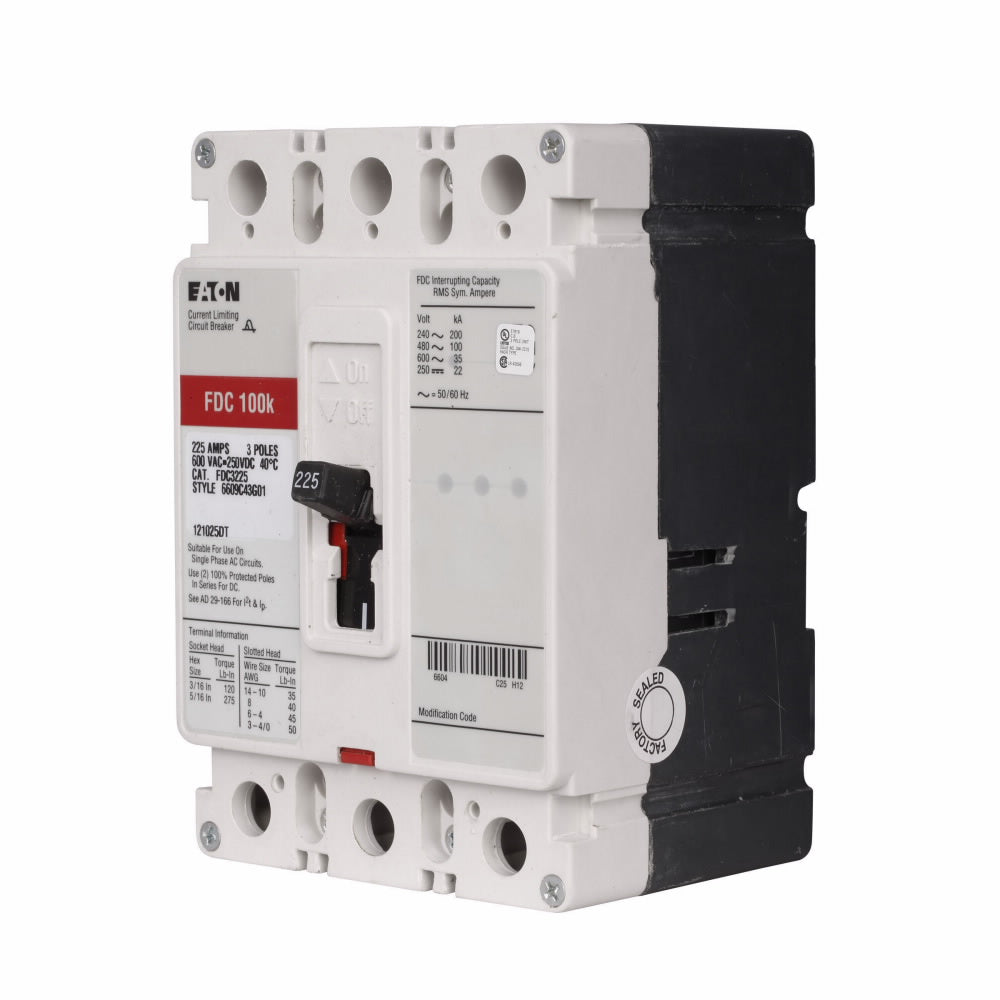

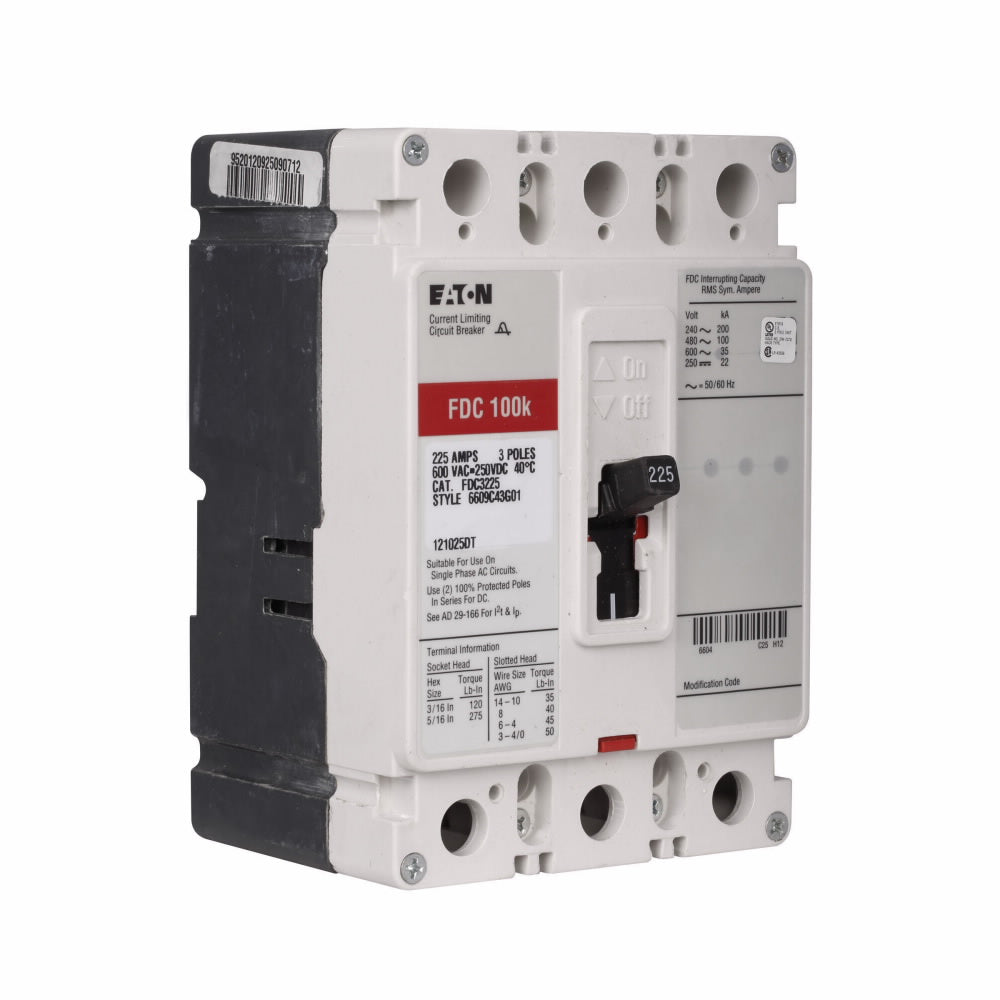

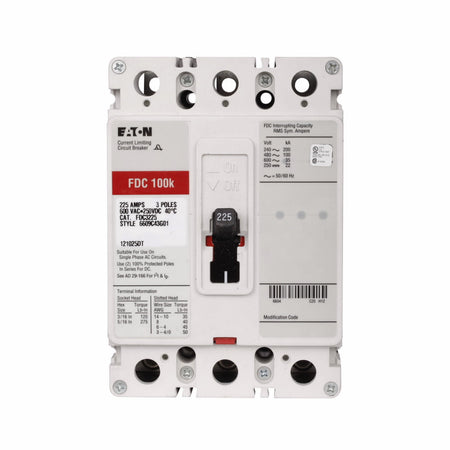

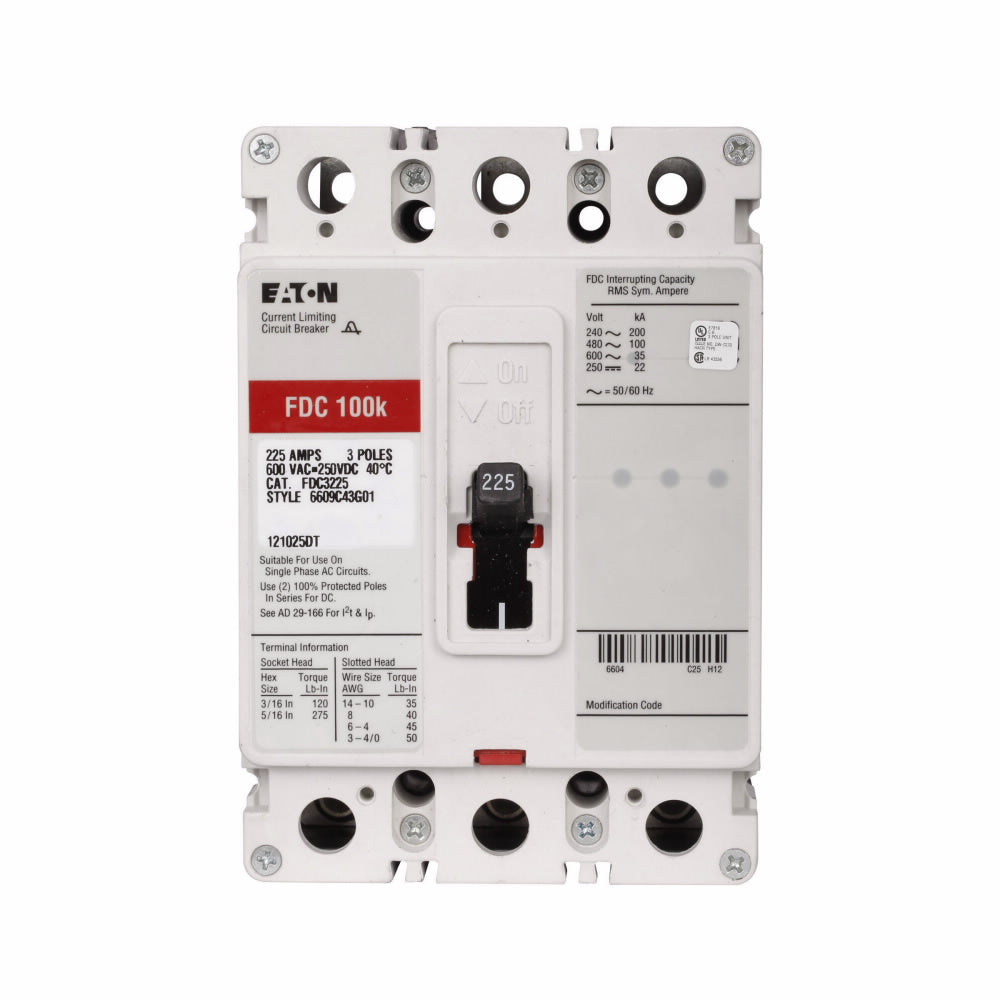

Eaton FDC3175L 175 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 100 kA@480 V – Feed-Thru – Series C

The Eaton FDC3175L is a 175 Amp, 3-pole molded case circuit breaker from the Eaton / Cutler-Hammer / Westinghouse Series C, Type FDC. It is rated for 600 V with a 100 kA interrupting rating at 480 V and provides current-limiting performance. The breaker is designed for 40°C applications with feed-thru mounting and features a non-interchangeable thermal-magnetic trip with LI (Long-Time and Instantaneous) trip functions. It includes line and load-side lug terminals.

Specifications

• Manufacturer: Eaton
• Brand: Cutler-Hammer
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Type: FDC
• Catalog Number / MPN: FDC3175L
• Primary Rating: 175 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 100 kA @ 480 V
• Interrupting Capacity: Current Limiting
• Ambient Temperature Rating: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Feed-Thru
• Terminals: Line & Load-Side Lug Terminals
• UPC: 786679053522

Compatibility

The Eaton FDC3175L is designed for compatible Eaton / Cutler-Hammer Series C Type FDC electrical distribution and circuit protection applications.
