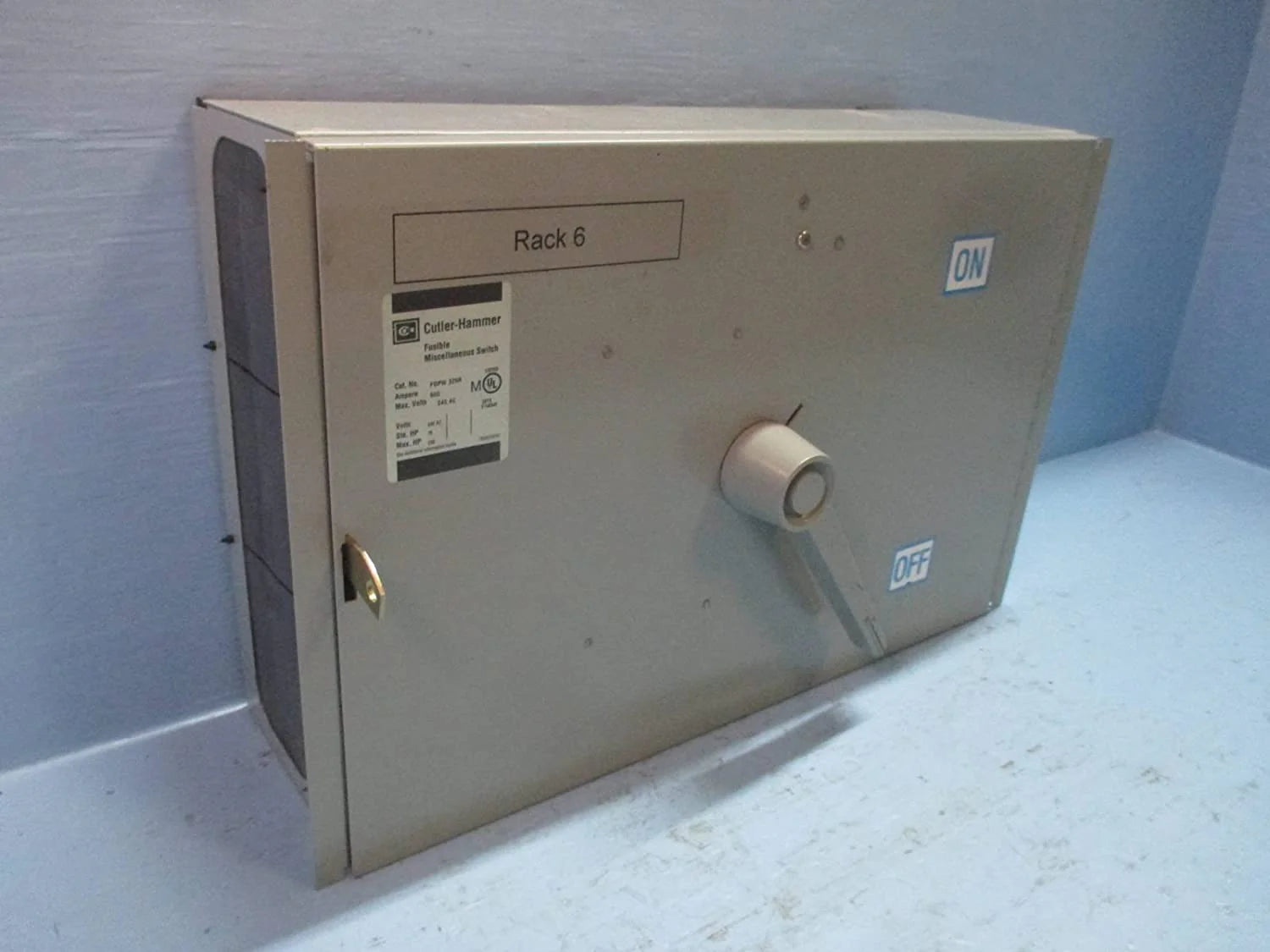

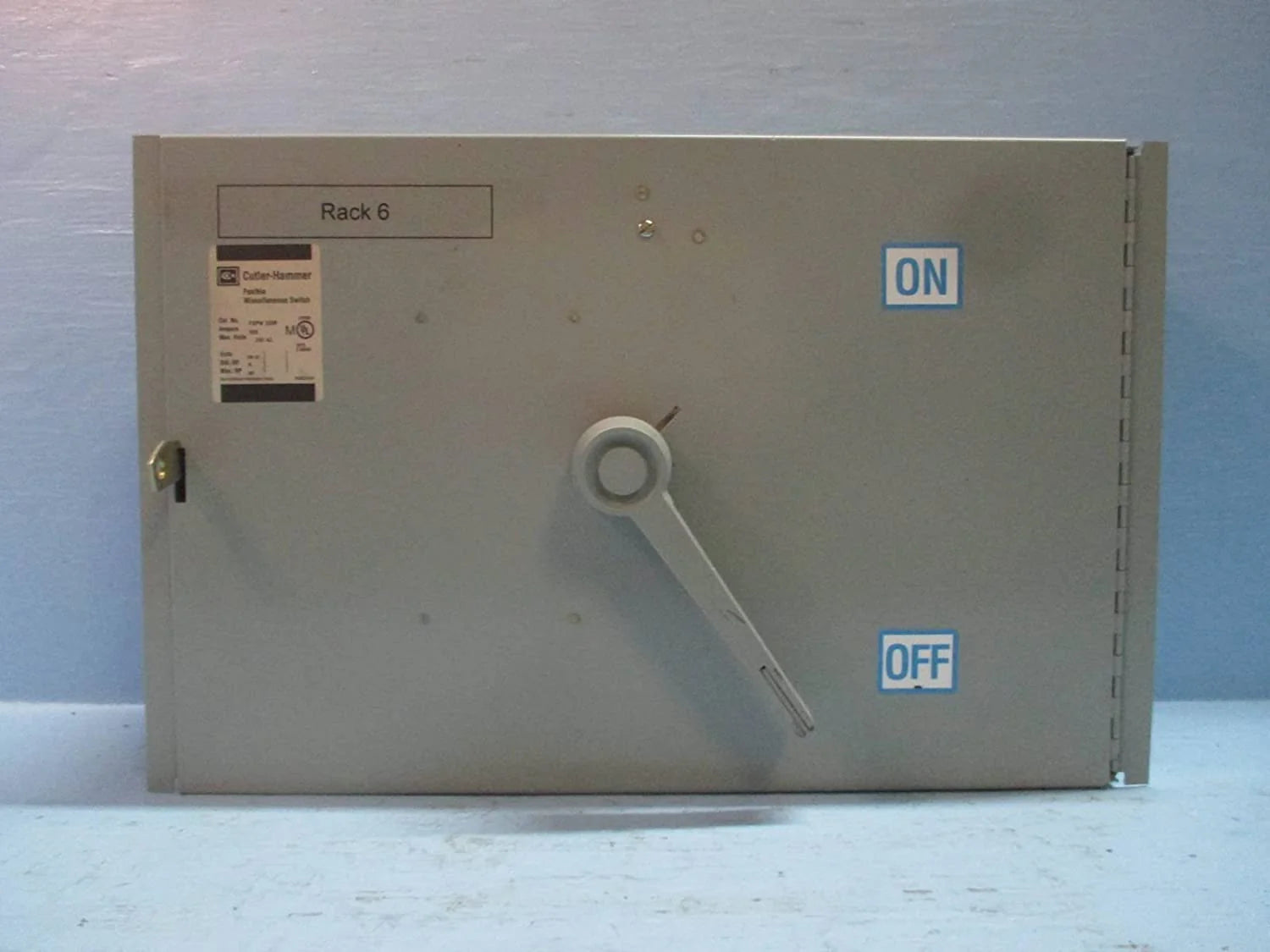

Eaton FDPW326R Panel Board Switch – 600A – 3-Pole / 3-Phase – 240V AC – 200kAIC – Single Horizontal Branch – FDPW Series

The Eaton FDPW326R is a 600A, 3-pole, 3-phase fusible panelboard switch from the Eaton FDPW Series. It is designed for branch circuit power distribution in compatible commercial and industrial electrical systems.

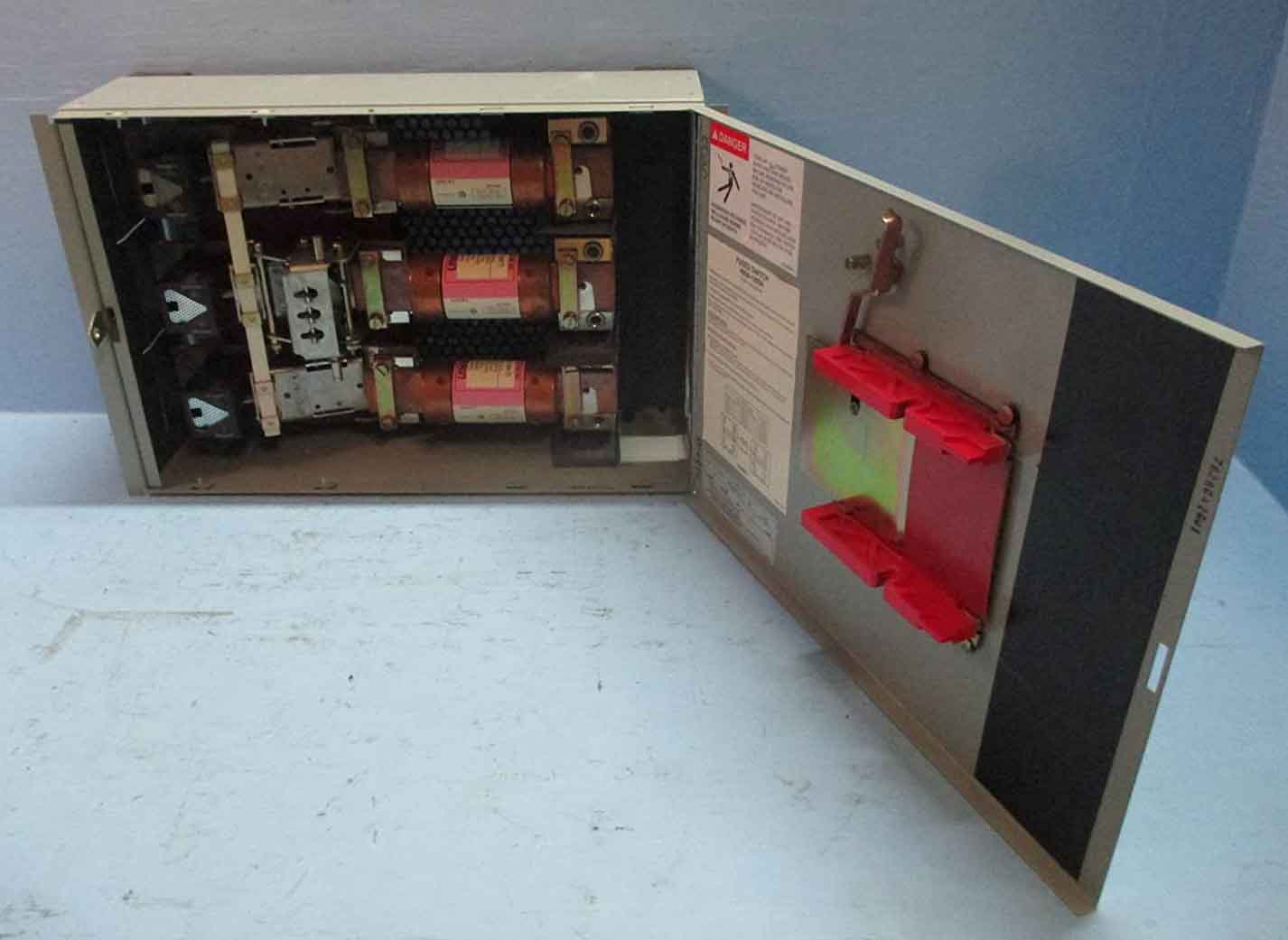

The switch is rated for 240V AC and provides a 200kAIC interrupting rating. It utilizes Class R fuses and features a quick-make/quick-break operating mechanism. The FDPW326R is specified in a single, horizontal branch configuration and is designed for compatible Eaton Pow-R-Line 4F (PRL4-F) and CDP/FDP distribution panelboards.

Specifications:

• Manufacturer: Eaton
• Product Type: Fusible Panelboard Switch
• Product Family: FDPW
• Series: FDPW
• Catalog No.: FDPW326R
• Current Rating: 600A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 240V AC
• Interrupting Rating: 200kAIC
• Fuse Provision: Class R
• Connection: Branch
• Configuration: Single, Horizontal
• Operating Mechanism: Quick-Make / Quick-Break
• Maximum Horsepower: 200 HP @ 240V AC
• Wire Range: (2) #4–600 kcmil or (4) 3/0–250 kcmil
• Approximate Weight: 51.7 lbs
• Dimensions (L × W × H): 25 × 16.5 × 10.5 in
• Application: Branch Circuit Power Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FDPW326R
• Catalog Number: FDPW326R
• Model: FDPW326R
• Product Family: Eaton FDPW Panelboard Switches
• Series: FDPW
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Fusible Panelboard Switch
• Configuration: Single, Horizontal, Branch
• Breaker / Switch Configuration: 3-Pole, 600A
• GTIN: 786679783917
• UPC: 786679783917
• Country of Origin: Mexico

Compatibility:

Designed for use with compatible Eaton Pow-R-Line 4F (PRL4-F) panelboards and Eaton CDP/FDP distribution panelboards. The FDPW326R is a 600A, 3-pole, 240V AC fusible panelboard switch intended for branch-mounted applications.

The switch uses Class R fuses, supports the specified conductor configurations, and is designed for compatible Eaton power distribution equipment. Always verify the specific panelboard model, approved switch type, fuse requirements, system voltage, available fault current, conductor configuration, mounting arrangement, and installation requirements before installation.

Certifications:

• UL Listed
• Eaton FDPW Series
• 600A Rated
• 3-Pole / 3-Phase
• 240V AC Rated
• 200kAIC Interrupting Rating
• Class R Fuse Provision
• Single Horizontal Configuration
• Branch Connection
• Quick-Make / Quick-Break Mechanism
• 200 HP @ 240V AC
