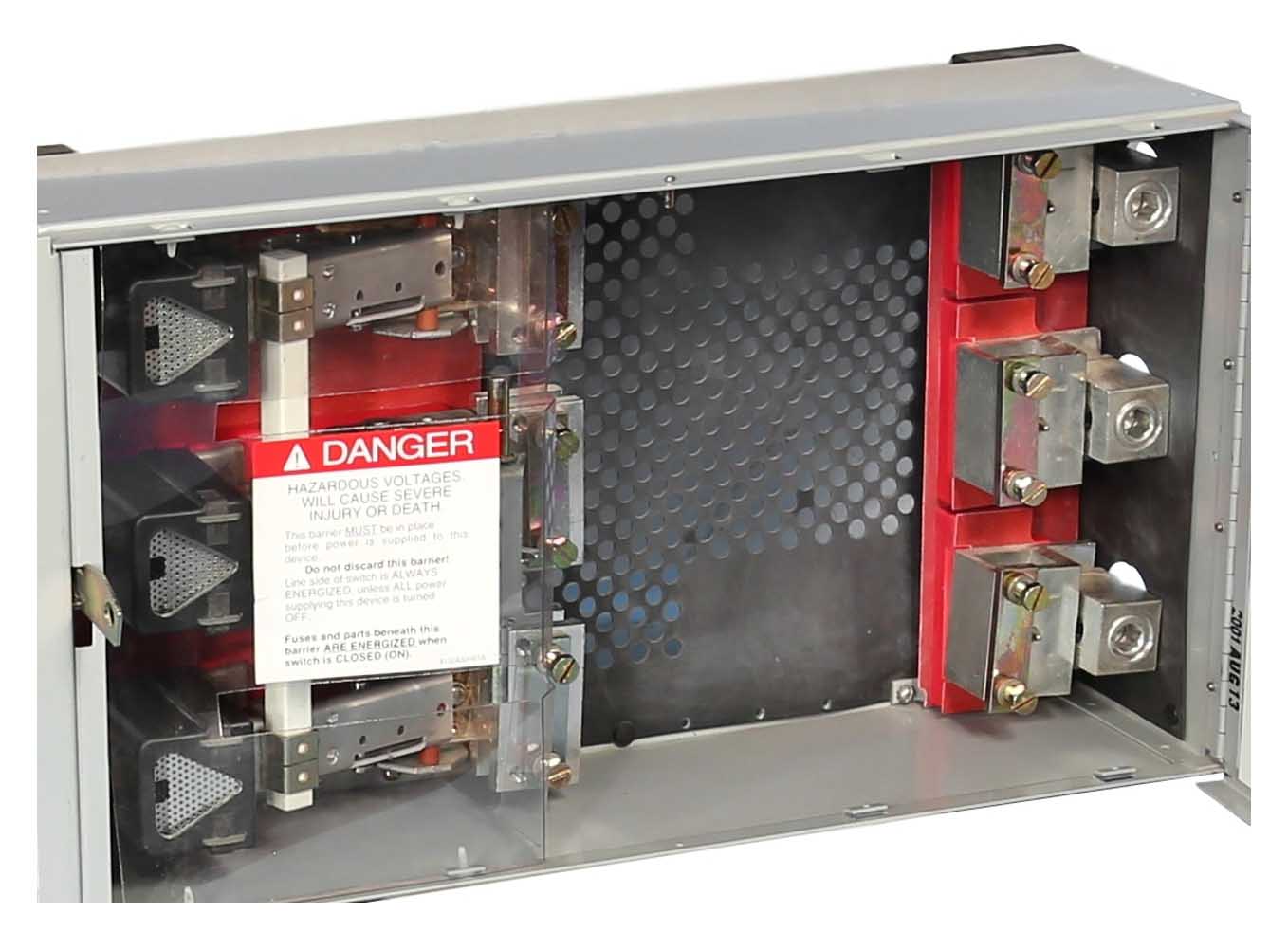

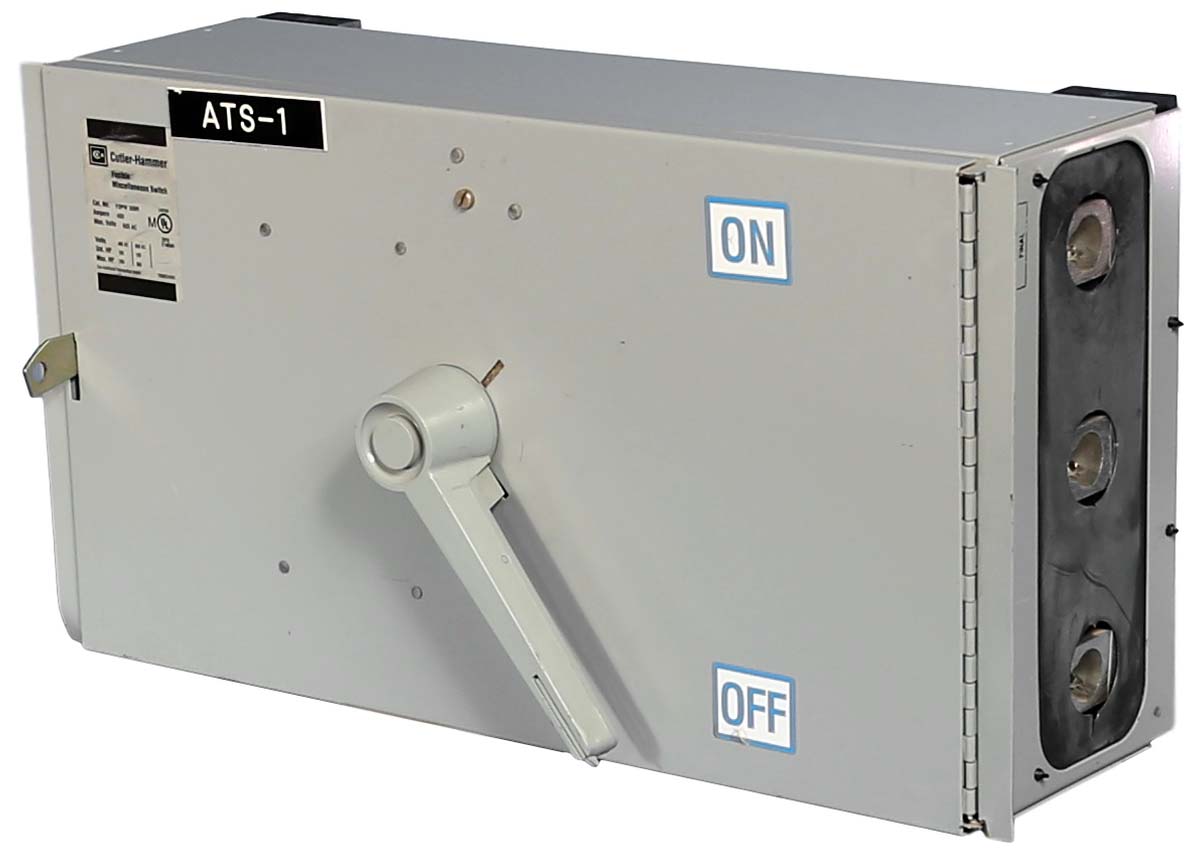

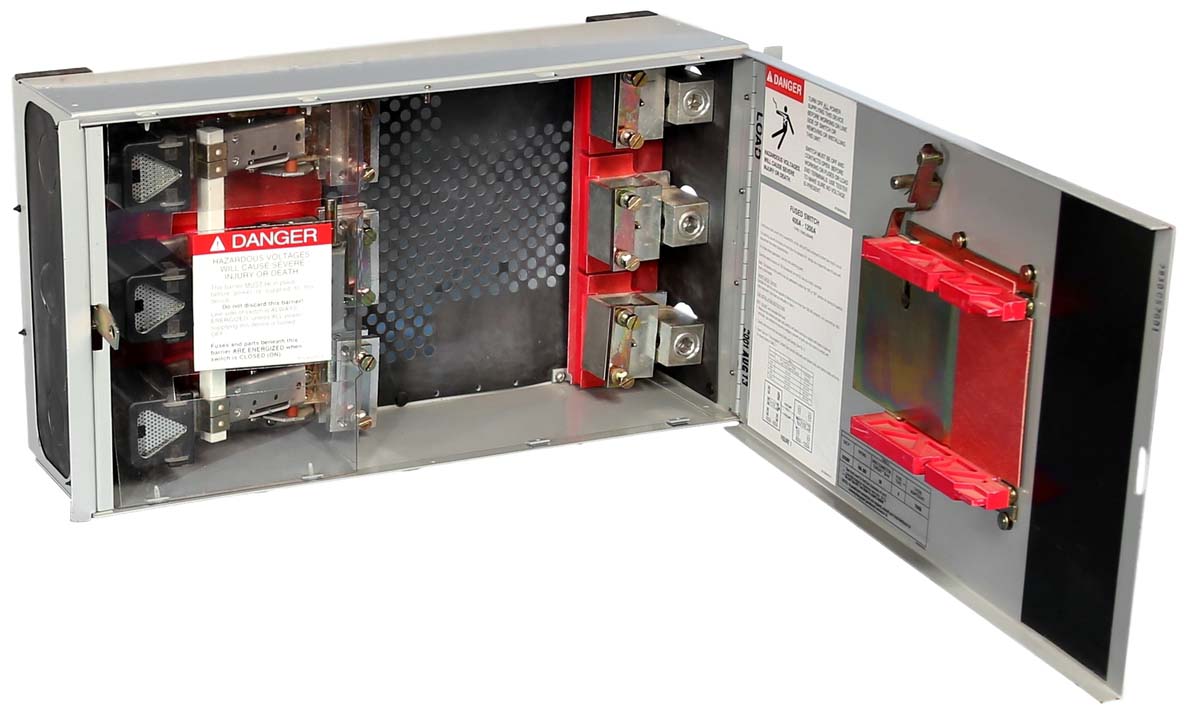

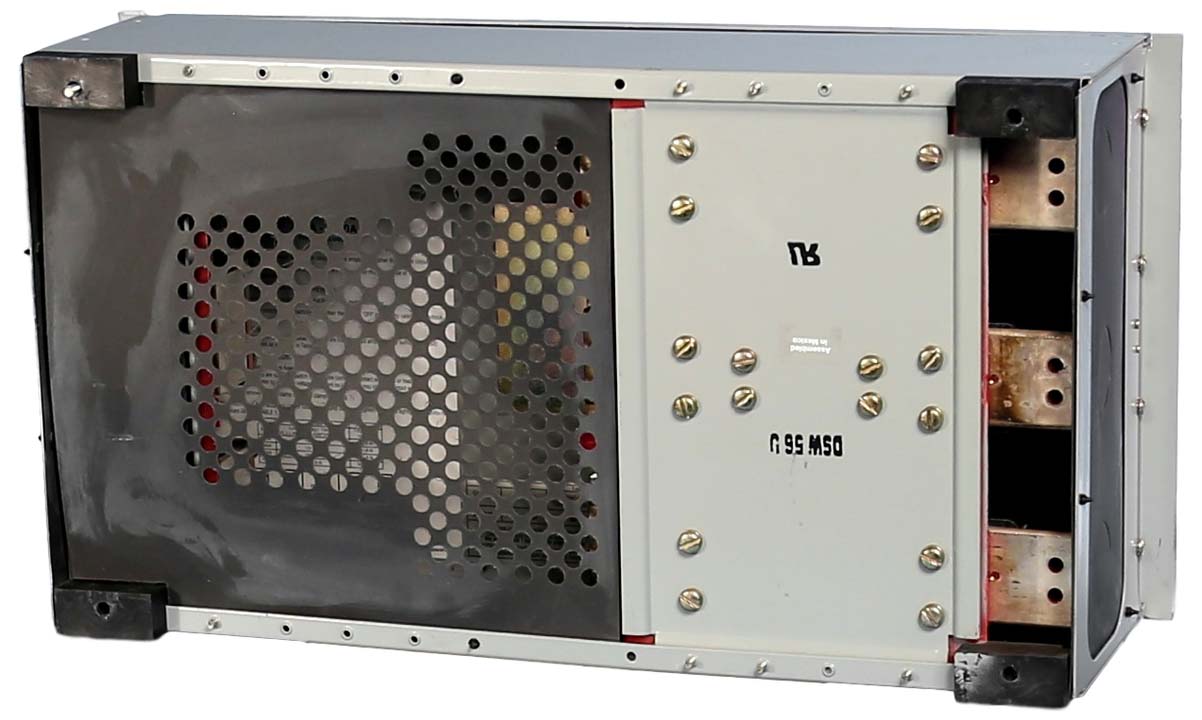

Eaton FDPW365R Panel Board Switch – 400A – 3-Pole – 600V AC – 200kAIC – Fusible – FDPW Series

The Eaton FDPW365R is a 400A, 3-pole fusible panelboard switch from the Eaton FDPW Series. It is designed for compatible panelboard applications and uses Class R fuses for overcurrent protection.

The switch is rated for 600V AC with a 200kAIC rating. It supports 250–750 MCM conductors or (2) 3/0–250 MCM conductors and is configured as a single, horizontal branch panelboard switch. The unit is suitable for loads up to 125 HP at 240V AC, 250 HP at 480V AC, and 350 HP at 600V AC.

Specifications:

• Manufacturer: Eaton
• Product Type: Panel Board Switch
• Product Family: FDPW
• Series: FDPW
• Catalog No.: FDPW365R
• Current Rating: 400A
• Number of Poles: 3-Pole
• Voltage Rating: 600V AC
• Interrupting Rating: 200kAIC
• Switch Type: Fusible
• Fuse Class: Class R
• Conductor Range: 250–750 MCM or (2) 3/0–250 MCM
• Branch Configuration: Single, Horizontal
• Horsepower Rating: 125 HP @ 240V AC; 250 HP @ 480V AC; 350 HP @ 600V AC
• Application: Panelboard Branch Circuit Switching and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FDPW365R
• Catalog Number: FDPW365R
• Model: FDPW365R
• Product Family: Eaton FDPW Panelboard Switches
• Series: FDPW
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Fusible Panel Board Switch
• Configuration: 3-Pole, 400A
• UPC:786679913659

Compatibility:

Designed for use with compatible Eaton FDPW Series panelboard systems that accept fusible panelboard switches. The FDPW365R is a 3-pole, 400A switch rated for 600V AC and designed for use with Class R fuses.

The switch accommodates 250–750 MCM conductors or (2) 3/0–250 MCM conductors and supports the stated horsepower ratings at 240V, 480V, and 600V AC. Always verify the specific panelboard model, approved switch configuration, fuse requirements, system voltage, available fault current, conductor size, and installation requirements before installation.

Certifications:

• No specific certification information provided
