Eaton FDPWT3211R 30 Amp Fusible Panelboard Switch – 3 Pole – 240 V AC / 250 V DC – 200 kAIC@240 V AC – Class R Fuses – Twin Horizontal – Branch

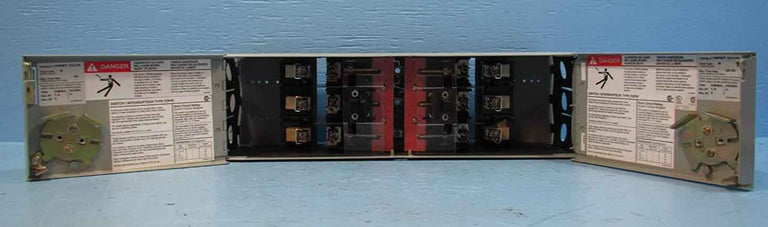

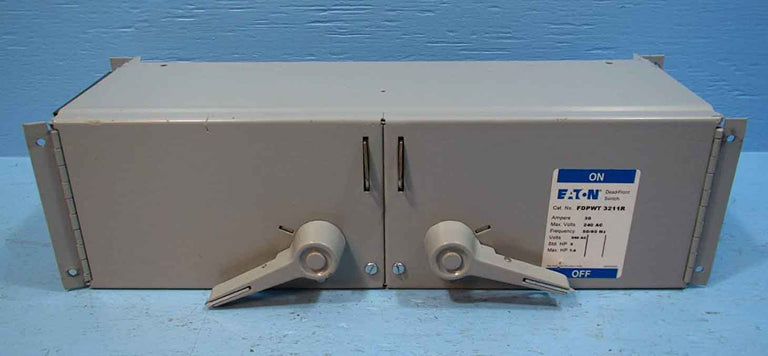

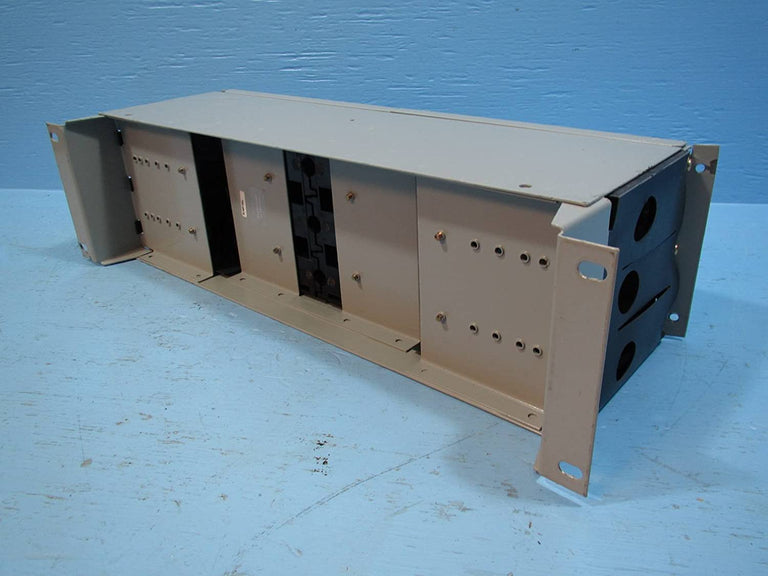

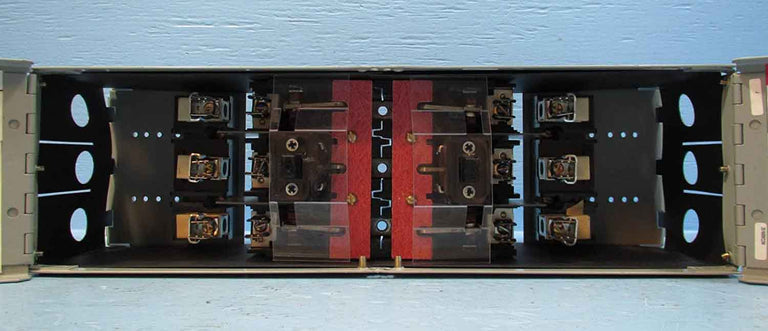

The Eaton FDPWT3211R is a twin, horizontal fusible panelboard switch from the Eaton FDPW Series. It features a three-pole configuration with two switch units, each rated at 30 Amp. The switch is rated for 240 V AC and 250 V DC, with interrupting capacities of 200 kAIC at 240 V AC and 10 kAIC at 250 V DC. It accepts Class R fuses and is designed for branch circuit applications.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Fusible Panelboard Switch
• Series: FDPW
• Catalog Number / MPN: FDPWT3211R
• Unit 1 Rating: 30 Amp
• Unit 2 Rating: 30 Amp
• Poles / Configuration: 3 Pole
• Voltage: 240 V AC / 250 V DC
• Interrupting Rating: 200 kAIC @ 240 V AC; 10 kAIC @ 250 V DC
• Fuse Class: Class R
• Wire Range: #14–1/0 AWG
• Motor Rating at 240 V AC: 7.5 HP
• Motor Rating at 250 V DC: 5 HP
• Switch Arrangement: Twin
• Mounting Orientation: Horizontal
• Application: Branch Circuit

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: FDPWT3211R
• Series: FDPW
• Current Rating: 30 A per unit
• Pole Count: 3 Pole
• Product Type: Fusible Panelboard Switch
• Fuse Compatibility: Class R
• Arrangement: Twin, Horizontal
• Application: Branch Circuit
• UPC:786679914205

Compatibility

The Eaton FDPWT3211R is intended for compatible Eaton FDPW panelboard applications requiring twin horizontal fusible branch switches and Class R fuses.
