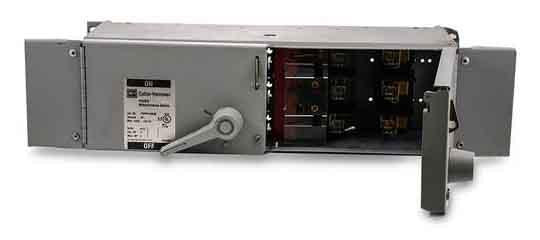

Eaton FDPWT3222R Panel Board Switch – 60A – Twin 3-Pole – 240V AC / 250V DC – 200kAIC @ 240V – Horizontal Branch – FDPW Series

The Eaton FDPWT3222R is a fusible panelboard switch from the Eaton FDPW Series, configured as a twin horizontal branch unit with 60A Unit 1 and 60A Unit 2. Each unit is specified as a three-pole switch for compatible panelboard applications.

The switch is rated for 240V AC and 250V DC and provides interrupting ratings of 200kAIC at 240V AC and 10kAIC at 250V DC. It uses Class R fuses and accommodates #14–1/0 AWG conductors. The available information specifies motor horsepower ratings of 15 HP at 240V AC and 10 HP at 250V DC.

Specifications:

• Manufacturer: Eaton
• Product Type: Panel Board Switch
• Product Family: FDPW
• Series: FDPW
• Catalog No.: FDPWT3222R
• Switch Type: Fusible Panelboard Switch
• Unit 1 Rating: 60A
• Unit 2 Rating: 60A
• Number of Poles: 3-Pole per Unit
• Voltage Rating: 240V AC / 250V DC
• AC Interrupting Rating: 200kAIC @ 240V AC
• DC Interrupting Rating: 10kAIC @ 250V DC
• Fuse Class: Class R
• Conductor Range: #14–1/0 AWG
• Configuration: Twin, Horizontal, Branch
• Motor Horsepower Rating: 15 HP @ 240V AC; 10 HP @ 250V DC
• Application: Panelboard Switching and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FDPWT3222R
• Catalog Number: FDPWT3222R
• Model: FDPWT3222R
• Product Family: Eaton FDPW Panelboard Switches
• Series: FDPW
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Fusible Panelboard Switch
• Configuration: Twin, Horizontal, Branch
• Unit Configuration: 60A Unit 1 / 60A Unit 2
• Pole Configuration: 3-Pole per Unit
• UPC:786679651612

Compatibility:

Designed for use with compatible Eaton FDPW Series panelboard systems that accept twin fusible panelboard switches. The FDPWT3222R provides two 60A switch units, each with a three-pole configuration, for compatible 240V AC or 250V DC panelboard applications.

The switch uses Class R fuses and accommodates #14–1/0 AWG conductors. Always verify the specific panelboard model, approved switch type, fuse requirements, system voltage, available fault current, conductor size, unit configuration, and installation requirements before installation.

Certifications:

• Eaton FDPW Series
• Fusible Panelboard Switch
• 60A Unit 1
• 60A Unit 2
• 3-Pole per Unit
• 240V AC Rated
• 250V DC Rated
• 200kAIC @ 240V AC
• 10kAIC @ 250V DC
• Class R Fuses
• #14–1/0 AWG
• Twin Configuration
• Horizontal Branch Configuration
