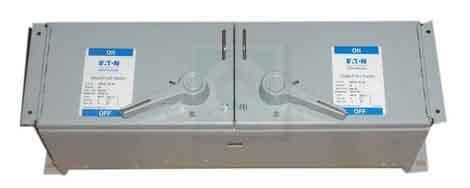

Eaton FDPWT3223R Fusible Panelboard Switch – 3 Pole – 240V AC / 250V DC – 200kAIC at 240V AC / 10kAIC at 250V DC – Twin Horizontal Branch

The Eaton FDPWT3223R is an FDPW Series fusible panelboard switch designed for branch-circuit distribution and protection. It features a twin horizontal configuration with two switch units rated at 60A and 100A. The three-pole switch accommodates Class R fuses and supports 240V AC and 250V DC applications, with specified interrupting capacities for both voltage ratings.

Specifications

• Manufacturer: Eaton
• Product Series: FDPW
• Product Type: Fusible Panelboard Switch
• Configuration: Twin, horizontal branch
• Poles: 3
• Unit 1 Current Rating: 60 A
• Unit 2 Current Rating: 100 A
• Voltage Rating: 240V AC / 250V DC
• Interrupting Capacity: 200 kAIC at 240V AC; 10 kAIC at 250V DC
• Fuse Class: Class R
• Conductor Range: #14–1/0 AWG
• Application: Branch-circuit panelboard distribution

Part Numbers & Identification

• Part Number (MPN): FDPWT3223R
• Manufacturer: Eaton
• Series: FDPW
• Device Classification: Fusible Panelboard Switch
• Branch Configuration: Twin, horizontal
• UPC:786679914304

Compatibility

The FDPWT3223R is intended for compatible Eaton FDPW panelboard installations requiring a twin horizontal branch arrangement. It provides two switch units with separate 60A and 100A ratings and accommodates Class R fuses for branch-circuit protection.
