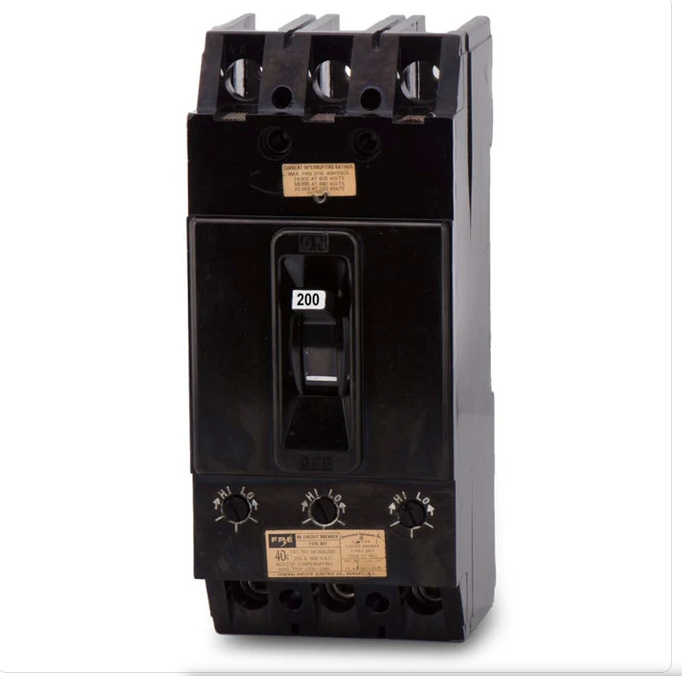

Federal Pacific NFJ631200 – 3‑Pole 200A 600V Molded Case Circuit Breaker, 18 kAIC

Product Description

The Federal Pacific NFJ631200 is a 3-pole, 200 Amp, 600V AC molded case circuit breaker designed for reliable overcurrent protection in commercial and industrial electrical systems. It provides robust protection against overloads and short-circuit faults with interrupting capacities of:

• 18 kAIC at 600V AC

• 22 kAIC at 480V AC

• 25 kAIC at 240V AC

Equipped with a thermal-magnetic trip unit, the NFJ631200 ensures consistent, dependable performance under demanding electrical conditions. Its bolt-on mounting design allows secure installation in panelboards and distribution systems.

Key Features

• Poles: 3

• Amperage: 200A

• Voltage: 600V AC

• Type: Molded Case Circuit Breaker

• Thermal-magnetic protection with long-time and instantaneous trip functions

• Interrupting ratings: 18 kAIC @ 600V, 22 kAIC @ 480V, 25 kAIC @ 240V

• Bolt-on mounting for secure installation

• Suitable for commercial and industrial electrical systems

Technical Specifications

• Manufacturer: Federal Pacific (FPE)

• Catalog Number: NFJ631200

• Phase: 3-phase

• Mounting Type: Bolt-on

• Interrupting Rating: See above per voltage

Product Data

• UPC / GTIN: 638183902486

• Provides reliable short-circuit and overload protection

• Ideal for feeders and distribution circuits

• Designed to meet performance standards for Federal Pacific NFJ series breakers
