Federal Pacific NFJ631225 – 3-Pole 225A 600V NFJ Molded Case Circuit Breaker, 18 kAIC

Product Description

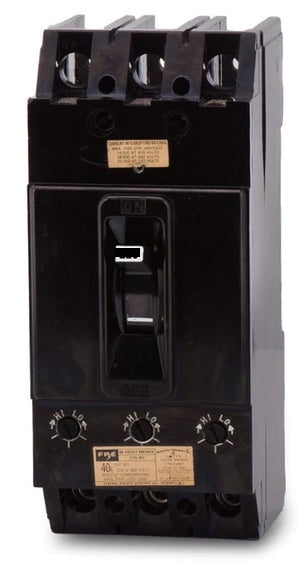

The Federal Pacific NFJ631225 is a 3-pole, 225 Amp, 600V AC NFJ molded case circuit breaker designed for dependable overcurrent protection in commercial and industrial electrical systems. It provides robust protection against overloads and short-circuit faults with interrupting capacities of:

• 18 kAIC at 600V AC

• 22 kAIC at 480V AC

• 25 kAIC at 240V AC

Equipped with a thermal-magnetic trip unit, the NFJ631225 ensures reliable performance under demanding electrical conditions. Its bolt-on mounting design allows secure installation in panelboards and distribution systems.

Key Features

• Poles: 3

• Amperage: 225A

• Voltage: 600V AC

• Type: NFJ Molded Case Circuit Breaker

• Thermal-magnetic protection with long-time and instantaneous trip functions

• Interrupting ratings: 18 kAIC @ 600V, 22 kAIC @ 480V, 25 kAIC @ 240V

• Bolt-on mounting for secure installation

• Suitable for commercial and industrial electrical systems

Technical Specifications

• Manufacturer: Federal Pacific (FPE)

• Catalog Number: NFJ631225

• Phase: 3-phase

• Mounting Type: Bolt-on

• Interrupting Rating: See above per voltage

Product Data

• UPC / GTIN: 638183902486

• Provides reliable short-circuit and overload protection

• Ideal for feeders and distribution circuits

• Built to meet performance standards for Federal Pacific NFJ series breakers
