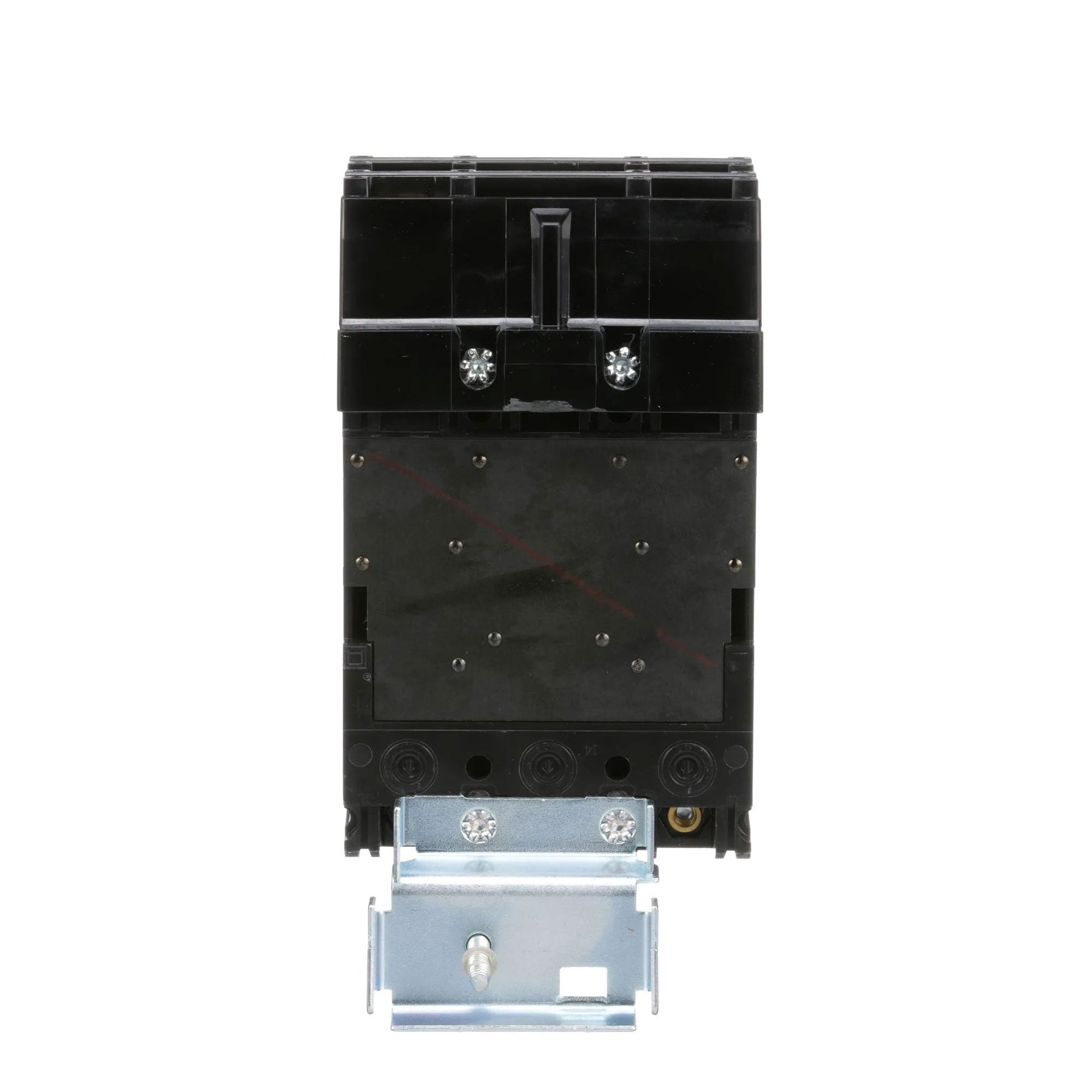

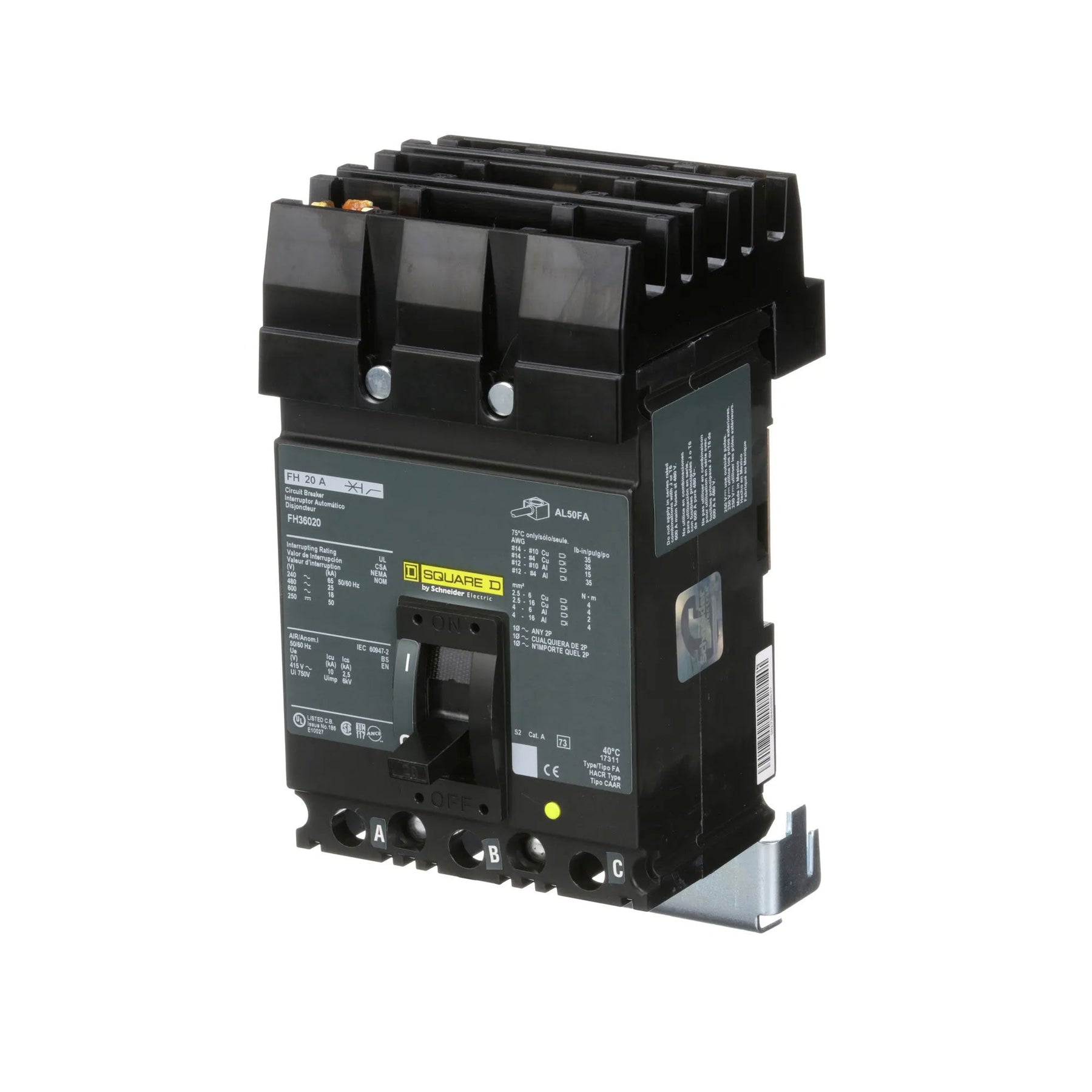

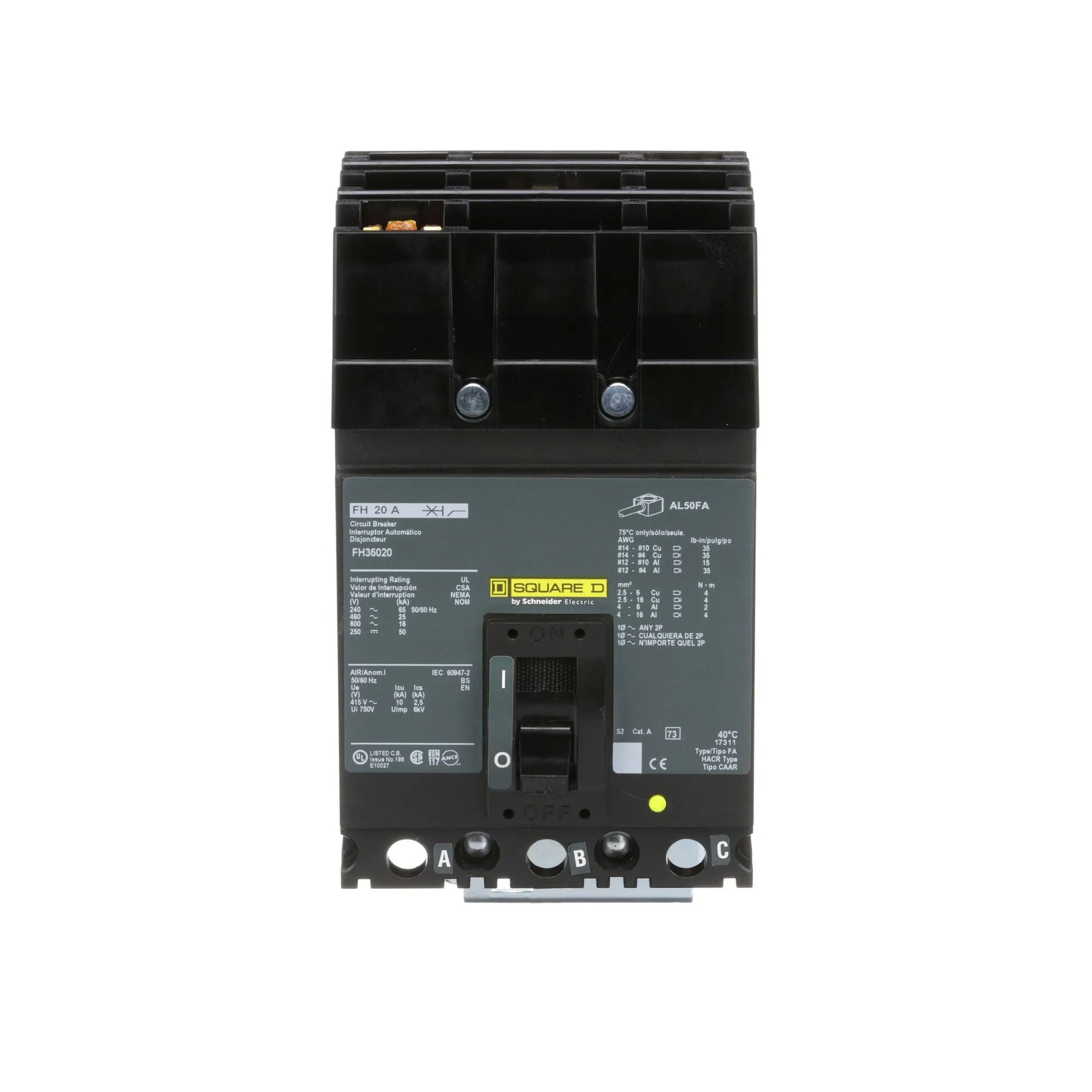

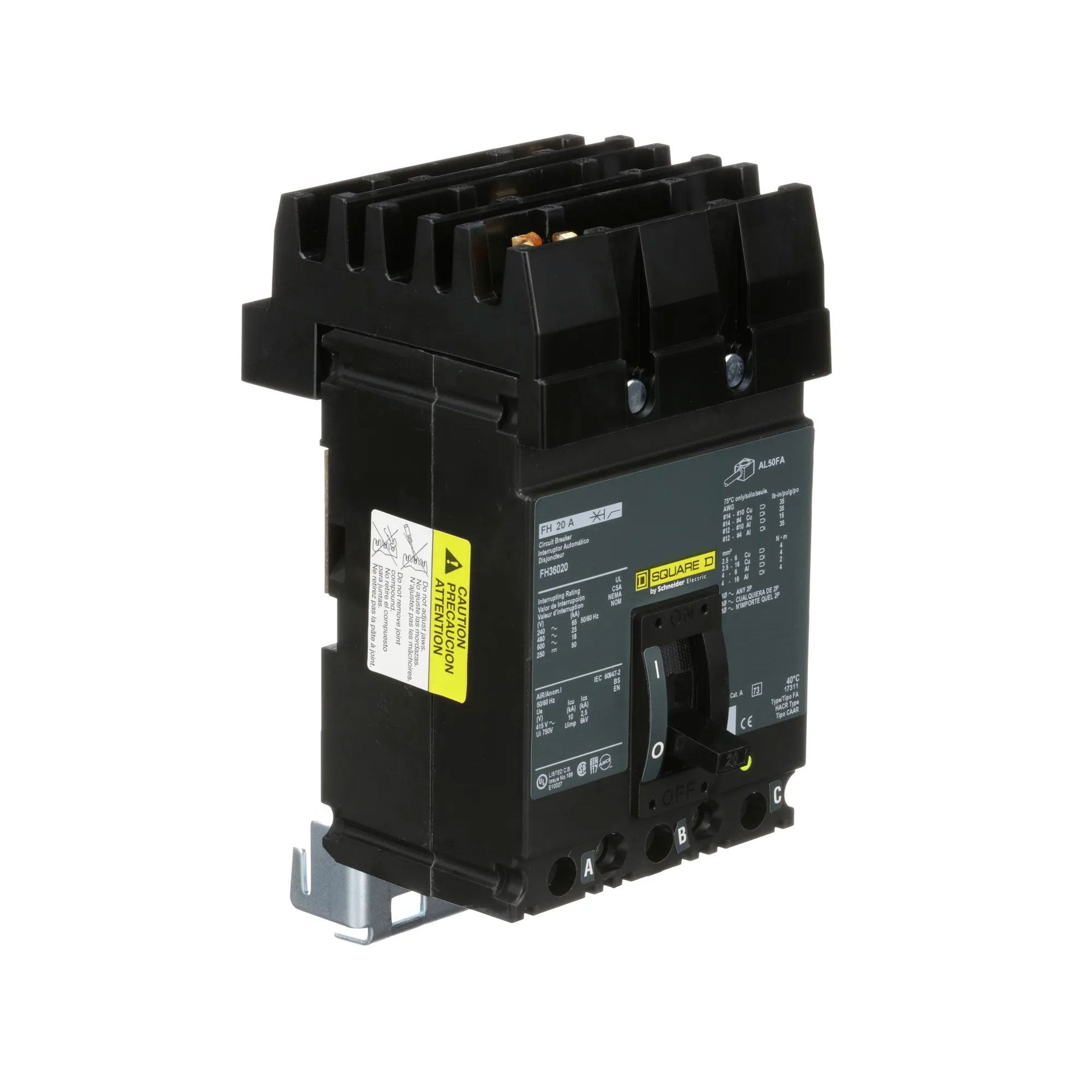

Square D FH36020 Molded Case Circuit Breaker – 20A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – I-Line Plug-In – PowerPact FH Series

The Square D FH36020 is a 20A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact I-Line Type FH Series. It is designed for compatible electrical distribution applications and provides thermal-magnetic protection.

The FH36020 is rated for 600V and provides a 25kA interrupting rating at 480V with a high interrupting rating. It features an I-Line style plug-in connection and is calibrated for operation at 40°C.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: FH
• Type: FH
• Catalog No.: FH36020
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Mounting / Connection: I-Line Style Plug-In
• Temperature Calibration: 40°C
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Square D / Schneider Electric

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FH36020
• Catalog Number: FH36020
• Model: FH36020
• Product Family: Square D PowerPact Molded Case Circuit Breakers
• Series: FH
• Type: FH
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 20A
• Current Rating: 20A
• Mounting Configuration: I-Line Style Plug-In
• UPC: 785901241331

Compatibility:

Designed for use with compatible Square D PowerPact I-Line FH Series electrical distribution equipment that accepts FH Series molded case circuit breakers with an I-Line style plug-in connection.

The FH36020 provides 20A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications and has a 25kA interrupting rating at 480V.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, I-Line compatibility, conductor and terminal requirements, and installation specifications before installation.

Certifications:

• PowerPact FH Series
• I-Line
• 20A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 25kA @ 480V Interrupting Rating
• High Interrupting Capacity
• Thermal-Magnetic Protection
• 40°C Calibrated
• I-Line Style Plug-In
