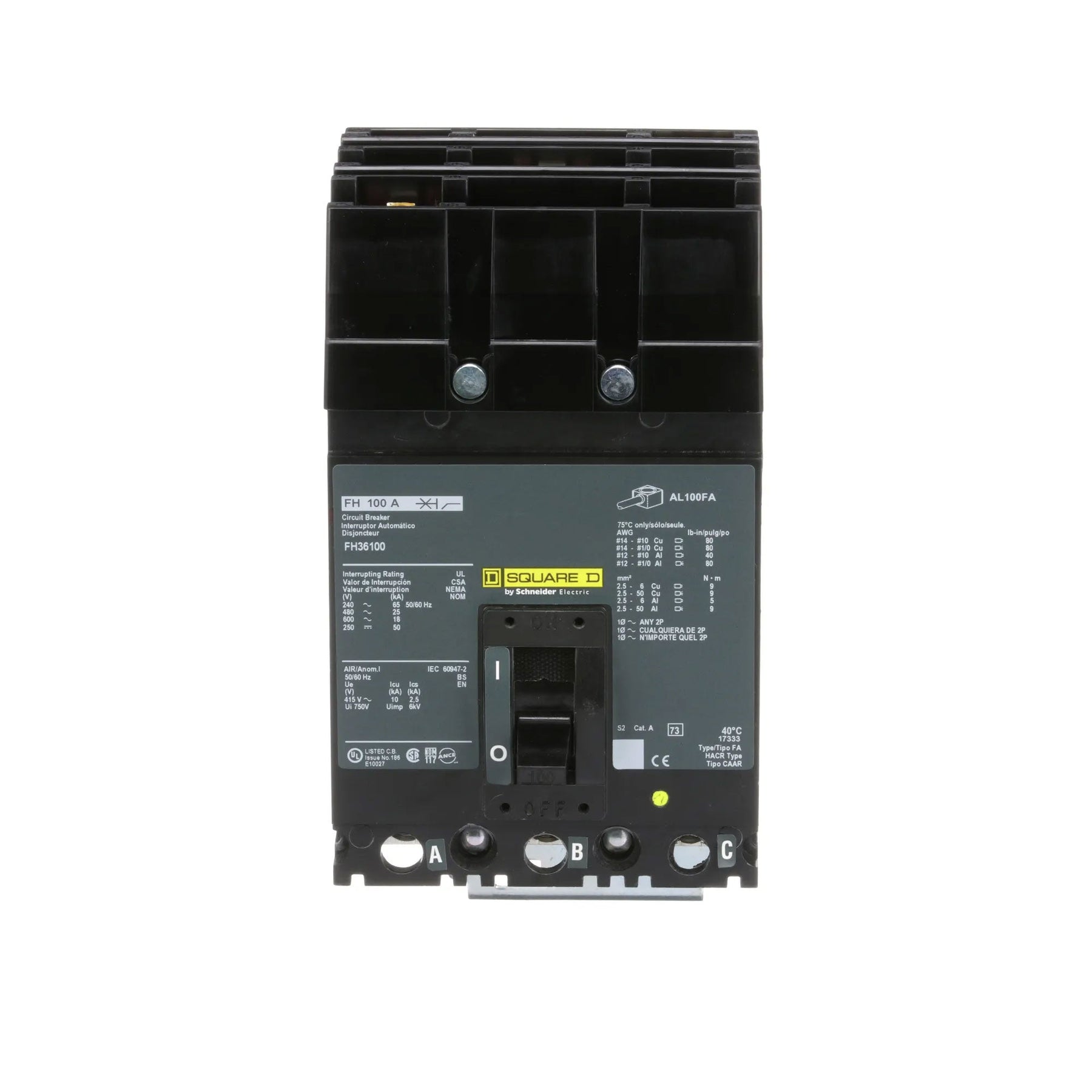

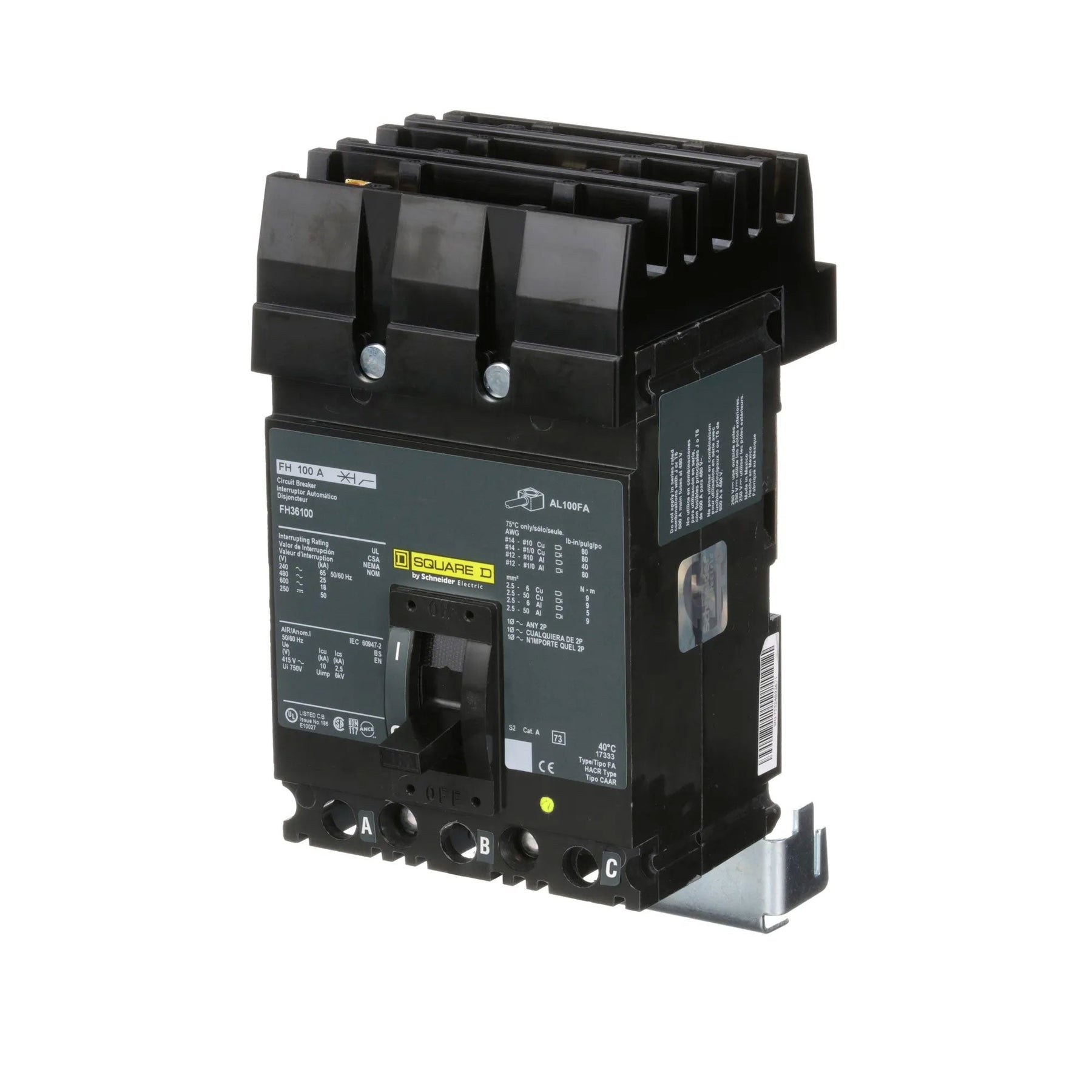

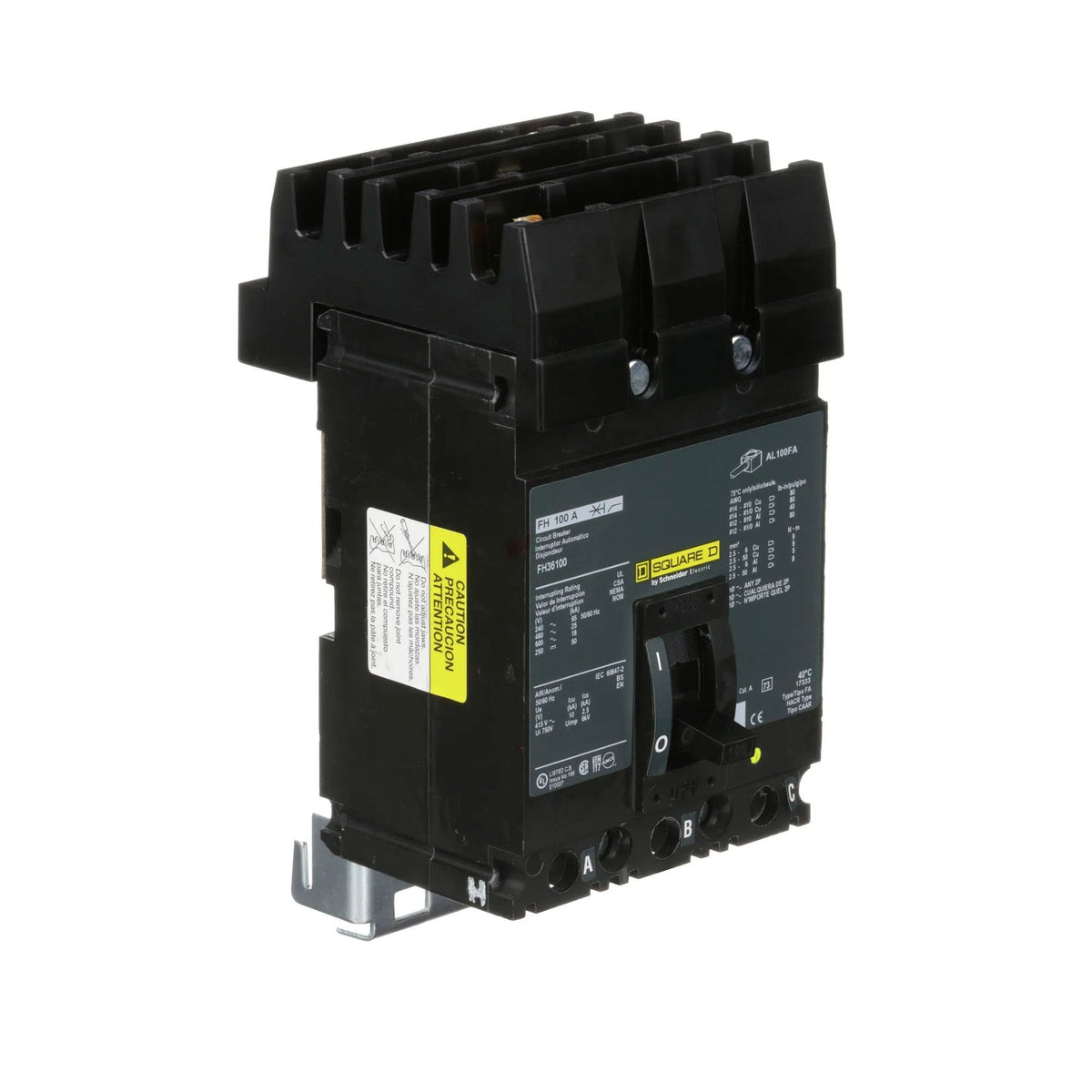

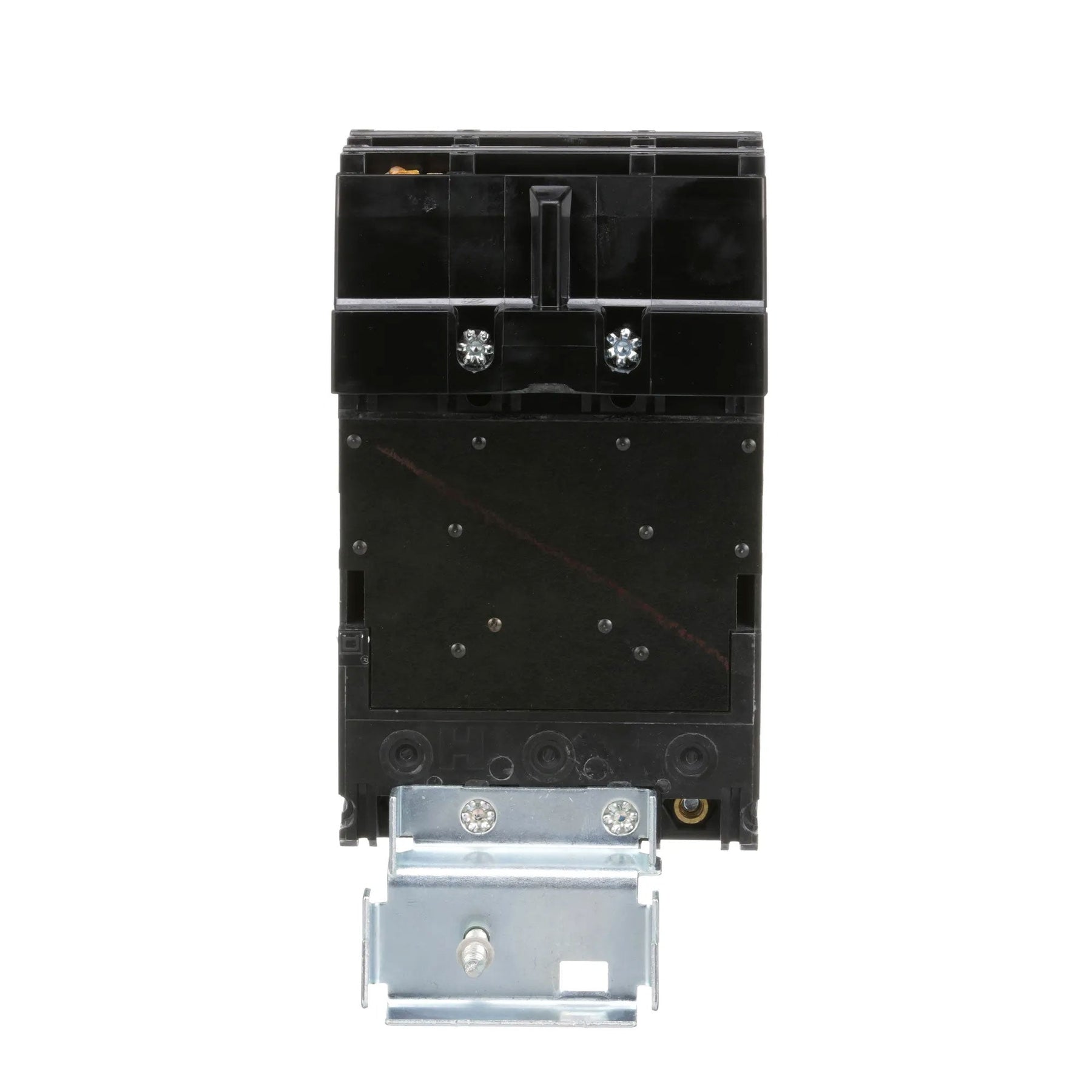

Square D FH36100 Molded Case Circuit Breaker – 100A – 3-Pole / 3-Phase – 600V – 25kA @ 480V – I-Line Style Plug-In – PowerPact FH Series

The Square D FH36100 is a 100A, 3-pole, 3-phase molded case circuit breaker from the Square D PowerPact Type FH Series. It features thermal-magnetic protection and is designed for compatible electrical distribution applications.

The FH36100 is rated for 600V and provides a 25kA interrupting rating at 480V with a high interrupting rating. It uses an I-Line style plug-in connection and is rated for operation at 40°C.

Specifications:

• Manufacturer: Square D / Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Product Family: PowerPact
• Series: FH
• Type: FH
• Catalog No.: FH36100
• Current Rating: 100A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 25kA @ 480V
• Interrupting Capacity: High
• Protection Type: Thermal-Magnetic
• Mounting / Connection: I-Line Style Plug-In
• Temperature Rating: 40°C
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FH36100
• Catalog Number: FH36100
• Model: FH36100
• Product Family: Square D PowerPact Circuit Breakers
• Series: FH
• Type: FH
• Brand: Square D
• Manufacturer: Schneider Electric
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 100A
• UPC:785901241409

Compatibility:

Designed for use with compatible Square D PowerPact FH Series electrical distribution equipment that accepts I-Line style plug-in molded case circuit breakers. The FH36100 provides 100A thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.
