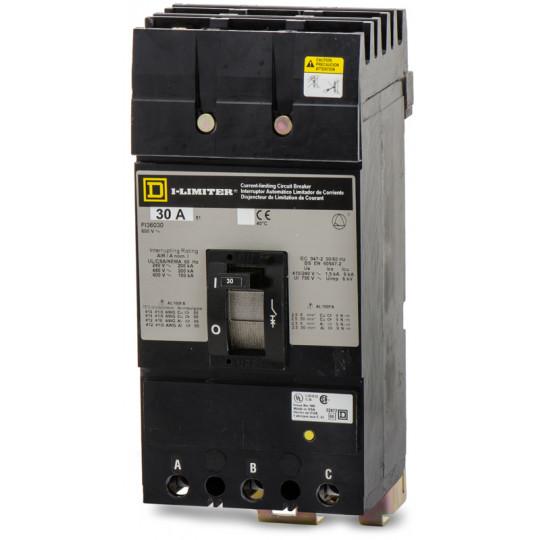

Square D FI36030 30A 3-Pole 600V I-Line Circuit Breaker Thermal Magnetic 200kA@240/480V 100kA@600V

Product Description

The Square D FI36030 is a 30 Amp, 3-Pole, thermal magnetic molded case circuit breaker designed for use in Square D I-Line panelboards and switchboards. This F-Frame, current-limiting breaker provides reliable overcurrent protection and high interrupting capacity for commercial and industrial power distribution systems.

Key Features

• Catalog Number: FI36030
• Manufacturer: Square D / Schneider Electric
• Amperage: 30 Amp
• Poles: 3-Pole
• Voltage Rating: 600VAC
• Current Limiting Design
• Thermal Magnetic Trip Unit
• I-Line Plug-In Mounting
• Common Trip Operation
• HACR Rated
• Visual Trip Indicator
• Trip-Free Mechanism
• UL 489 Listed
• CSA Approved
• Load Side Lugs Included

Technical Specifications

• Manufacturer: Square D / Schneider Electric
• Catalog Number: FI36030
• Series: FI
• Frame Type: F-Frame
• Amperage: 30A
• Poles: 3
• Voltage Ratings:
  • 240VAC
  • 480VAC
  • 480Y/277VAC
  • 600VAC
  • 600Y/347VAC
  • 250VDC
• Mounting Style: I-Line Plug-In
• Trip Technology: Thermal Magnetic
• Trip Function: LI (Long-Time & Instantaneous)
• Phase: 3 Phase
• Terminal Type: Lugs
• Wire Range: #14 AWG – 1/0 AWG Copper/Aluminum
• Interrupting Rating:
  • 200kA @ 240VAC
  • 200kA @ 480VAC
  • 200kA @ 480Y/277VAC
  • 100kA @ 600VAC
  • 100kA @ 600Y/347VAC
  • 10kA @ 250VDC

Product Data

• Brand: Square D
• Manufacturer: Schneider Electric
• Model: FI36030
• Type: Molded Case Circuit Breaker
• Family: I-Line
• Frame Size: F-Frame
• Mounting: I-Line Plug-In
• Connection: I-Line Style Plug-In
• Protection: Thermal Magnetic
• Condition: New / Reconditioned
• Compatible Equipment:
  • Square D I-Line Panelboards
  • Square D I-Line Switchboards
• UPC: 785901210689
• GTIN: 00785901210689
• Weight: Approximately 12 lbs
