FXD62B225 - Siemens Bolt-On 600V 225A 2 pole circuit breaker 35kA@480V
Couldn't load pickup availability
Ask an expert
Description
FXD62B225

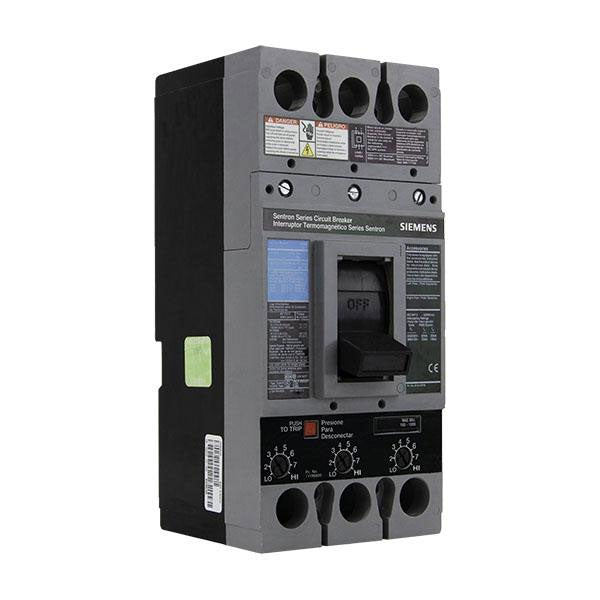

The Siemens FXD62B225 is a Molded Case Circuit Breaker. This type FXD circuit breaker is a member of The Sentron Series family. The FXD62B225 is a 2 pole, 600 Volt, 225 amp rated circuit breaker, with an AIC rating of 35kA@480V. The FXD62B225 is manufactured by Siemens. The FXD62B225 uses a Bolt-On connection. Includes Thermal Magnetic protection. Every part My Circuit Breakers sells is also backed by our industry-leading gold standard 2-year warranty.
Specifications
- Part Number: FXD62B225
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Sentron Series
- Type : FXD
- Voltage : 600
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 35kA@480V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Frame Size : FD Frame
- Protection : Thermal Magnetic
Product Data
- UPC : 783643211179
- GTIN : 00783643211179
- Country of Origin : Mexico
- Weight : 7.2
- Type Circuit Breakers
- Vendor Siemens / ITE
- Brand Siemens
- Electrical Rating Bolt-on - 225 Amp - 2 Pole - 600 Volt
