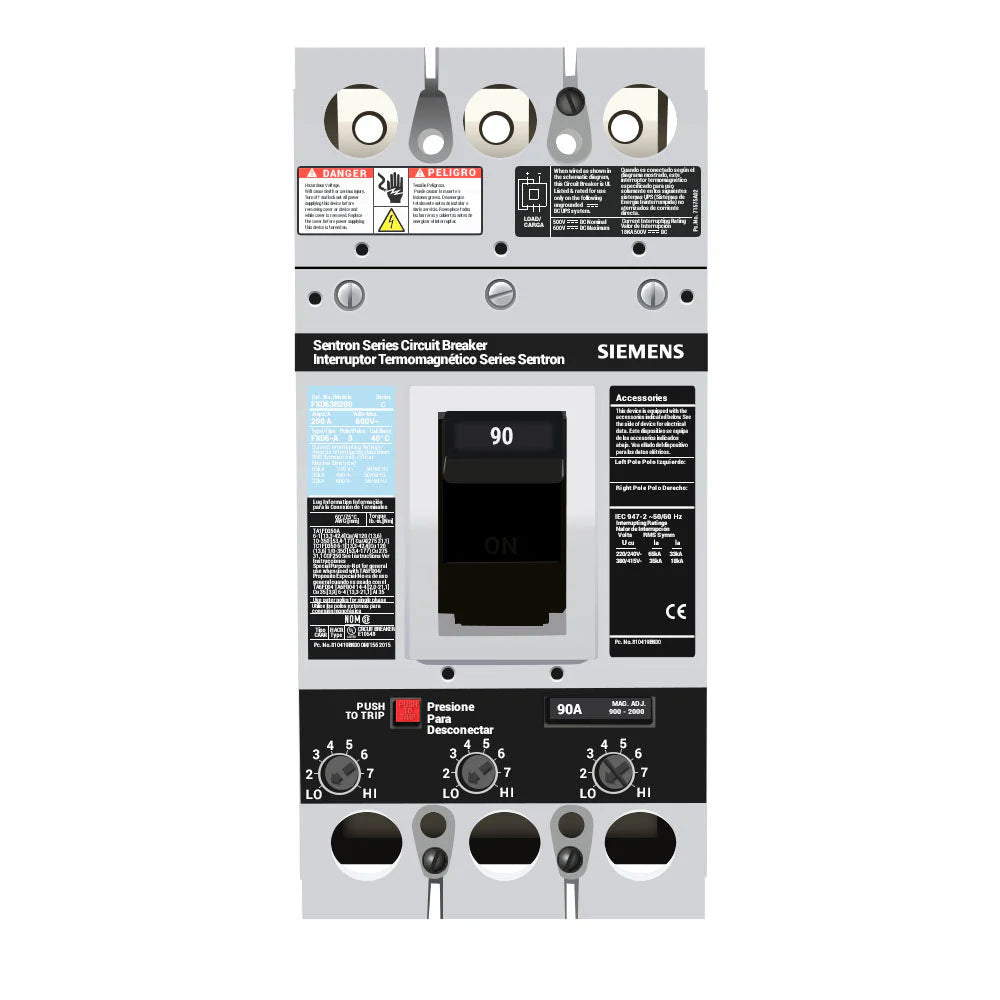

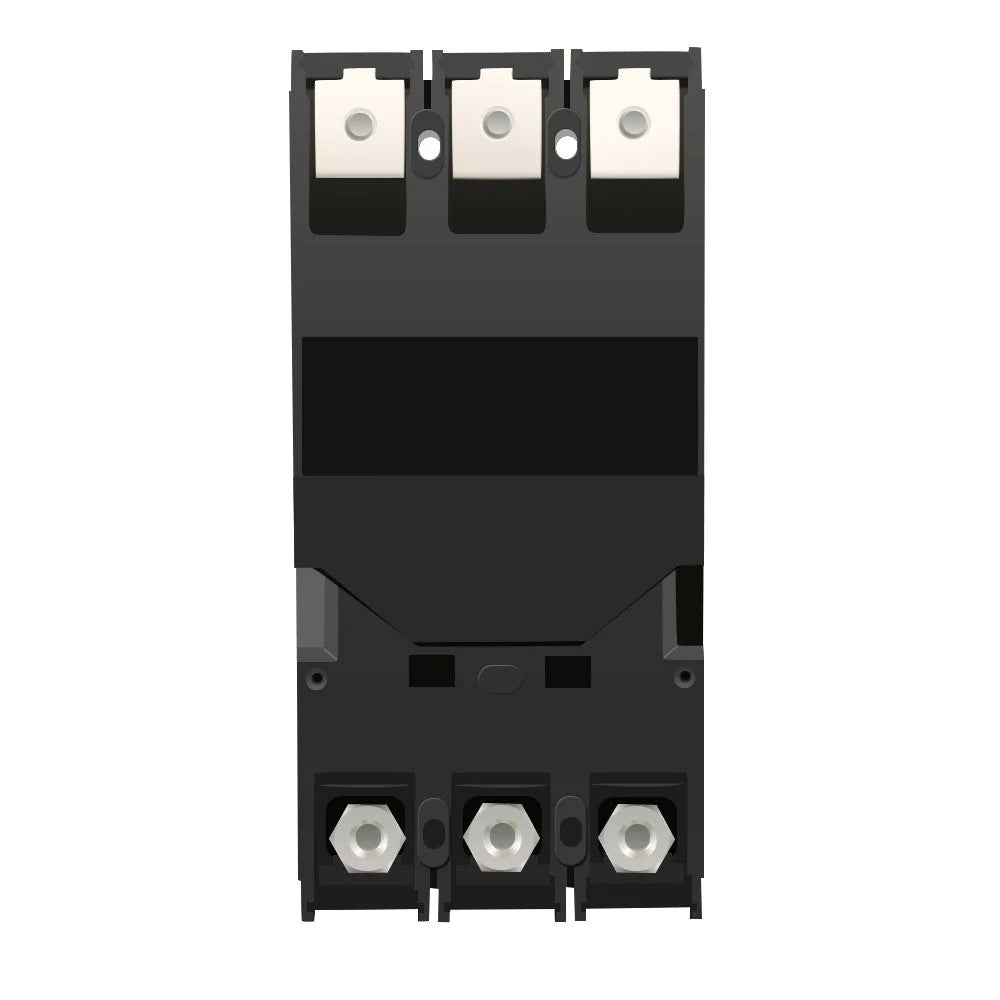

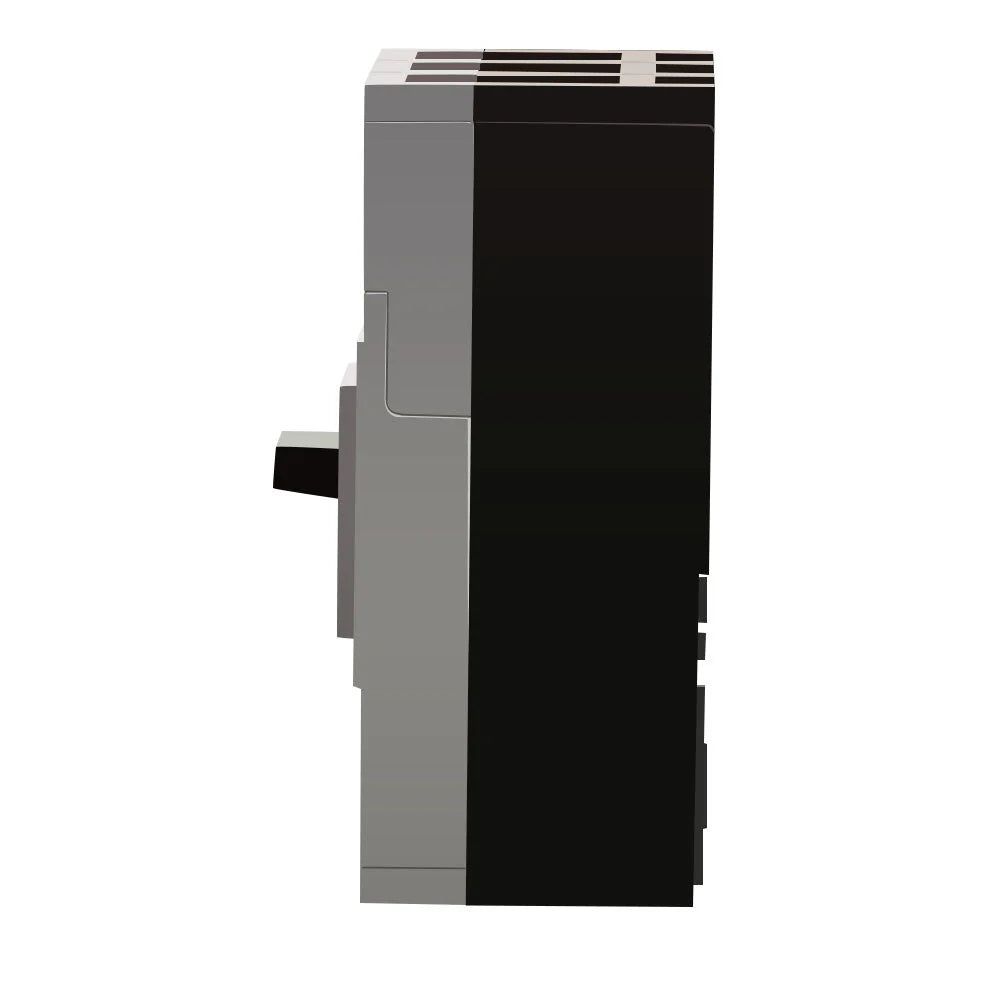

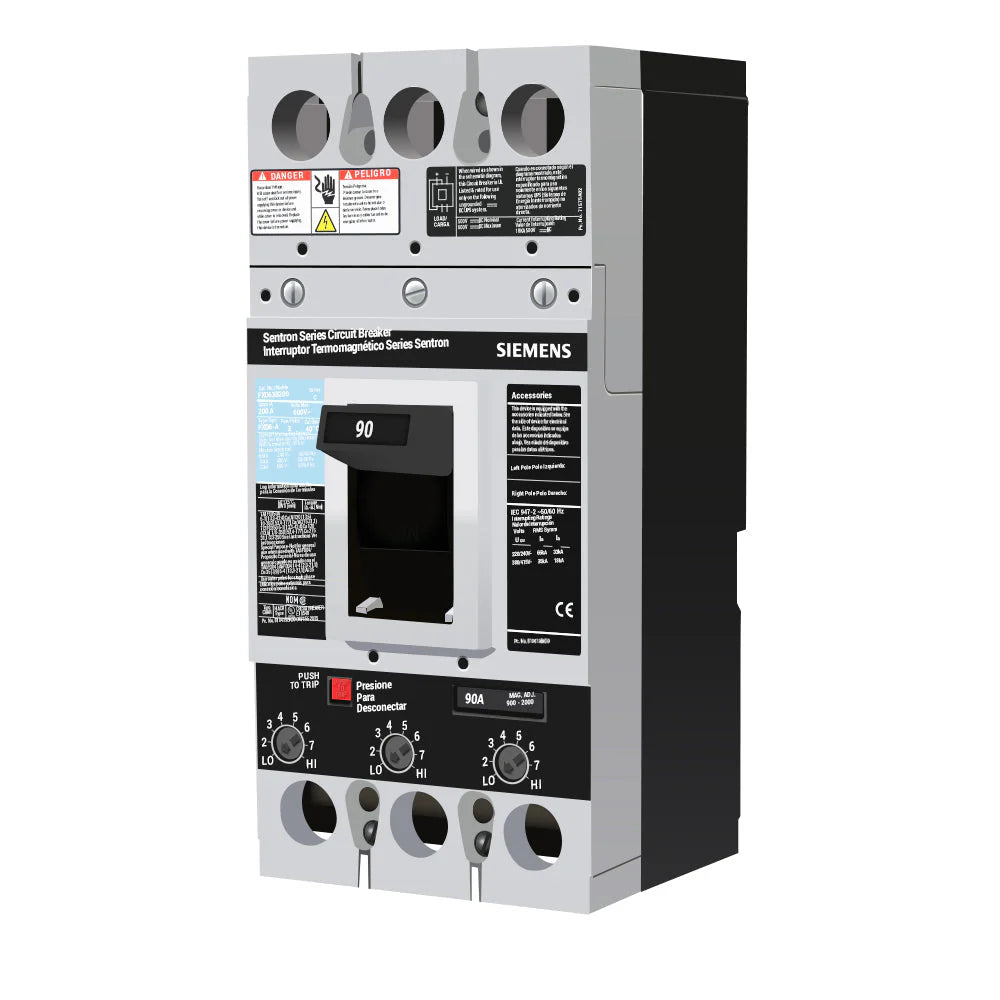

Siemens FXD63B090L 90 Amp Molded Case Circuit Breaker – 3 Pole – 600 V – 35 kA@480 V – Bolt-On – SENTRON Series

The Siemens FXD63B090L is a 90 Amp, 3-pole molded case circuit breaker from the Siemens SENTRON Series, Type FXD. Rated for 600 V, it provides a 35 kA interrupting rating at 480 V and features standard interrupting capacity. The breaker uses a non-interchangeable thermal-magnetic trip unit with LI (Long-Time and Instantaneous) protection functions. It is designed for bolt-on mounting, is UL listed for reverse-fed applications.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Molded Case Circuit Breaker
• Series: SENTRON
• Type: FXD
• Catalog Number / MPN: FXD63B090L
• Primary Rating: 90 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Interrupting Capacity: Standard
• Calibration Temperature: 40°C
• Trip Type: Thermal-Magnetic
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection / Mounting: Bolt-On
• Application: Suitable for Reverse-Fed Applications

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: FXD63B090L
• Series: SENTRON
• Type: FXD
• Current Rating: 90 A
• Pole Count: 3 Pole
• Product Type: Thermal-Magnetic Molded Case Circuit Breaker
• Trip Unit: Non-Interchangeable
• Trip Functions: LI – Long-Time and Instantaneous
• Connection: Bolt-On
• UPC:783643005792

Compatibility

The Siemens FXD63B090L is designed for compatible Siemens SENTRON Series Type FXD electrical distribution applications and is listed for reverse-fed use.

Certifications

• UL Listed
