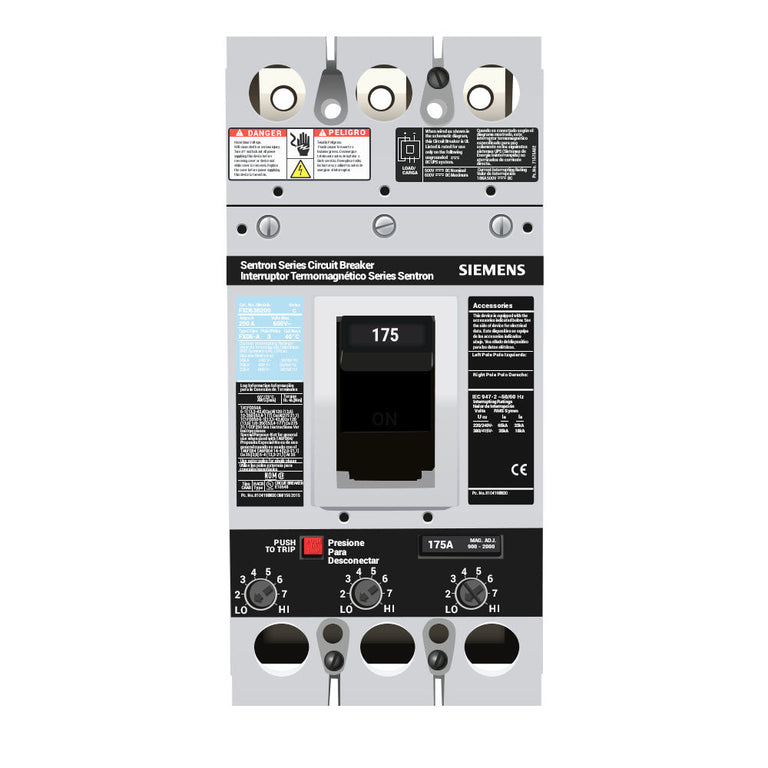

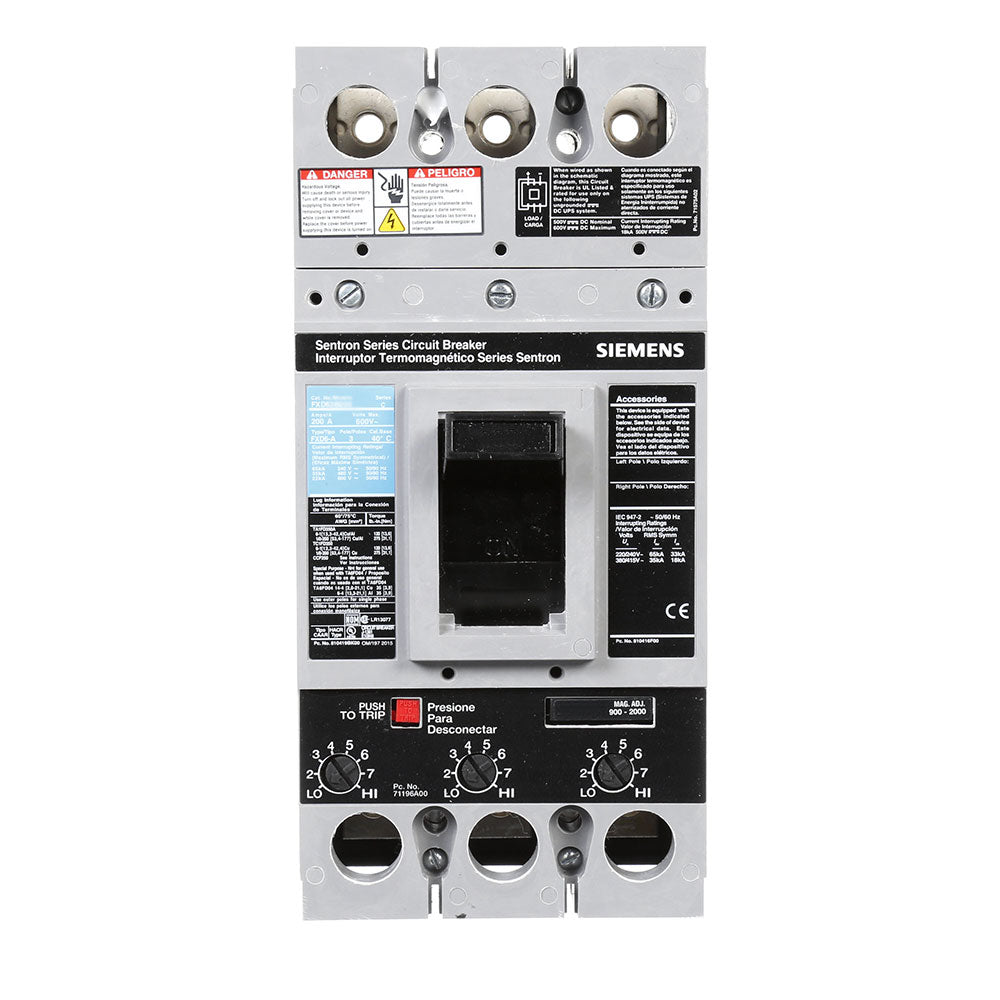

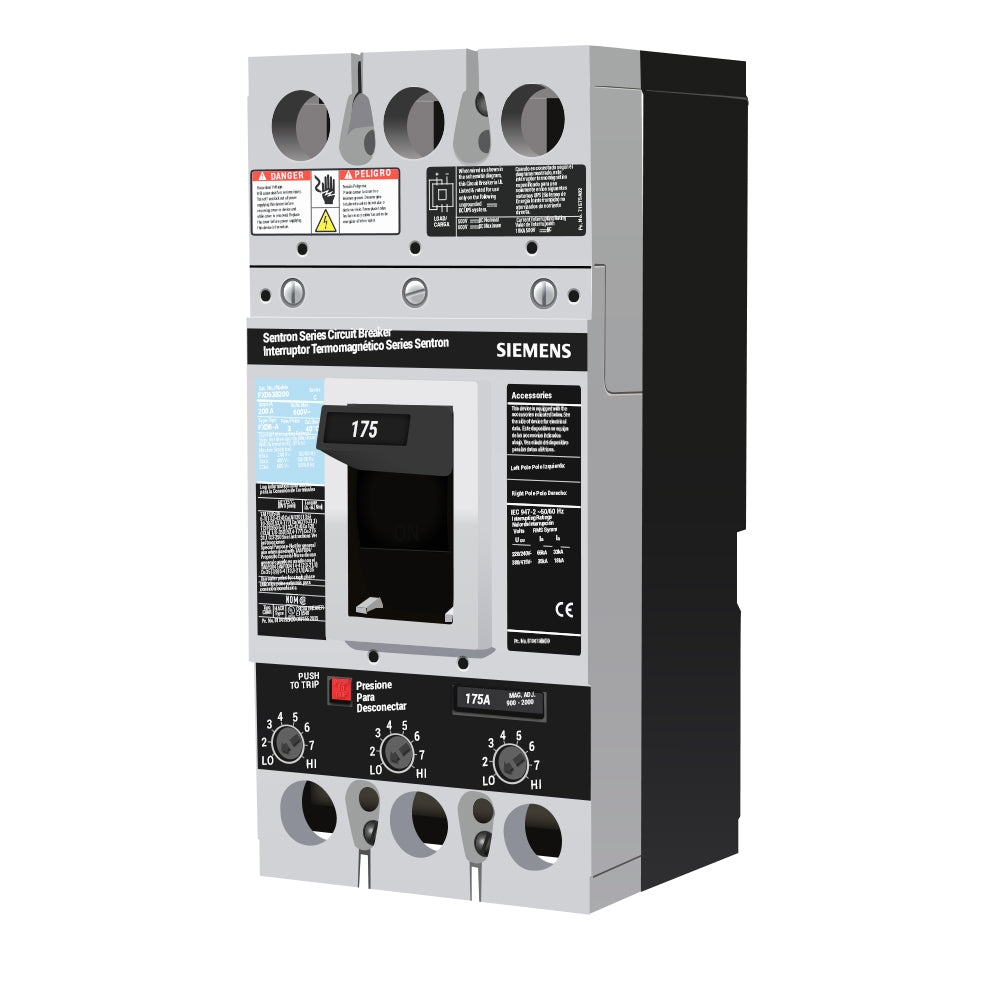

Siemens FXD63B175L Molded Case Circuit Breaker – 175A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – Sentron FXD Series

The Siemens FXD63B175L is a 175A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Type FXD Series. It features thermal-magnetic protection with a non-interchangeable trip and Long-Time and Instantaneous (LI) trip functions.

The breaker is rated for 600V and provides interrupting ratings of 22kA at 600V and 35kA at 480V with standard interrupting capacity. It uses a bolt-on mounting configuration, includes load-side lug terminals, and is UL Listed for reverse-fed applications. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: Sentron
• Type: FXD
• Catalog No.: FXD63B175L
• Current Rating: 175A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V; 22kA @ 600V
• Interrupting Capacity: Standard
• AIC Rating: 35kA @ 480V; 22kA @ 600V
• Protection Type: Thermal-Magnetic
• Trip Type: Non-Interchangeable
• Trip Functions: Long-Time and Instantaneous (LI)
• Mounting Type: Bolt-On
• Terminal Type: Load-Side Lug Terminals
• Temperature Rating: 40°C
• Reverse Feed: UL Listed for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FXD63B175L
• Catalog Number: FXD63B175L
• Model: FXD63B175L
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron Circuit Breakers
• Series: Sentron
• Type: FXD
• Breaker Configuration: 3-Pole, 175A
• Trip Functions: Long-Time and Instantaneous (LI)
• UPC:783643005945

Compatibility:

Designed for use with compatible Siemens Sentron Type FXD electrical distribution equipment that accepts bolt-on molded case circuit breakers. The FXD63B175L provides 175A, 3-pole thermal-magnetic protection for compatible 600V electrical distribution applications.

The breaker features a non-interchangeable LI trip, load-side lug terminals, and a standard interrupting capacity. It is UL Listed for reverse-fed applications. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, terminal arrangement, reverse-feed suitability, and installation specifications before installation.

Certifications:

• UL Listed
• Sentron FXD Series
• 175A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• 22kA @ 600V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Non-Interchangeable Trip
• Long-Time and Instantaneous (LI) Trip Functions
• Bolt-On Mounting
• Load-Side Lug Terminals
• 40°C Rated
• UL Listed for Reverse-Fed Applications
