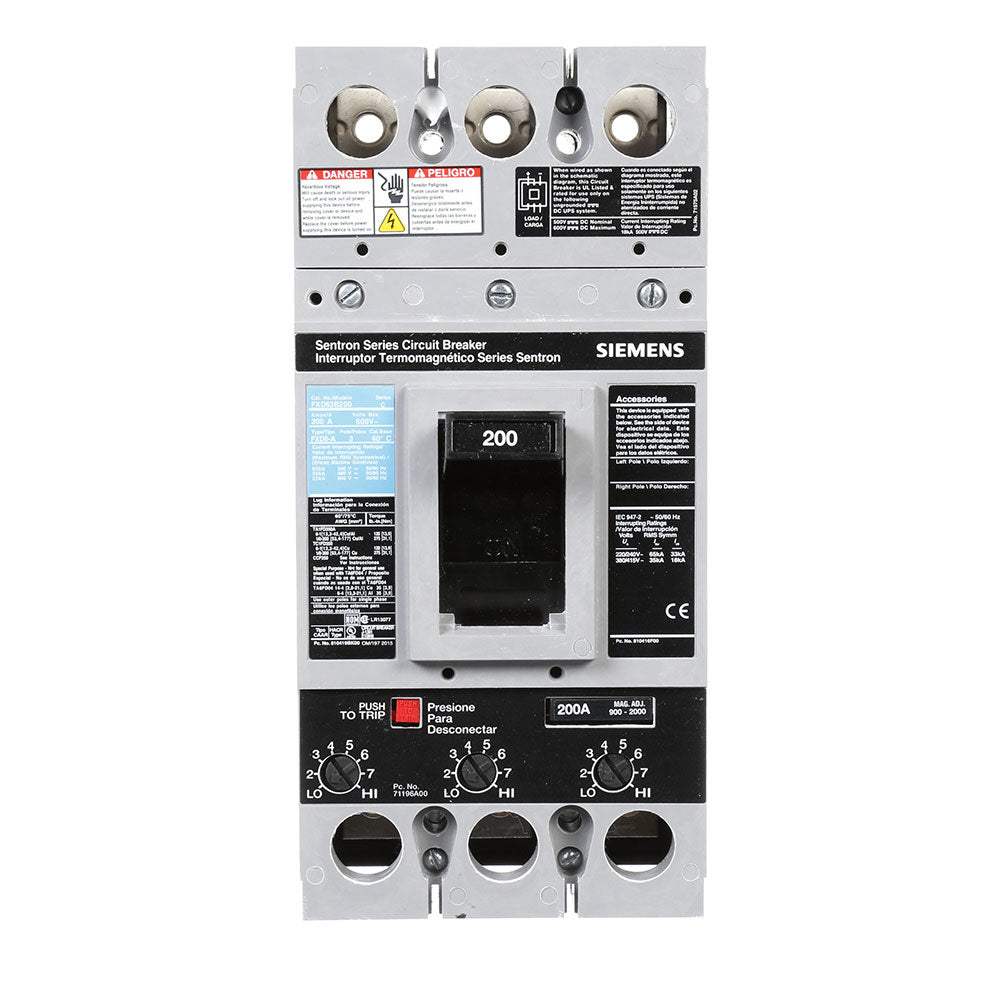

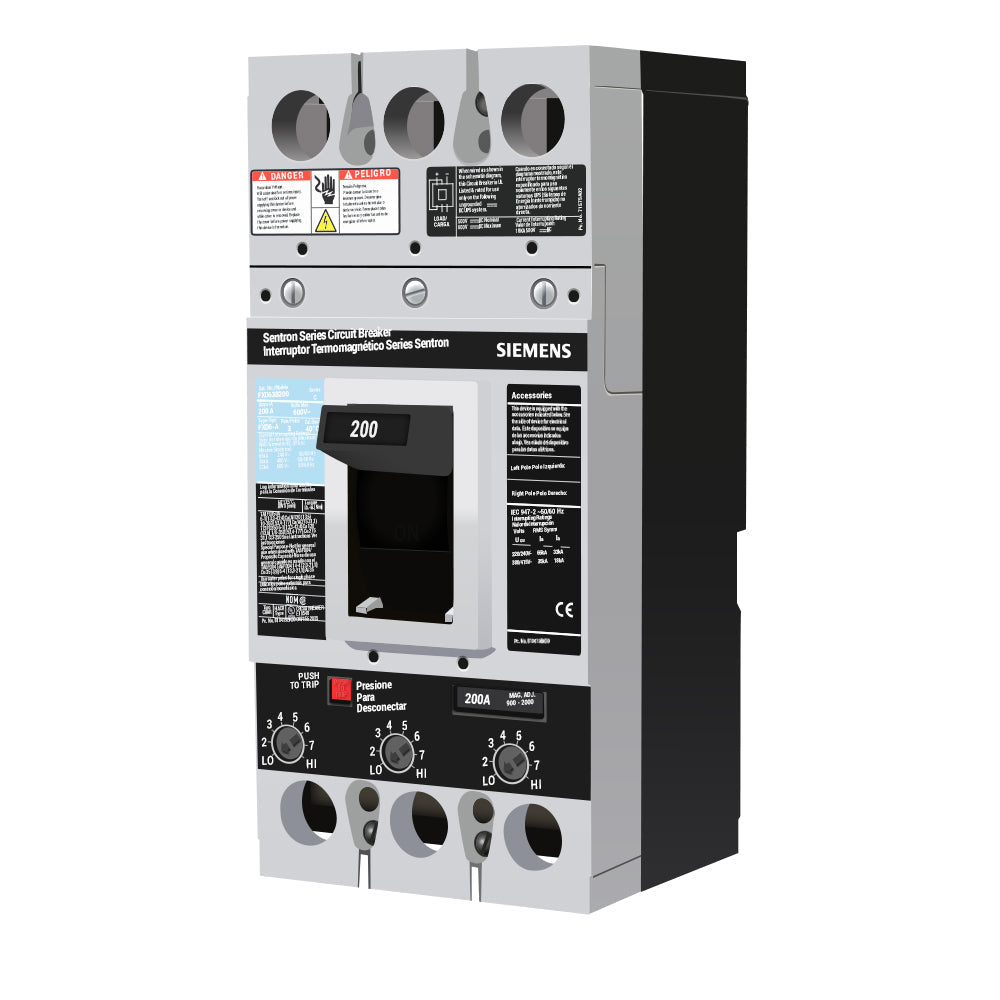

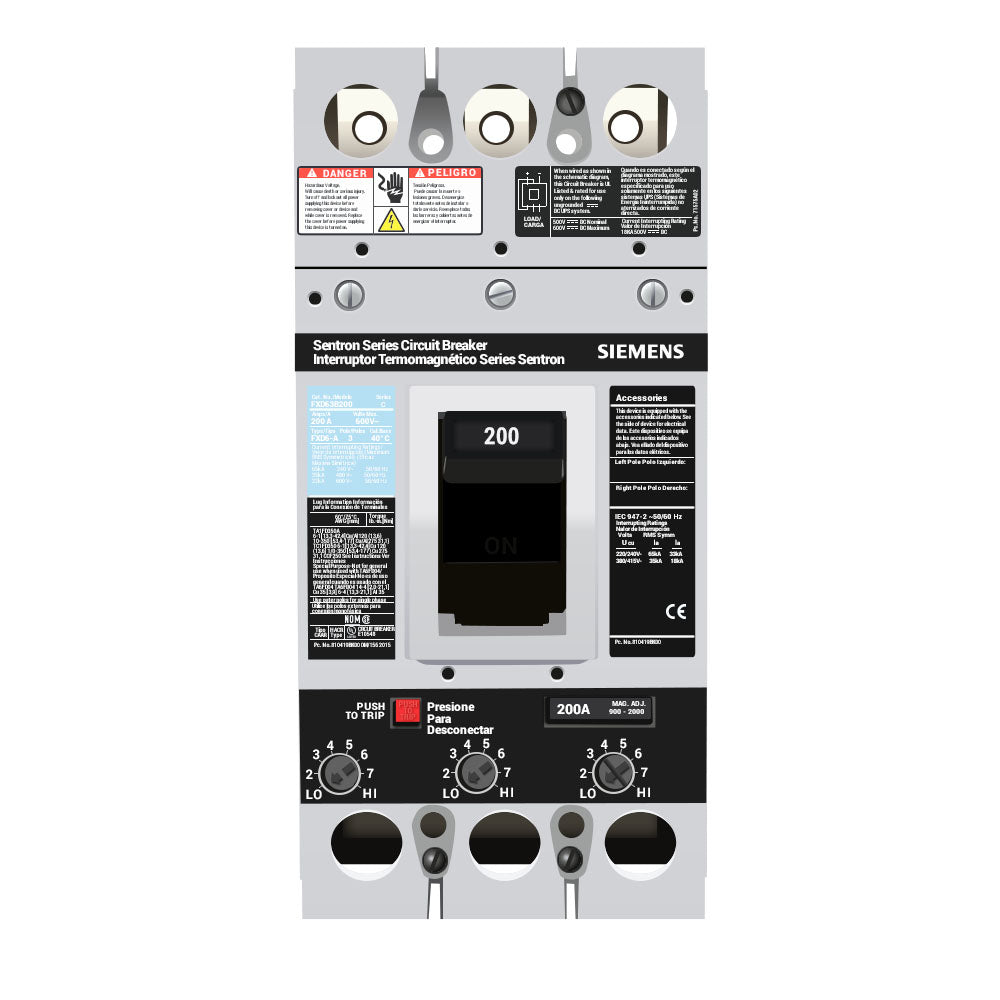

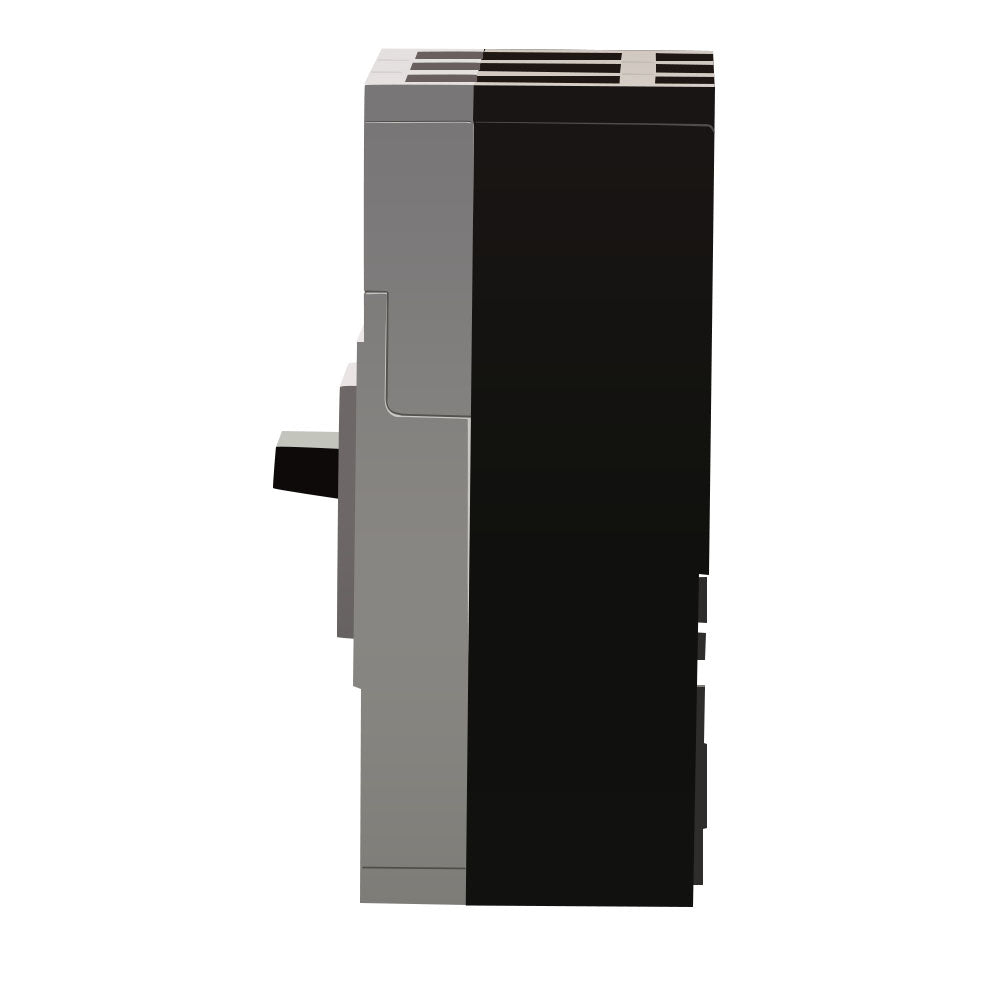

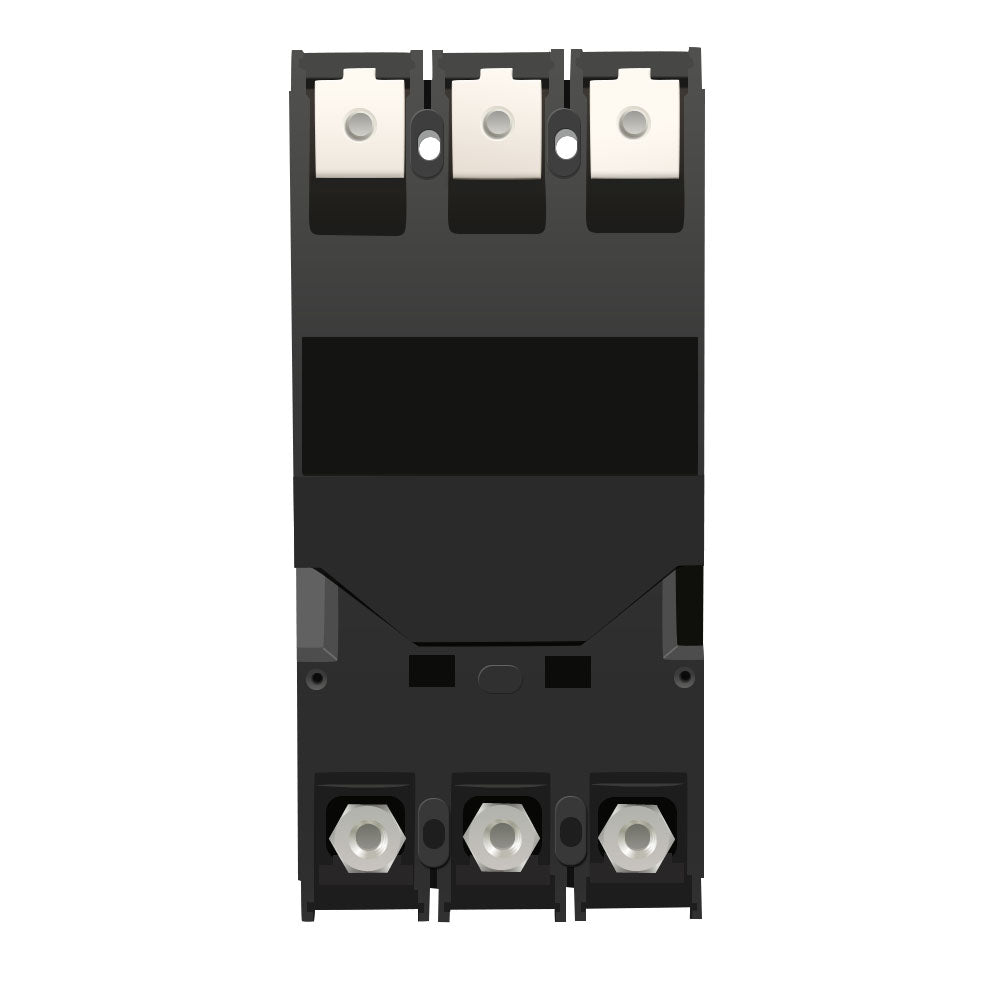

Siemens FXD63B200 Molded Case Circuit Breaker – 200A – 3-Pole – 600VAC – 65kAIC @ 240V – Bolt-On – Sentron FD Series

The Siemens FXD63B200 is a 200A, 3-pole molded case circuit breaker from the Sentron FD Frame Series. It features thermal-magnetic trip protection and is designed for commercial and industrial power distribution applications, including switchboards, panelboards, MCCs, and distribution equipment.

The breaker is rated for 600VAC and provides interrupting ratings of 65kAIC at 240VAC, 35kAIC at 480VAC, and 22kAIC at 600VAC. It features bolt-on mounting, a compact FD frame design, and is supplied with mechanical lugs sold separately.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Catalog No.: FXD63B200
• Product Family: Sentron
• Series: FD Frame
• Frame Size: FD
• Current Rating: 200A
• Number of Poles: 3-Pole
• Voltage Rating: 600VAC
• Frequency: 50/60 Hz
• Trip Type: Thermal-Magnetic
• Mounting Type: Bolt-On
• Interrupting Rating: 65kAIC @ 240VAC
• Interrupting Rating: 35kAIC @ 480VAC
• Interrupting Rating: 22kAIC @ 600VAC
• Terminal Type: Mechanical Lugs, Sold Separately
• Wire Range: Varies by Lug Kit Used
• Protection: Overload and Short-Circuit Protection
• Application: Commercial and Industrial Power Distribution
• Compatible Equipment: Switchboards, Panelboards, MCCs, and Distribution Equipment
• Ratings: HACR Rated, Current Limiting Design

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FXD63B200
• Catalog Number: FXD63B200
• Product Family: Siemens Sentron
• Series: FD Frame
• Frame Type: FD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Model: FXD63B200
• Breaker Configuration: 3-Pole, 200A
• upc:783643211278

Compatibility:

Designed for use with compatible Siemens Sentron FD Frame electrical distribution equipment in commercial and industrial applications. It is suitable for use in compatible switchboards, panelboards, MCCs, and distribution equipment requiring a 200A, 3-pole, 600VAC bolt-on molded case circuit breaker.

Mechanical lugs are sold separately, and the applicable wire range varies according to the lug kit used. Always verify the specific equipment model, approved breaker type, system voltage, interrupting rating, mounting arrangement, lug kit, and conductor requirements before installation.

Certifications:

• Sentron FD Frame
• 200A Rated
• 3-Pole
• 600VAC Rated
• Thermal-Magnetic Trip
• Bolt-On Mounting
• 65kAIC @ 240VAC
• 35kAIC @ 480VAC
• 22kAIC @ 600VAC
• HACR Rated
• Current Limiting Design
