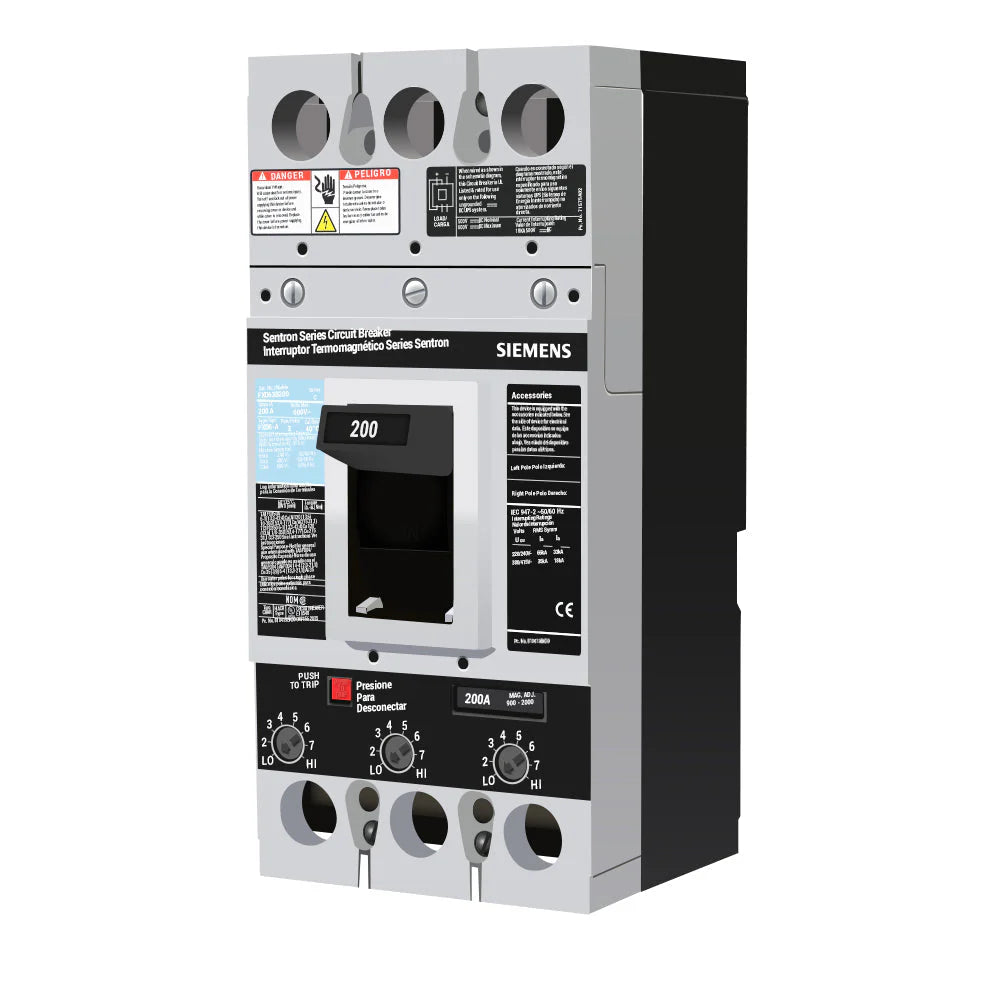

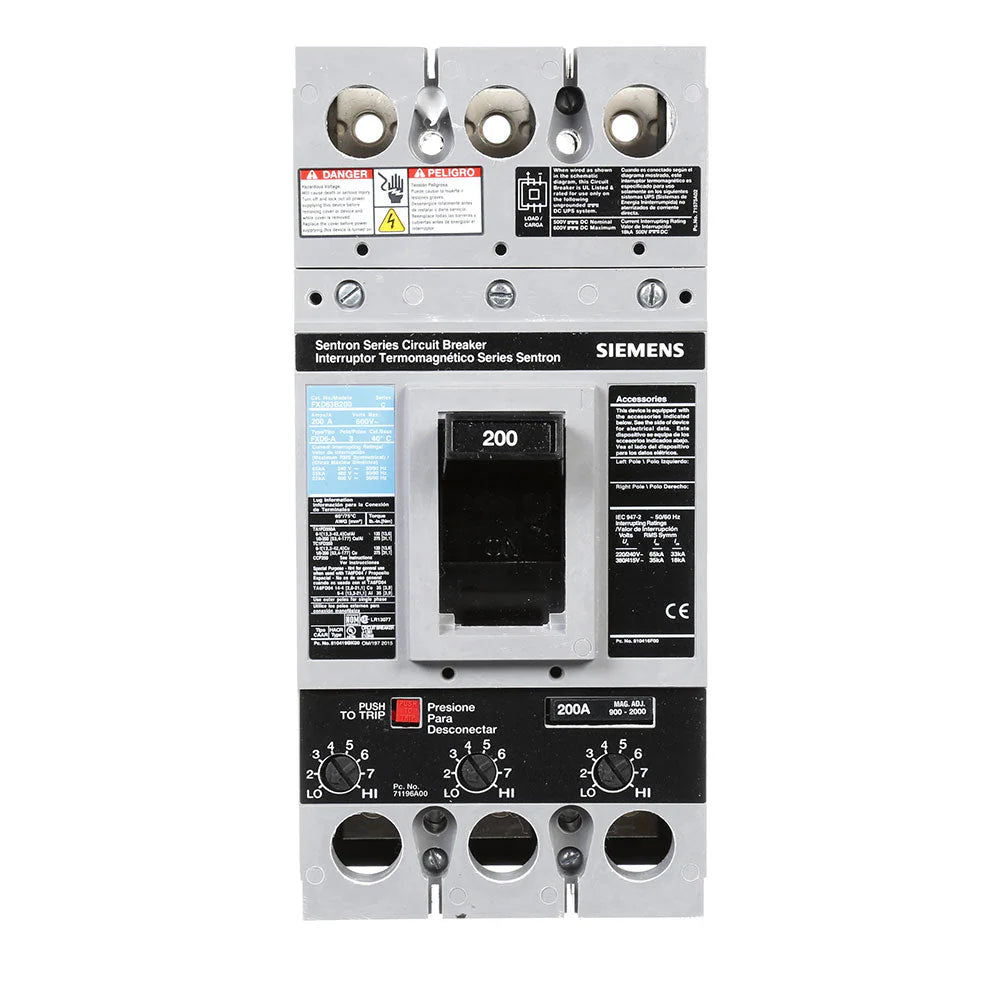

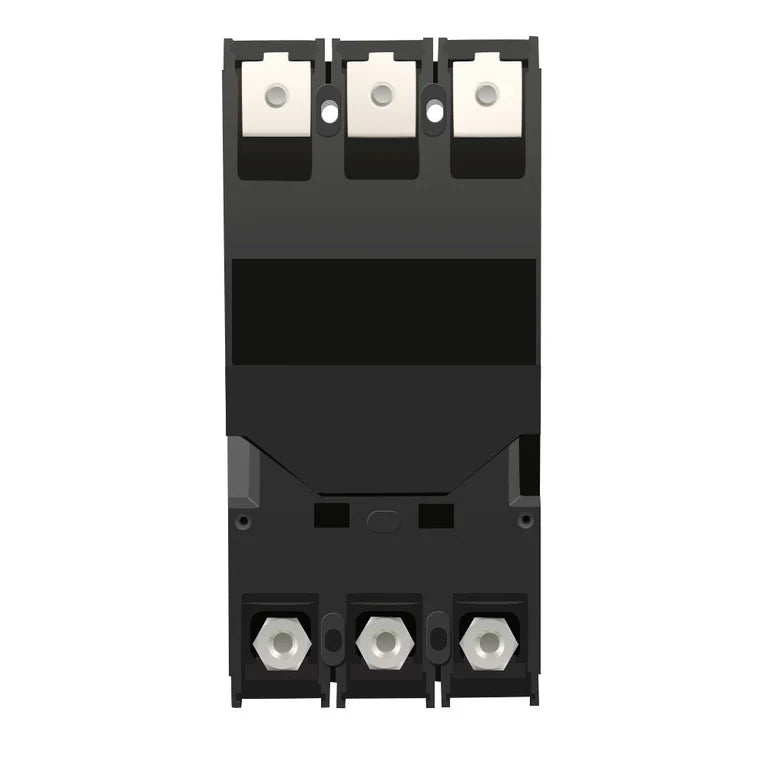

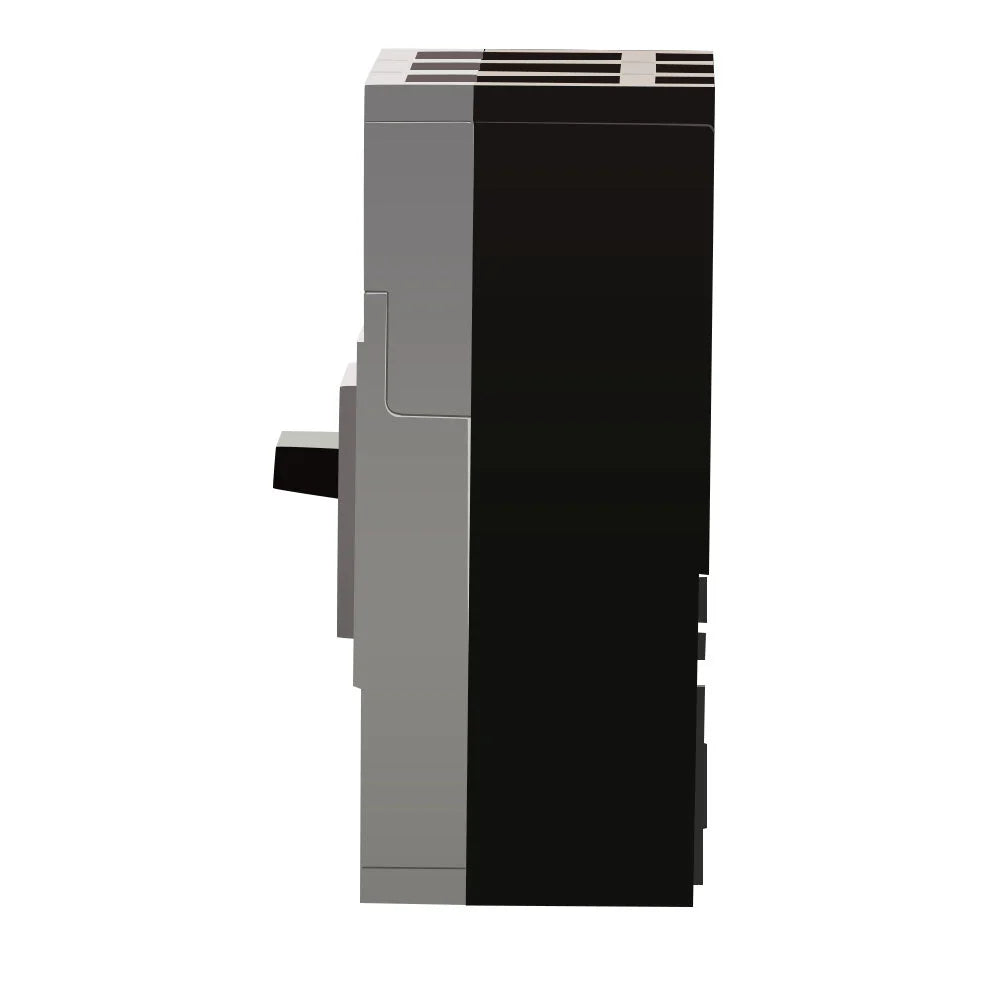

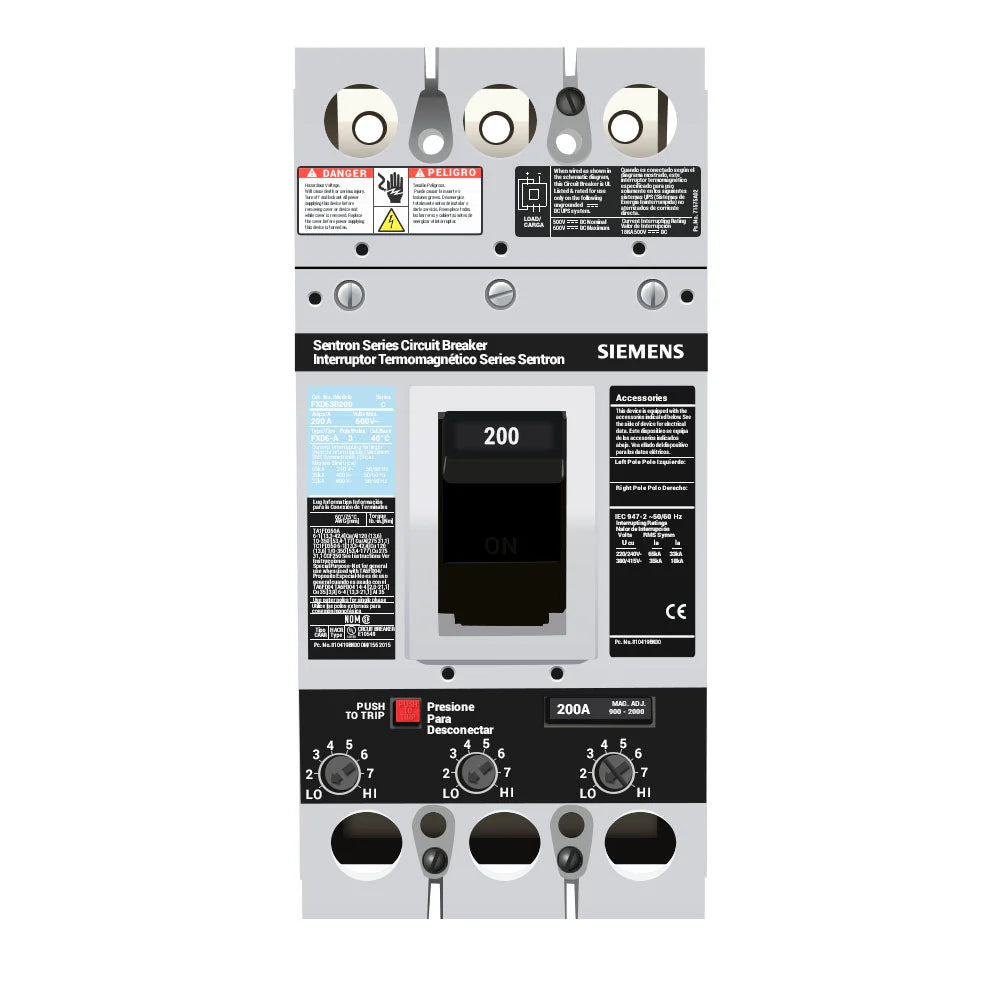

Siemens FXD63B200L Molded Case Circuit Breaker – 200A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – Sentron FXD Series

The Siemens FXD63B200L is a 200A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron Type FXD Series. It features thermal-magnetic protection with Long-Time and Instantaneous (LI) trip functions and a non-interchangeable trip.

The FXD63B200L is rated for 600V and provides a 35kA interrupting rating at 480V with standard interrupting capacity. It uses a bolt-on mounting configuration, is UL Listed for reverse-fed applications, and is supplied without lugs installed. The breaker is rated for operation at 40°C.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: FXD
• Type: FXD
• Catalog No.: FXD63B200L
• Current Rating: 200A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Interrupting Capacity: Standard
• Protection Type: Thermal-Magnetic
• Trip Functions: Long-Time and Instantaneous (LI)
• Trip Type: Non-Interchangeable
• Mounting Type: Bolt-On
• Breaker Configuration: Complete Breaker
• Lugs: No Lugs Installed
• Temperature Rating: 40°C
• Reverse Feed: UL Listed for Reverse-Fed Applications
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FXD63B200L
• Catalog Number: FXD63B200L
• Model: FXD63B200L
• Product Family: Siemens Sentron Circuit Breakers
• Series: FXD
• Type: FXD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 200A
• UPC:783643006003

Compatibility:

Designed for use with compatible Siemens Sentron FXD Series electrical distribution equipment that accepts FXD Series bolt-on molded case circuit breakers. The FXD63B200L provides 200A, 3-pole thermal-magnetic overcurrent protection for compatible 600V electrical distribution applications.

The breaker features a non-interchangeable trip with Long-Time and Instantaneous functions and is UL Listed for reverse-fed applications. No lugs are installed on the breaker. Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, trip requirements, lug selection, mounting arrangement, and installation requirements before installation.

Certifications:

• UL Listed for Reverse-Fed Applications
• Siemens Sentron FXD Series
• 200A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Interrupting Rating
• Standard Interrupting Capacity
• Thermal-Magnetic Protection
• Long-Time and Instantaneous (LI) Trip Functions
• Non-Interchangeable Trip
• Bolt-On Mounting
• No Lugs Installed
• 40°C Rated
