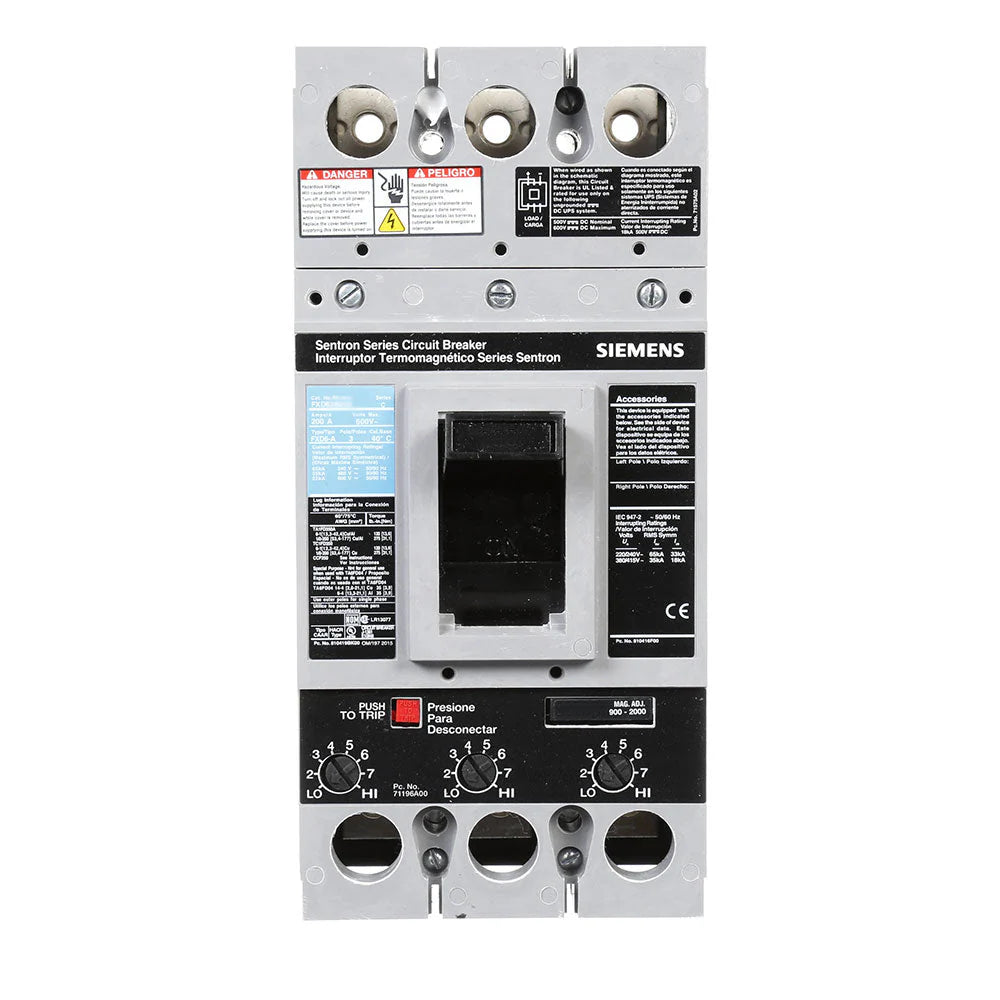

Siemens FXD63H150L 150 Amp Motor Circuit Protector – 3 Pole – 600 V – 35 kA@480 V – Bolt-On – SENTRON Series

The Siemens FXD63H150L is a 150 Amp, 3-pole motor circuit protector (MCP) from the Siemens SENTRON Series, Type FXD. Rated for 600 V, it provides a 35 kA interrupting rating at 480 V and features magnetic-only protection with instantaneous trip functionality. Designed for motor circuit protection applications, it has a high instantaneous trip range, a magnetic adjustment range of 1100–2500 A, and a bolt-on mounting configuration.

Specifications

• Manufacturer: Siemens
• Brand: Siemens
• Product Type: Motor Circuit Protector (MCP)
• Series: SENTRON
• Type: FXD
• Catalog Number / MPN: FXD63H150L
• Primary Rating: 150 Amp
• Poles / Configuration: 3 Pole
• Phase: 3 Phase
• Voltage: 600 V
• Interrupting Rating: 35 kA @ 480 V
• Interrupting Capacity: Standard
• Trip Type: Magnetic Only
• Trip Functions: I – Instantaneous Protection Only
• Instantaneous Trip Range: High
• Magnetic Range: 1100–2500 A
• Connection / Mounting: Bolt-On

Part Numbers & Identification

• Manufacturer: Siemens
• Brand: Siemens
• Catalog Number: FXD63H150L
• Series: SENTRON
• Type: FXD
• Current Rating: 150 A
• Pole Count: 3 Pole
• Product Type: Motor Circuit Protector (MCP)
• Trip Type: Magnetic Only
• Trip Functions: I – Instantaneous Protection Only
• Magnetic Range: 1100–2500 A
• Connection: Bolt-On
• UPC: 783643006188

Compatibility

The Siemens FXD63H150L is intended for compatible Siemens SENTRON Series Type FXD motor circuit protection applications.
