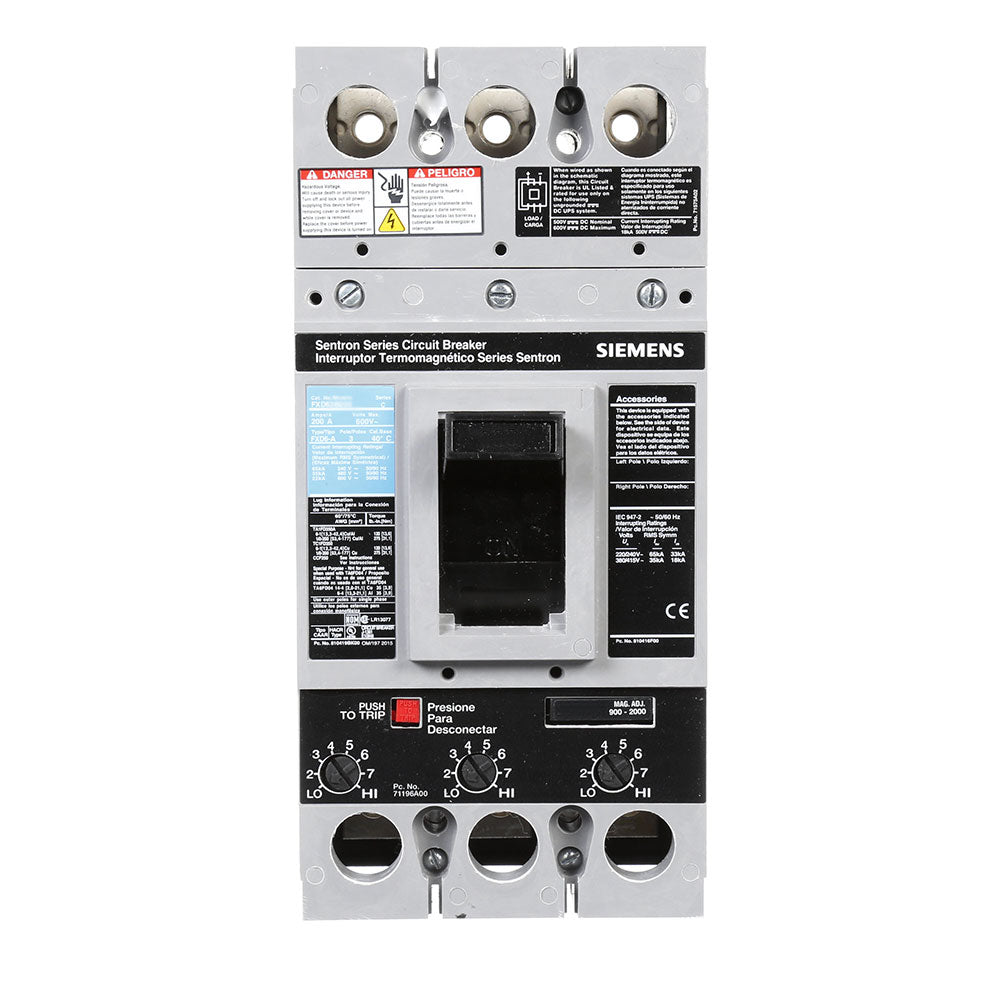

Siemens FXD63S250AL Molded Case Circuit Breaker – 250A – 3-Pole / 3-Phase – 600V – 35kA @ 480V – Bolt-On – Sentron FXD Series

The Siemens FXD63S250AL is a 250A, 3-pole, 3-phase molded case circuit breaker from the Siemens Sentron FXD Series. It is configured as a non-automatic switch with no overcurrent protection (NA).

The FXD63S250AL is rated for 600V and provides a 35kA interrupting rating at 480V. It uses a bolt-on connection, and lugs are not included.

Specifications:

• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker
• Product Family: Sentron
• Series: FXD
• Type: FXD
• Catalog No.: FXD63S250AL
• Current Rating: 250A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• Voltage Rating: 600V
• Interrupting Rating: 35kA @ 480V
• Protection Type: No Overcurrent Protection (NA)
• Switch Type: Non-Automatic Switch
• Connection / Mounting: Bolt-On
• Lugs: Not Included
• Application: Electrical Switching
• Brand: Siemens

Part Numbers & Identification:

• Manufacturer Part Number (MPN): FXD63S250AL
• Catalog Number: FXD63S250AL
• Model: FXD63S250AL
• Product Family: Siemens Sentron Circuit Breakers
• Series: FXD
• Type: FXD
• Brand: Siemens
• Manufacturer: Siemens
• Product Type: Molded Case Circuit Breaker / Non-Automatic Switch
• Breaker Configuration: 3-Pole, 250A
• Overcurrent Protection: None (NA)
• UPC:783643236103

Compatibility:

Designed for use with compatible Siemens Sentron FXD Series electrical distribution equipment that accepts FXD Series bolt-on molded case devices. The FXD63S250AL provides 250A, 3-pole switching for compatible 600V electrical distribution applications.

This device is identified as a non-automatic switch with no overcurrent protection and is supplied without lugs. Always verify the specific panelboard or electrical equipment model, approved device type, system voltage, pole configuration, available fault current, terminal requirements, and installation instructions before installation.

Certifications:

• Sentron FXD Series
• 250A Rated
• 3-Pole / 3-Phase
• 600V Rated
• 35kA @ 480V Rating
• Bolt-On Connection
• No Overcurrent Protection (NA)
• Non-Automatic Switch
• Lugs Not Included
