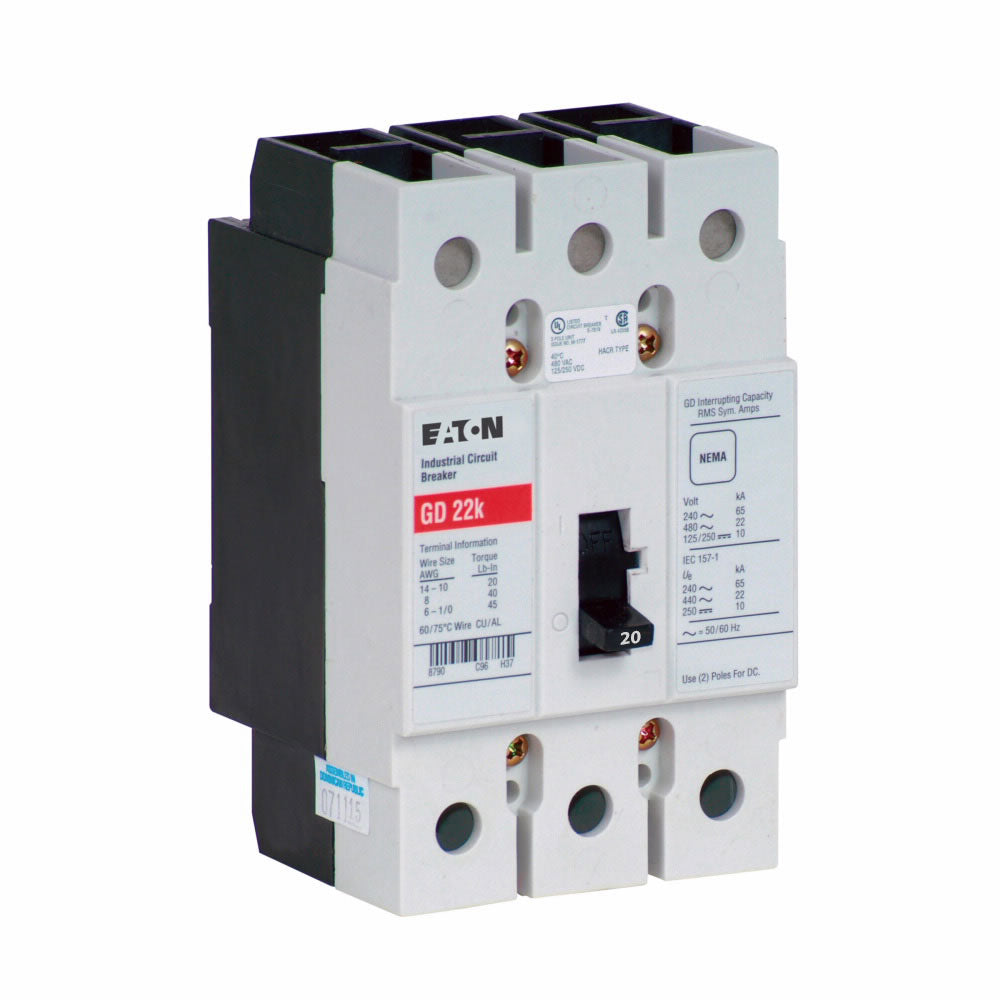

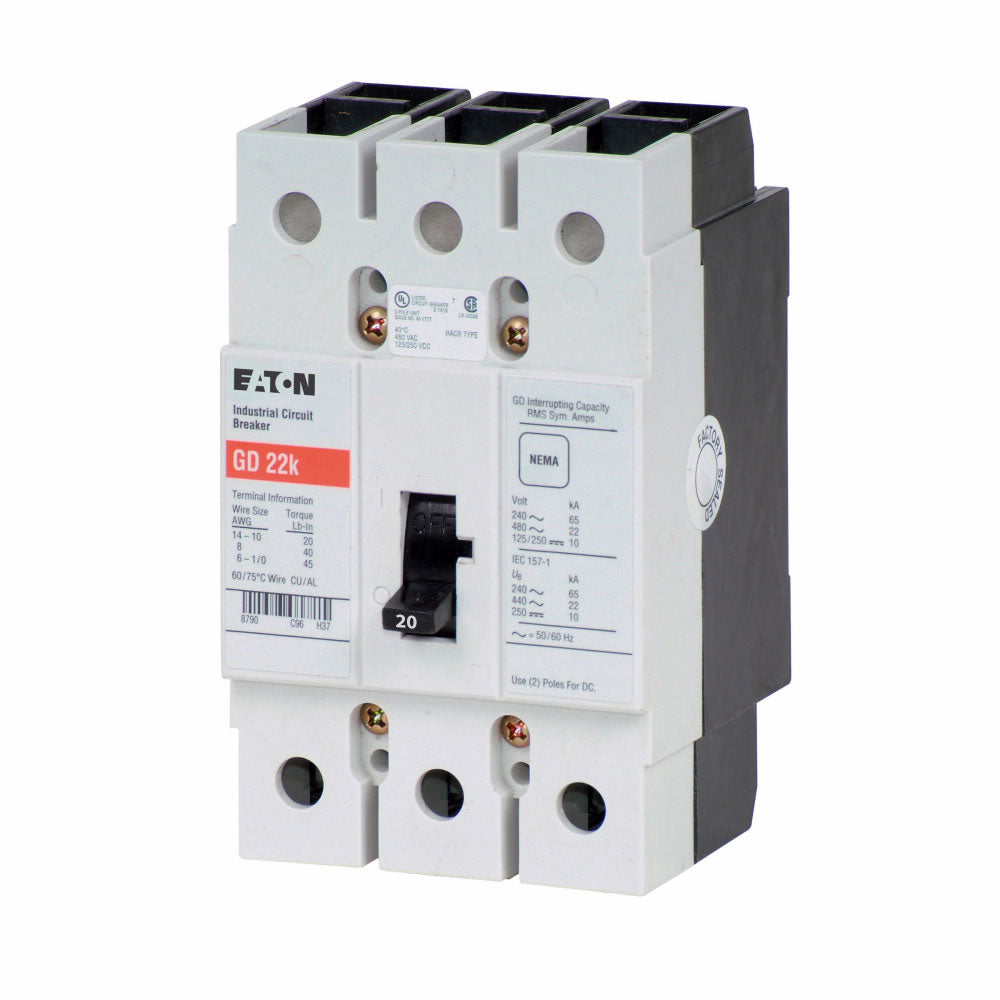

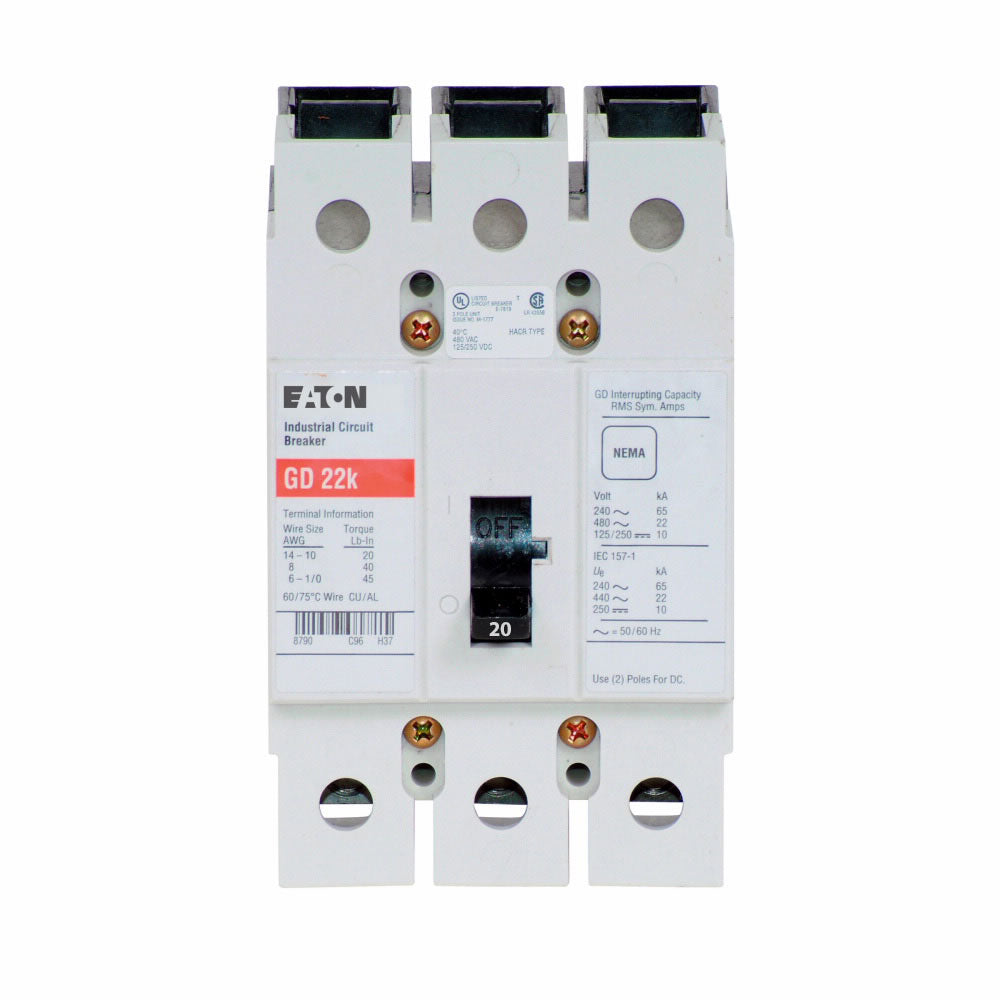

Eaton GD3020 Molded Case Circuit Breaker – 20A – 3-Pole – 480V AC – 65kAIC @ 240V – Series C GD

The Eaton GD3020 is a 20A, 3-pole complete molded case circuit breaker from the Eaton Series C G-Frame GD Series. It features fixed thermal and fixed magnetic trip protection and is designed for compatible electrical distribution applications.

The GD3020 is rated for 480V AC and 125/250V DC, with interrupting ratings of 65kAIC at 240V AC and 14kAIC at 480V AC. It operates at 50/60 Hz.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Name: Series C Complete Molded Case Circuit Breaker
• Series: Series C
• Type: GD
• Frame: G-Frame
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 480V AC
• DC Voltage Rating: 125/250V DC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Interrupting Rating: 65kAIC @ 240V AC; 14kAIC @ 480V AC
• Frequency: 50/60 Hz
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): GD3020
• Catalog Number: GD3020
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: Series C
• Type: GD
• Frame: G-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Model: GD3020
• Breaker Configuration: 3-Pole, 20A
• upc:786679231029

Compatibility:

Designed for use with compatible Eaton Series C G-Frame GD Series electrical distribution equipment that accepts GD Series molded case circuit breakers. The GD3020 is a 3-pole, 20A breaker with fixed thermal and magnetic protection for compatible 480V AC applications.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, and installation requirements before installation.

Certifications:

• Series C GD Series
• G-Frame
• 20A Rated
• 3-Pole / 3-Phase
• 480V AC Rated
• 125/250V DC Rated
• 65kAIC @ 240V AC Interrupting Rating
• 14kAIC @ 480V AC Interrupting Rating
• Fixed Thermal Protection
• Fixed Magnetic Protection
