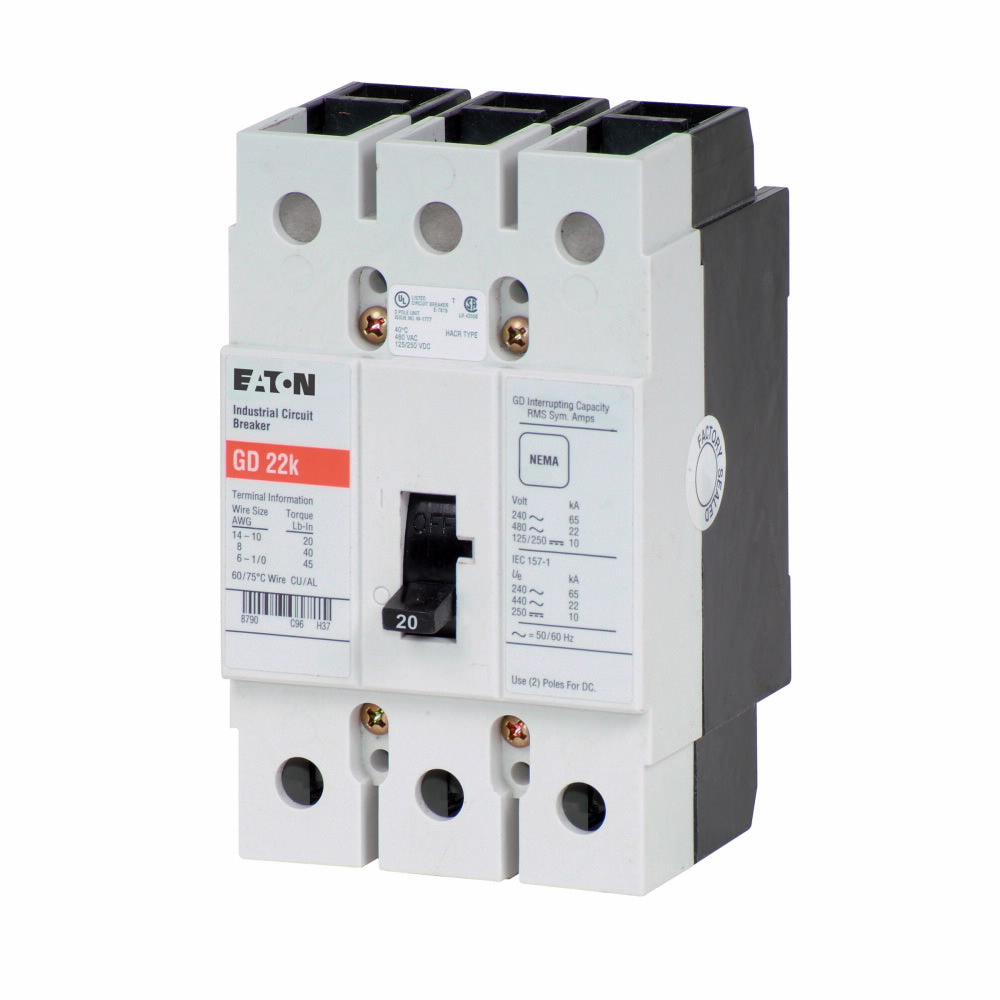

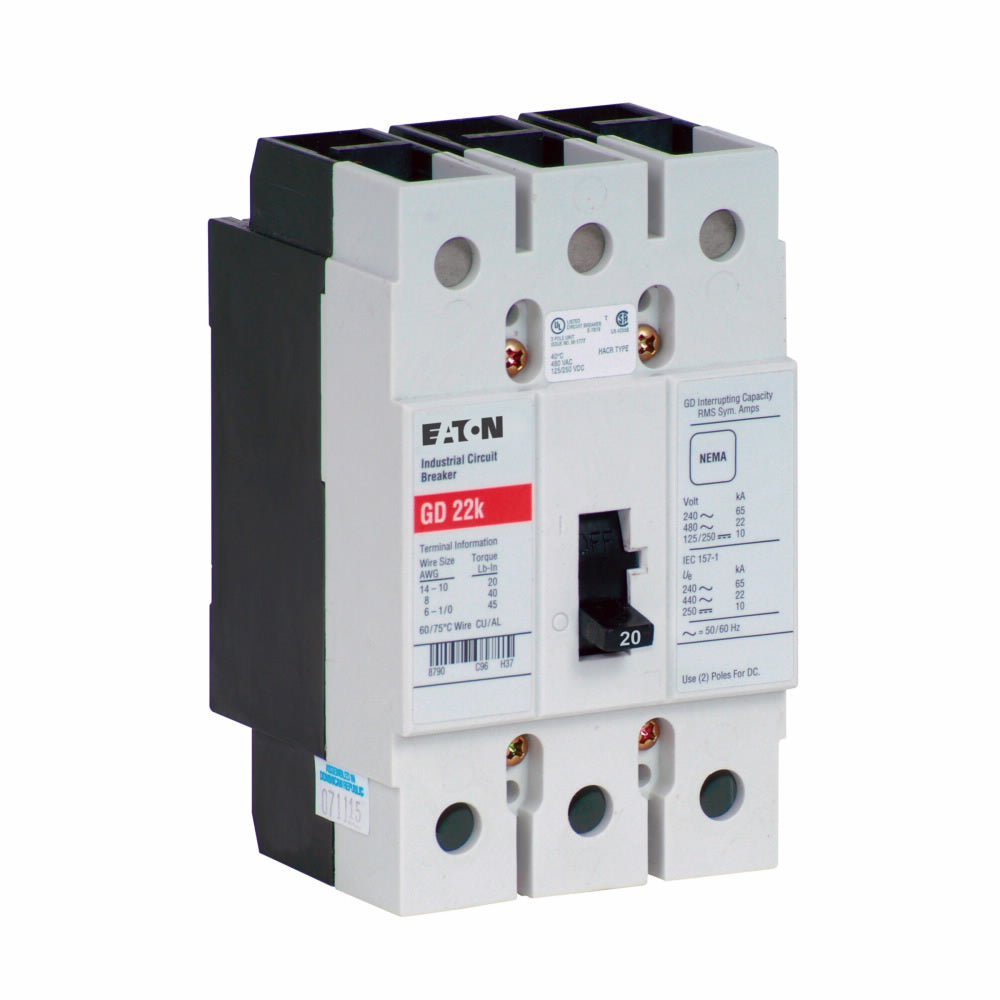

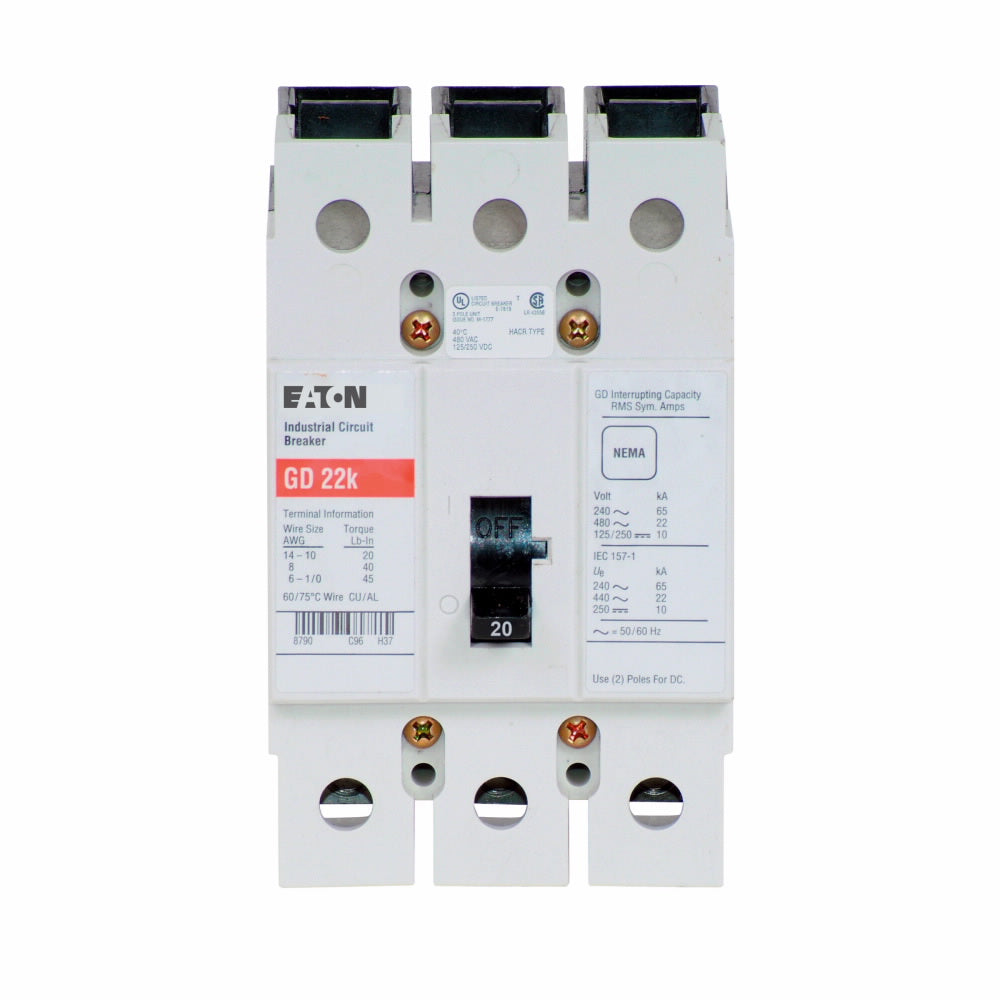

Eaton GD3020D Molded Case Circuit Breaker – 20A – 3-Pole – 480V AC – 65kA @ 240V / 14kA @ 480V – Line & Load – Series C GD

The Eaton GD3020D is a 20A, 3-pole molded case circuit breaker from the Eaton Series C G-Frame GD Series. It features fixed thermal and fixed magnetic trip protection and is designed for compatible electrical distribution applications.

The GD3020D is rated for 480V AC and 125/250V DC. It provides interrupting ratings of 65kAIC at 240V AC and 14kAIC at 480V AC. The breaker is configured for line-and-load connections and operates at 50/60Hz.

Specifications:

• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Product Name: Series C Complete Molded Case Circuit Breaker
• Product Family: Series C
• Series: GD
• Frame: G-Frame
• Catalog No.: GD3020D
• Current Rating: 20A
• Number of Poles: 3-Pole
• Phase: 3-Phase
• AC Voltage Rating: 480V AC
• DC Voltage Rating: 125/250V DC
• Trip Type: Fixed Thermal, Fixed Magnetic
• Protection Type: Thermal-Magnetic
• Interrupting Rating: 65kAIC @ 240V AC; 14kAIC @ 480V AC
• Connection: Line and Load
• Frequency: 50/60Hz
• Terminal Type: Ring Type
• Breaker Configuration: Complete Breaker
• Application: Electrical Distribution and Overcurrent Protection
• Brand: Eaton

Part Numbers & Identification:

• Manufacturer Part Number (MPN): GD3020D
• Catalog Number: GD3020D
• Model: GD3020D
• Product Family: Eaton Series C Molded Case Circuit Breakers
• Series: GD
• Frame: G-Frame
• Brand: Eaton
• Manufacturer: Eaton
• Product Type: Molded Case Circuit Breaker
• Breaker Configuration: 3-Pole, 20A
• UPC:782114345726

Compatibility:

Designed for use with compatible Eaton Series C G-Frame GD electrical distribution equipment that accepts GD Series molded case circuit breakers. The GD3020D provides 20A, 3-pole thermal-magnetic protection for compatible 480V AC and 125/250V DC applications.

Always verify the specific panelboard or electrical equipment model, approved breaker type, system voltage, available fault current, pole configuration, terminal arrangement, and installation requirements before installation.

Certifications:

• No specific certification information provided
