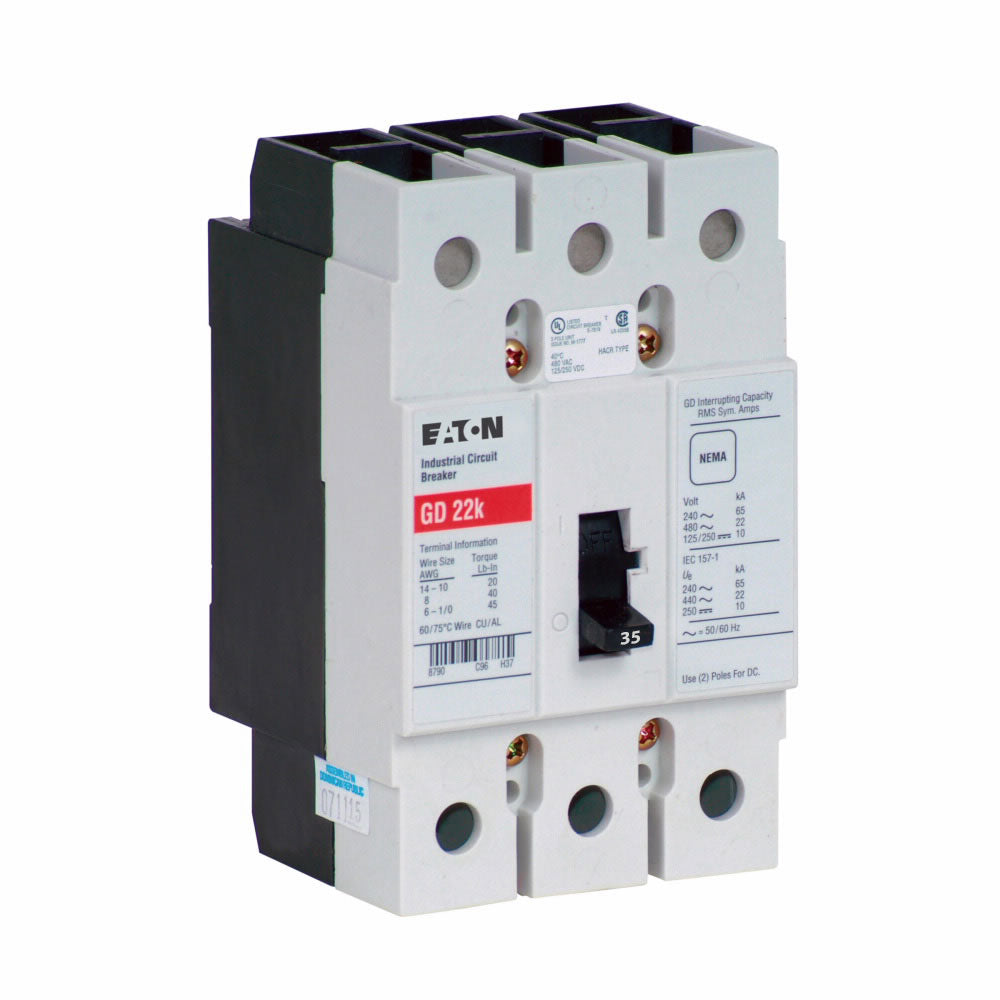

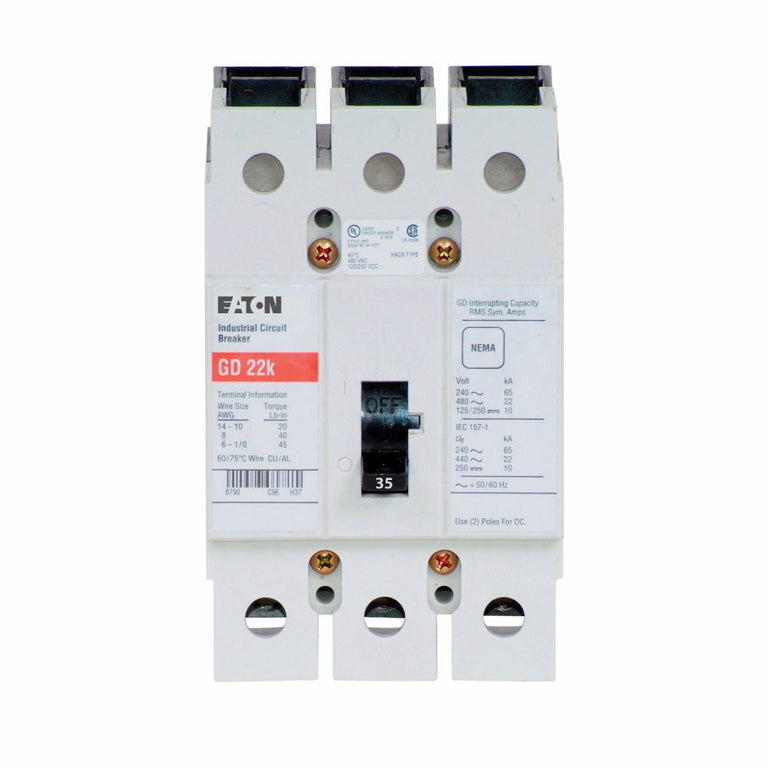

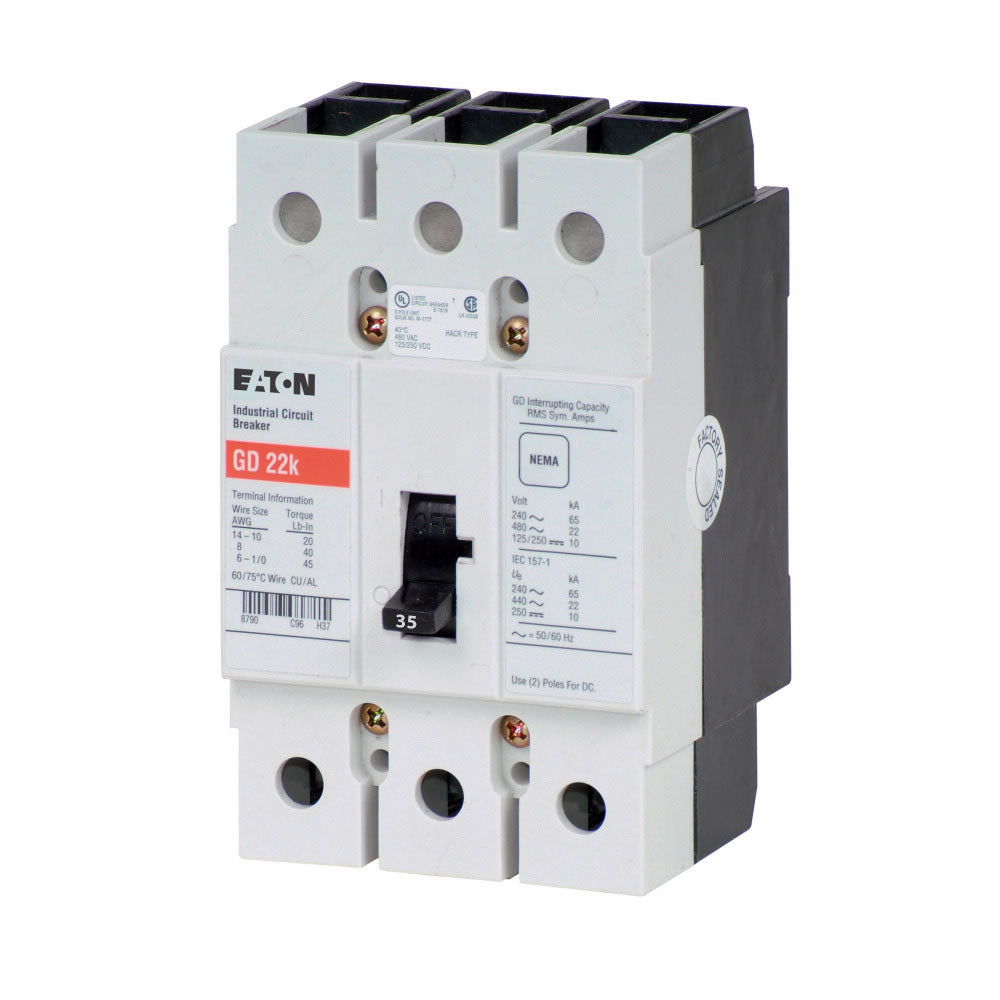

Eaton GD3035 35 Amp Molded Case Circuit Breaker – 3 Pole – 480 Vac – 65 kAIC@240 Vac – Series C

The Eaton GD3035 is a 35 Amp, 3-pole molded case circuit breaker from the Eaton Series C, G-frame, Type GD. It is rated for 480 Vac and 125/250 Vdc and features fixed thermal and fixed magnetic trip protection. The breaker provides a 65 kAIC interrupting rating at 240 Vac and 14 kAIC at 480 Vac and is suitable for 50/60 Hz applications.

Specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Molded Case Circuit Breaker
• Series: Series C
• Frame: G-Frame
• Type: GD
• Catalog Number / MPN: GD3035
• Primary Rating: 35 Amp
• Poles / Configuration: 3 Pole
• Voltage: 480 Vac
• DC Voltage: 125/250 Vdc
• Interrupting Rating: 65 kAIC @ 240 Vac
• Interrupting Rating: 14 kAIC @ 480 Vac
• Trip Type: Fixed Thermal / Fixed Magnetic
• Frequency: 50/60 Hz
• Connection / Mounting: Not specified

Part Numbers & Identification

• Manufacturer: Eaton
• Brand: Eaton
• Catalog Number: GD3035
• Series: Series C
• Frame: G-Frame
• Type: GD
• Current Rating: 35 A
• Pole Count: 3 Pole
• Product Type: Molded Case Circuit Breaker
• Trip Type: Fixed Thermal / Fixed Magnetic
• UPC:786679231081

Compatibility

The Eaton GD3035 is designed for compatible Eaton Series C G-frame, Type GD molded case circuit breaker applications. Verify the specific panelboard or switchboard, system voltage, mounting configuration, terminal requirements, and breaker compatibility before installation.
