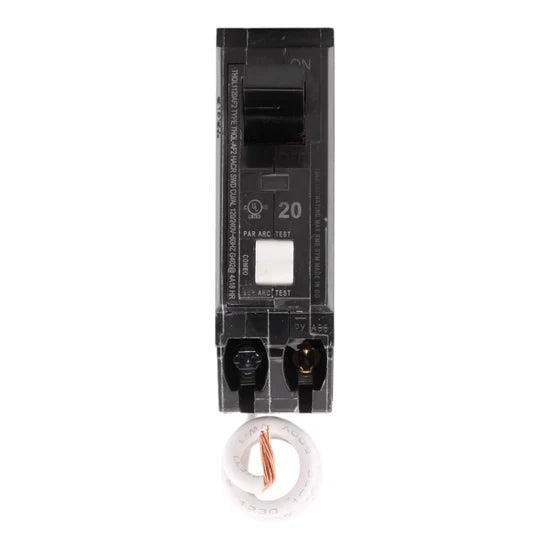

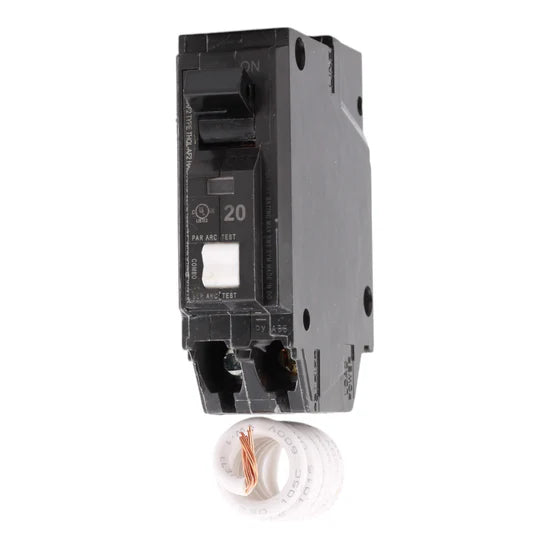

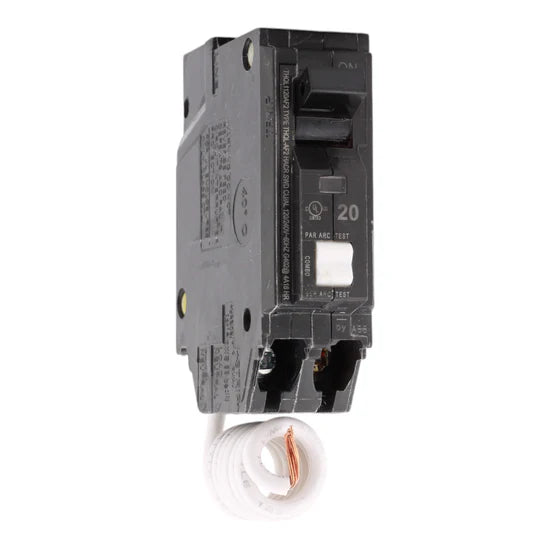

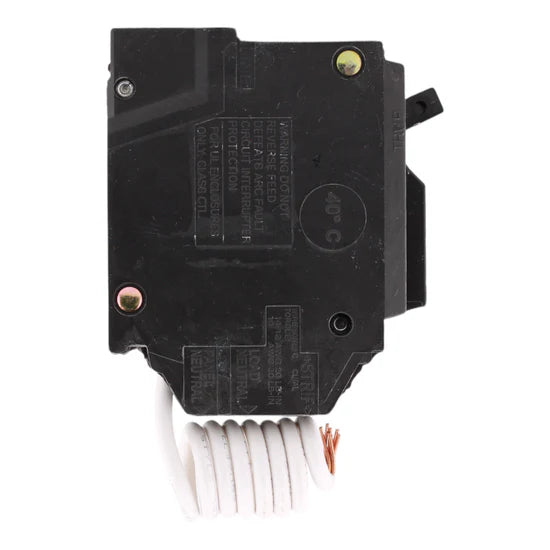

GE THQL1120AF2 Q Line Residential 20A Single-Pole Arc-Fault Circuit Breaker with Pigtail – 120V
Couldn't load pickup availability
Ask an expert
The GE THQL1120AF2 is a 20 amp, single-pole Arc-Fault Circuit Interrupter (AFCI) breaker designed for use in GE Q Line load centers. Built to enhance electrical safety, this breaker helps detect hazardous arc-fault conditions and disconnects power before they can develop into fire risks.
Equipped with a pigtail neutral connection, this unit allows secure neutral termination within the panel. It is suitable for both residential and light commercial branch circuits where AFCI protection is required.
Voltage and Ratings
- Current Rating: 20 Amps
- Voltage Rating: 120 Volts AC
- Interrupting Capacity: 10 kAIC
- Frequency: 50/60 Hz
Key Specifications
- Breaker Type: Arc-Fault Circuit Interrupter (AFCI)
- Poles: 1-Pole
- Series: Q Line
- Mounting Type: Plug-On
- Neutral Type: Pigtail Neutral
- Application: Branch circuit arc-fault protection
- Compatible Panels: GE Q Line load centers
Technical Specifications
- Wire Size Range: #14–8 AWG
- Terminal Tightening Torque: 20 lb-in
- Connection Type: Pigtail neutral lead
- Operating Mechanism: Thermal-magnetic with AFCI protection
- Interrupt Rating: 10 kAIC
- Dimensions:
- Height: 3.0 in
- Width: 1.0 in
- Depth: 4.5 in
- Weight: 0.48 lbs
- Certifications: UL Listed, CSA Certified, ANSI Certified
Product Data
- Manufacturer: GE
- Brand: GE
- Model Number: THQL1120AF2
- UPC: 783164652819
- Type Circuit Breakers
- Vendor GE
- Brand GE
