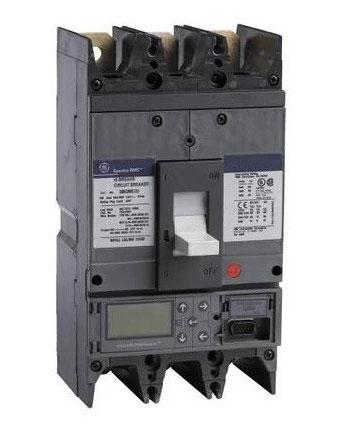

GE SGHC3604L4XX – 3‑Pole 400 A 600 V AC Molded Case Breaker, Spectra Series, Solid‑State, 35 kAIC @ 480 V

Product Description
The GE SGHC3604L4XX is a 3‑pole, 400 Amp, 600 V AC molded case circuit breaker from the Spectra Series, engineered for rugged industrial and commercial electrical distribution systems. This breaker features a solid‑state LSIG protection system with Long‑Time, Short‑Time, Instantaneous, and Ground Fault functions for comprehensive overcurrent and fault protection.

It offers robust interrupting capacity with a 35 kAIC rating @ 480 V AC, making it suitable for main or feeder protection in switchboards, motor control centers, and demanding power distribution environments. The SGHC3604L4XX is UL listed and built to meet rigorous safety and performance standards.

Key Features

• Poles: 3

• Amperage: 400 A

• Voltage: 600 V AC

• Type: Molded Case Breaker (Spectra Series)

• Solid‑state LSIG protection: Long‑Time, Short‑Time, Instantaneous, Ground Fault

• Interrupting capacity: 35 kAIC @ 480 V AC

• Bolt‑on mounting compatible

• UL and CSA certified for commercial/industrial electrical protection

Technical Specifications

• Manufacturer: General Electric (GE)

• Catalog Number: SGHC3604L4XX

• Series/Frame: Spectra Series (SG600 family)

• Phase: 3‑phase

• Trip Functions: LSIG solid‑state protection

• Mounting Type: Bolt‑on

• Frequency Rating: 50/60 Hz

• Terminal Connection: Front connection (lugs sold separately)

• Protection: Overload, short‑circuit, and ground fault

Product Data

• UPC / GTIN: 783164390322

• Provides reliable overload and fault protection in industrial and commercial electrical systems

• Compatible with GE Spectra switchboards, panelboards, and motor control centers

• Built to meet UL 489, CSA C22.2, and IEC 60947‑2 safety standards
