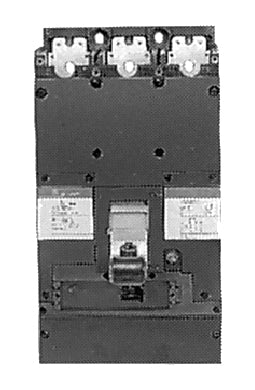

GE SKHHA36AT1000 3-Pole 1000A 600V Spectra RMS Molded Case Circuit Breaker – 50kA AIC

The GE SKHHA36AT1000 is a heavy-duty 3-pole, 1000 Amp, 600 Volt molded case circuit breaker from GE’s Spectra RMS™ series, engineered for high-capacity commercial and industrial power distribution systems. Designed to provide reliable protection against overloads and short-circuit conditions, this breaker features an advanced solid-state RMS trip unit for accurate current sensing and dependable performance in three-phase applications.

Built for durability and consistent operation, the SKHHA36AT1000 is ideal for use in switchgear, panelboards, and distribution equipment where high fault protection and system reliability are critical.

Key Features

• 1000 Amp current rating for large electrical loads

• 600V AC maximum voltage rating

• 3-pole configuration for three-phase power systems

• Spectra RMS™ solid-state trip unit with LSI protection

• High interrupting capacity for fault current protection

• Bolt-on mounting for secure installation

• Rugged molded case construction for industrial environments

• UL Listed for safety and compliance

Technical Specifications

• Manufacturer: General Electric (GE)

• Series: Spectra RMS™

• Catalog Number: SKHHA36AT1000

• Breaker Type: Molded Case Circuit Breaker

• Poles: 3

• Amperage Rating: 1000 A

• Voltage Rating: 600 V AC

• Phase: 3-Phase

• Trip Unit: Solid-State RMS (LSI)

• Interrupting Rating: 50 kA @ 480 V AC

• Mounting Type: Bolt-On

• Certifications: UL Listed
