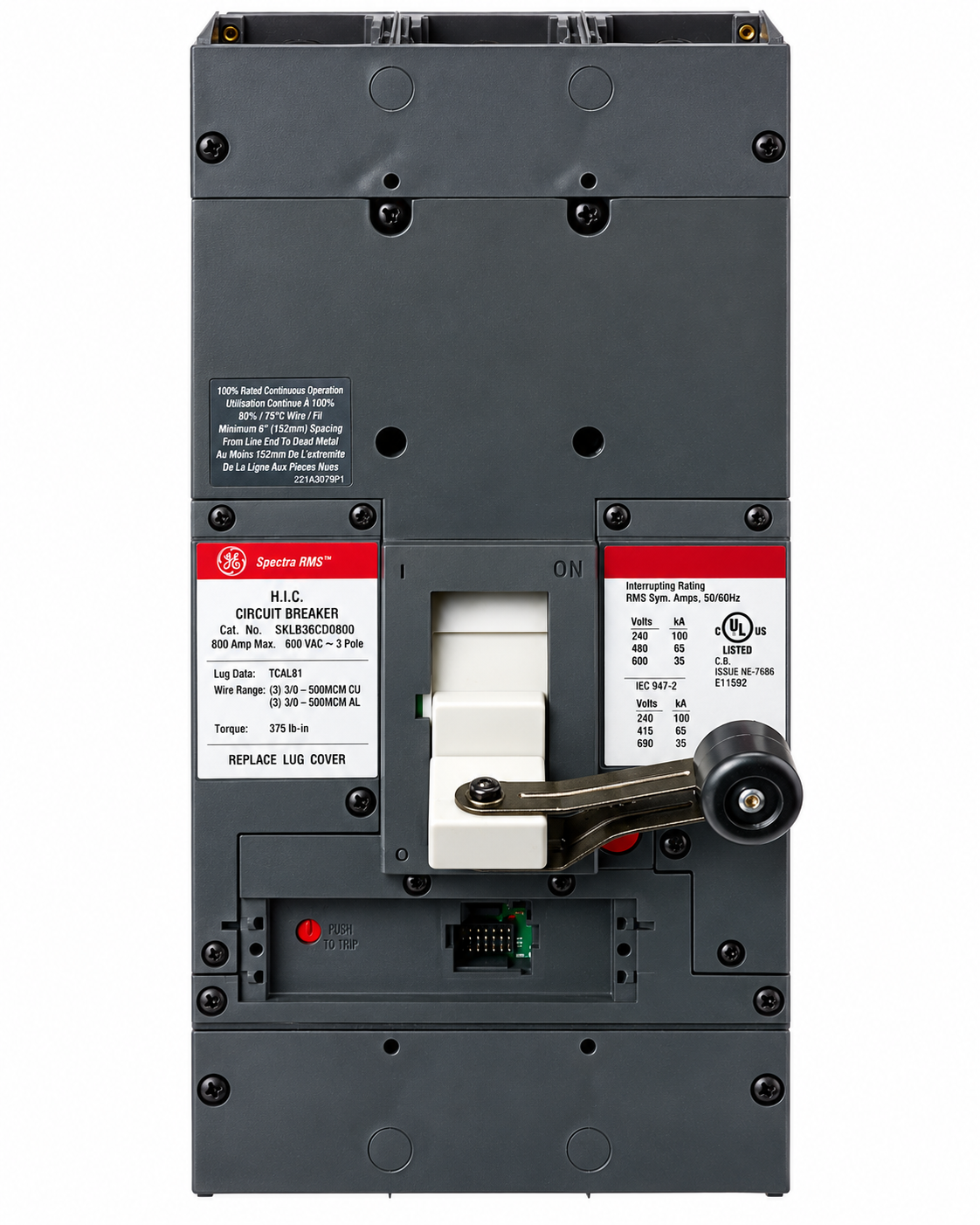

GE SKLB36CD0800 800A 3-Pole 600V 65kAIC Spectra RMS Circuit Breaker LSIGT

Product Description

The GE SKLB36CD0800 is a Spectra RMS SK1200 molded case circuit breaker rated at 800 amps, 3 poles, and 600VAC. This breaker features a MicroVersaTrip PM solid-state electronic trip unit with LSIGT protection.

The SKLB36CD0800 provides a 65kA interrupting rating at 480VAC and is designed for commercial and industrial electrical distribution applications.

Key Features

• GE / General Electric
• Spectra RMS Series
• SK1200 Frame
• 800 Amp
• 3-Pole
• 3-Phase
• 600VAC Maximum
• 65kAIC @ 480VAC
• MicroVersaTrip PM Electronic Trip Unit
• Solid-State Electronic Protection
• LSIGT Protection
• Long-Time Protection
• Short-Time Protection
• Instantaneous Protection
• Ground-Fault Protection
• Trip Targets
• Bolt-On Connection
• Standard 80% Rated
• Suitable for Reverse Feed Applications
• UL Listed
• CSA Listed
• Lugs Not Included

Technical Specifications

Manufacturer: GE / General Electric
Catalog Number: SKLB36CD0800
Product Type: Molded Case Circuit Breaker
Series: Spectra RMS
Frame: SK1200 / SKL
Amperage: 800A
Sensor Rating: 800A
Poles: 3
Phase: 3-Phase
Maximum Voltage: 600VAC
Interrupting Rating: 65kAIC @ 480VAC
Trip Unit: MicroVersaTrip PM
Trip Technology: Solid-State Electronic
Trip Functions: LSIGT
Long-Time Protection: Yes
Short-Time Protection: Yes
Instantaneous Protection: Yes
Ground-Fault Protection: Yes
Trip Targets: Yes
Connection: Bolt-On
Continuous Rating: 80%
Reverse Feed: Suitable for Reverse Feed
UL File: E-11592
CSA File: LR 40350
Lugs: Not Included

Product Data

Brand: GE / General Electric
Manufacturer: General Electric
Model: SKLB36CD0800
MPN: SKLB36CD0800
Catalog Number: SKLB36CD0800
Product Family: Spectra RMS
Frame Family: SK1200
Product Type: Molded Case Circuit Breaker
Amperage: 800A
Voltage: 600VAC
Poles: 3
Phase: 3-Phase
AIC Rating: 65kAIC @ 480VAC
Trip Unit: MicroVersaTrip PM
Trip Functions: LSIGT
Connection Type: Bolt-On
Terminal Lug Kit: TCAL81
Lug Wire Range: (3) 3/0–500 kcmil Cu or Al
Lugs Included: No
Approximate Weight: 57 lbs
