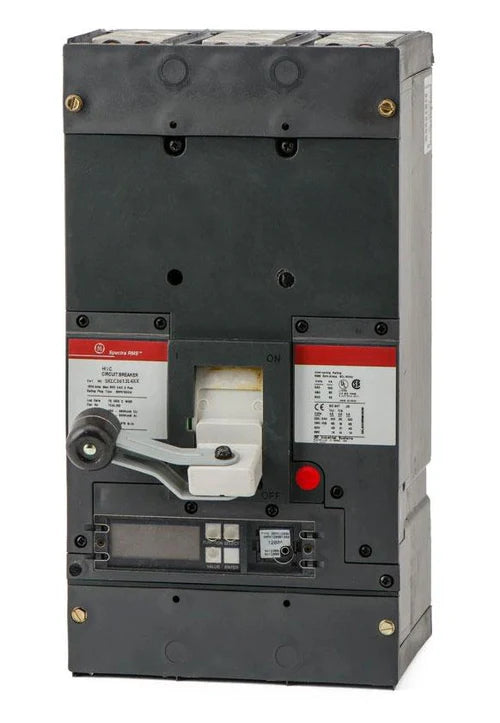

GE SKLB36CD1200 1200 Amp 3 Pole 65kA @ 480V Spectra RMS LSIG Molded Case Circuit Breaker 600V

Description

The GE SKLB36CD1200 is a 1200 Amp, 3 Pole, 600 Volt Spectra RMS molded case circuit breaker engineered for high-capacity commercial and industrial power distribution systems. This breaker features a MicroVersaTrip PM solid-state electronic trip unit with LSIG protection functions including Long-Time, Short-Time, Instantaneous, and Ground Fault protection.

Part of the GE Spectra RMS SK1200 series, the SKLB36CD1200 is designed for demanding applications requiring adjustable electronic protection, high interrupting capacity, and reliable performance in switchboards, panelboards, and industrial electrical distribution equipment.

Key Features

• Catalog Number: SKLB36CD1200
• 1200 Amp
• 3 Pole
• 600VAC
• Spectra RMS SK1200 Series
• MicroVersaTrip PM Electronic Trip Unit
• LSIG Protection Functions
• Long-Time, Short-Time, Instantaneous & Ground Fault Protection
• Solid State Electronic Protection
• Bolt-On Mounting
• Adjustable Trip Settings
• Reverse Feed Rated
• Interchangeable Rating Plug Design
• True RMS Sensing
• UL Listed
• Designed for Commercial & Industrial Distribution Systems

Interrupting Ratings

• 65kAIC @ 240VAC
• 50kAIC @ 480VAC
• 25kAIC @ 600VAC

Technical Specifications

• Brand: General Electric (GE)
• Series: Spectra RMS
• Frame Type: SK1200
• Catalog Number: SKLB36CD1200
• Amperage: 1200 Amp
• Poles: 3 Pole
• Voltage Rating: 600VAC
• Phase: 3 Phase
• Mounting Type: Bolt-On
• Trip Unit: MicroVersaTrip PM
• Trip Functions: LSIG
• Protection Type: Solid State Electronic
• Frequency: 50/60 Hz
• Reverse Feed Rated: Yes
• Wire Range: (4) 250–500 kcmil Cu/Al
• Application: Switchboards, Panelboards, Industrial Distribution Systems
• Certifications: UL Listed, CSA Certified

Product Data

• Manufacturer: General Electric (GE)
• Product Type: Molded Case Circuit Breaker
• Model: SKLB36CD1200
• Series: Spectra RMS SK1200
• Condition: New / Reconditioned Available
• GTIN:
