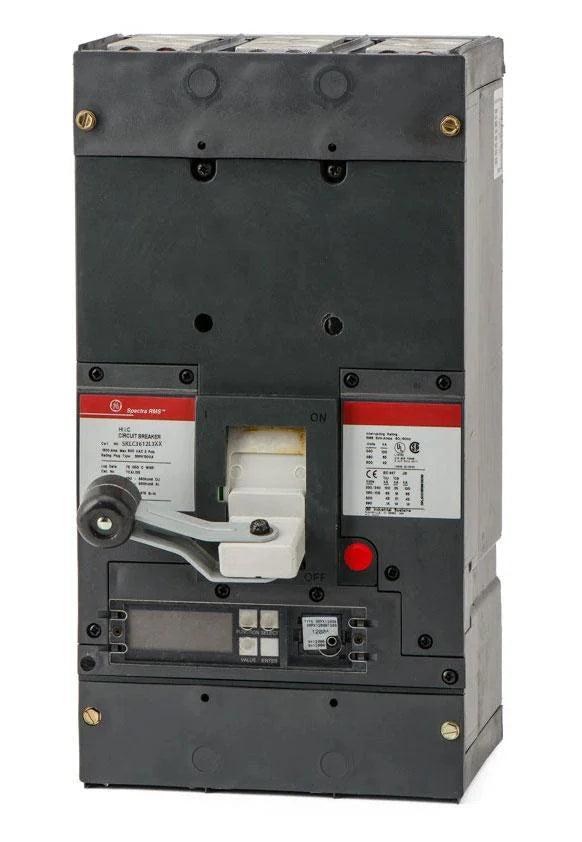

GE SKLC3612L3XX – 1200A 3-Pole 600V Spectra™ RMS Electronic Trip Molded Case Circuit Breaker | 65kA @ 480V

Product Description

The GE SKLC3612L3XX is a 3-pole, 600VAC Spectra™ RMS electronic trip molded case circuit breaker built on the SK1200 frame. It features a microEntelliGuard™ LSI (Long-Time, Short-Time, Instantaneous) electronic trip unit, providing adjustable overcurrent protection for commercial and industrial power distribution systems.

This breaker utilizes GE / ABB's interchangeable universal rating plug system, allowing the continuous current rating to be established by the installed rating plug.

Important: This breaker DOES NOT include a rating plug. A compatible GE / ABB SK1200 universal rating plug is required to establish the desired continuous current rating (up to 1200 Amps).

The SKLC3612L3XX is also interchangeable with the GE / ABB SKLC3608L3XX when the appropriate rating plug is installed, as both breakers utilize the same SK1200 frame and microEntelliGuard™ trip platform

Key Features

• Genuine GE / ABB Spectra™ RMS Molded Case Circuit Breaker
• Catalog Number: SKLC3612L3XX
• SK1200 Frame
• 3-Pole Configuration
• 600VAC Maximum Voltage
• microEntelliGuard™ Electronic Trip Unit
• Adjustable LSI Protection
• Universal Interchangeable Rating Plug Design
• 65kA Interrupting Rating @ 480VAC
• Solid-State Electronic Protection
• Suitable for Reverse Feed Applications
• Bolt-On Construction
• UL Listed and cUL Listed
• Interchangeable with GE / ABB SKLC3608L3XX
• Rating Plug NOT Included

Technical Specifications

Manufacturer: General Electric (GE) / ABB

Catalog Number: SKLC3612L3XX

Series: Spectra™ RMS

Product Line: Spectra™ RMS – microEntelliGuard™

Frame Type: SK1200

Breaker Type: Electronic Trip Molded Case Circuit Breaker

Trip Style: Interchangeable Universal Rating Plug

Poles: 3

Frame Rating: 1200A

Continuous Current Rating: Determined by the installed rating plug

Rating Plug: Not Included

Voltage Rating: 600VAC Maximum

Phase: 3 Phase

Frequency: 50/60 Hz

Interrupting Ratings:

• 100kA @ 120VAC
• 100kA @ 120/240VAC
• 100kA @ 240VAC
• 65kA @ 277VAC
• 65kA @ 480VAC
• 42kA @ 600VAC

Trip Unit: microEntelliGuard™

Trip Functions:

• Long-Time (L)
• Short-Time (S)
• Instantaneous (I)

Ground Fault Protection: No (LSI Model)

Long-Time: Adjustable

Short-Time: Adjustable or OFF

Instantaneous: Adjustable

Current Metering: Yes

Protection Type: Solid State Electronic

Connection Type: Bolt-On

Suitable for Reverse Feed: Yes

Mounting: Fixed Mounted

Standards: UL Listed, cUL Listed

UPC / GTIN: 783164379433

Approximate Weight: 57 lbs

Compatible Equipment

Compatible with GE / ABB Spectra™ distribution equipment utilizing the SK1200 frame, including:

• GE Spectra™ Switchboards
• GE Spectra™ Power Panelboards
• GE Low Voltage Distribution Equipment designed for SK1200 frame breakers

Always verify frame size, trip unit configuration, and rating plug requirements before installation.

Product Data

Brand: General Electric (GE) / ABB

Model: SKLC3612L3XX

UPC / GTIN: 783164379433
