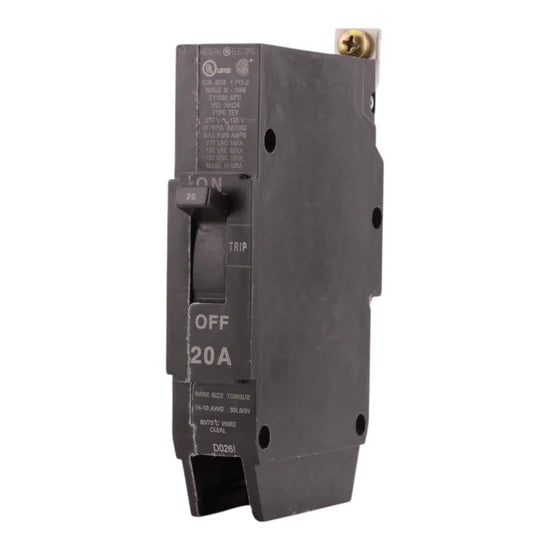

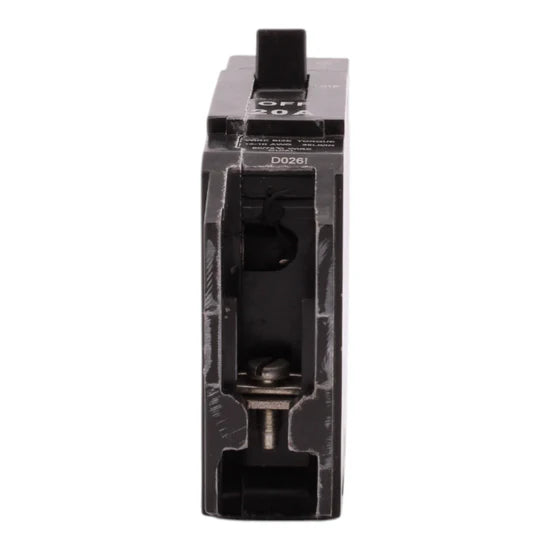

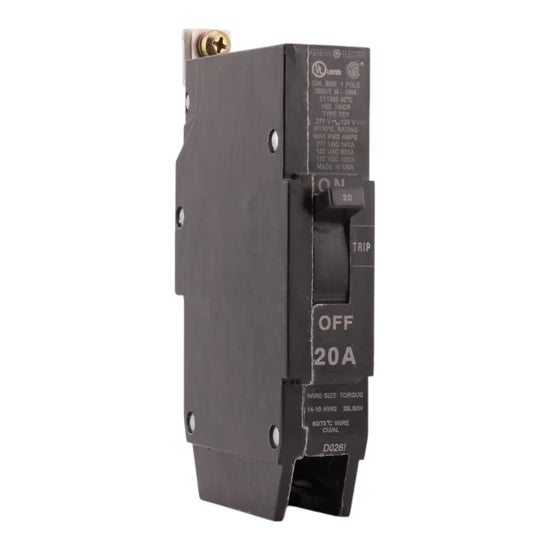

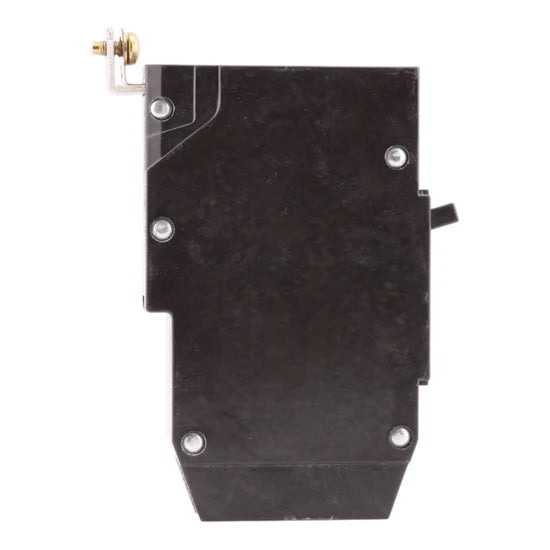

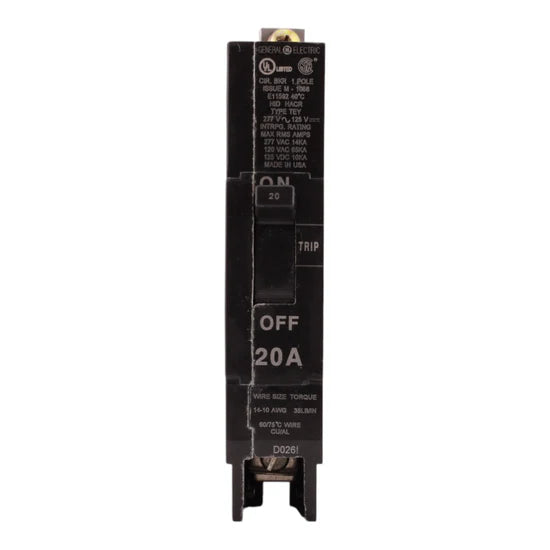

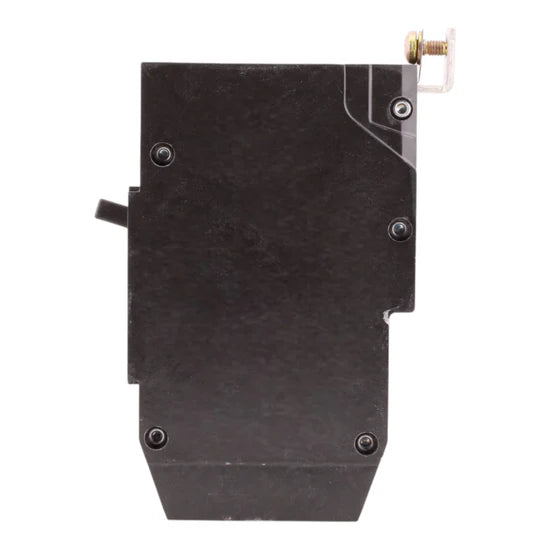

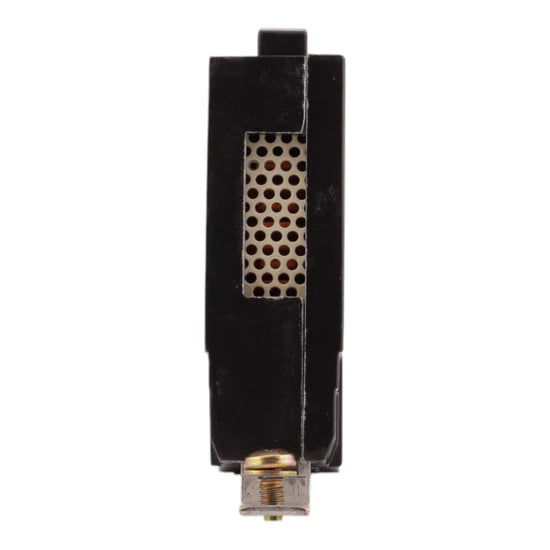

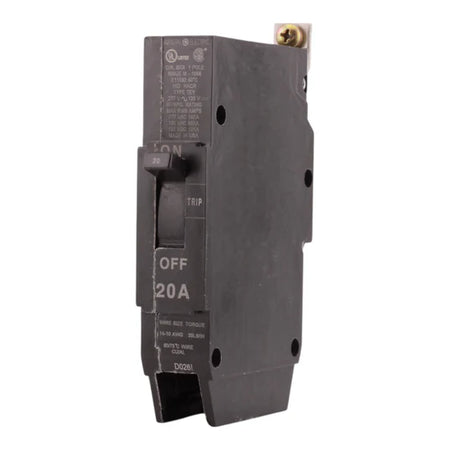

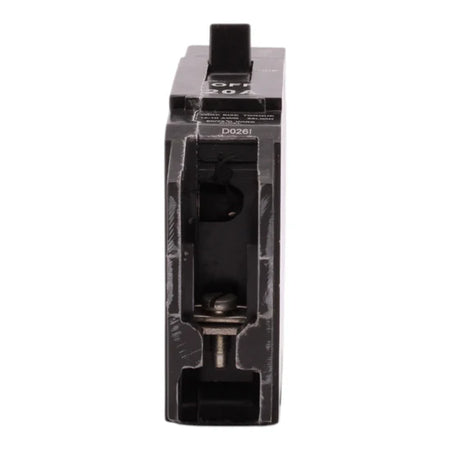

GE TEY120 20A 1-Pole Molded Case Circuit Breaker – Bolt-On – 120/277V

The GE TEY120 bolt-on circuit breaker provides dependable 20A, 1-pole protection for 120/277V circuits. Designed for GE lighting panels and Q-Line equipment, this breaker features high interrupt ratings for enhanced safety in commercial and industrial electrical systems.

Voltage and Rating

• Amperage: 20 Amps
• Poles: 1-Pole
• Voltage Rating: 120/277 Volts AC
• Interrupting Capacity: 65 kAIC at 120V; 14 kAIC at 277V

Key Specifications

• Breaker Type: Molded Case Circuit Breaker
• Mounting Type: Bolt-On
• Product Range: TEY / Q-Line
• Application: Commercial and industrial branch circuit protection
• Compatible Panels: GE lighting panels and Q-Line equipment

Technical Specifications

• Wire Size Range:
• Copper: #14–8 AWG
• Aluminum: #12–8 AWG
• Connection Terminals: Lug-Lug
• Certifications: UL Listed, CSA Certified, HACR Rated, HID Rated

Product Data

• Manufacturer: ABB
• Brand: GE
• Model Number: TEY120
• UPC: 783164180916

Dimensions

• • Height: 3.25 in
  • Width: 1.0 in
  • Depth: 3.0 in
  • Weight: 0.551 lbs
